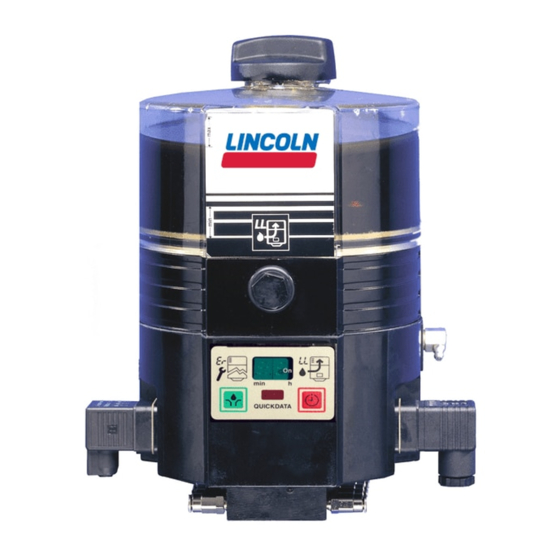

Lubrication system for oil with integrated timer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QLS 311

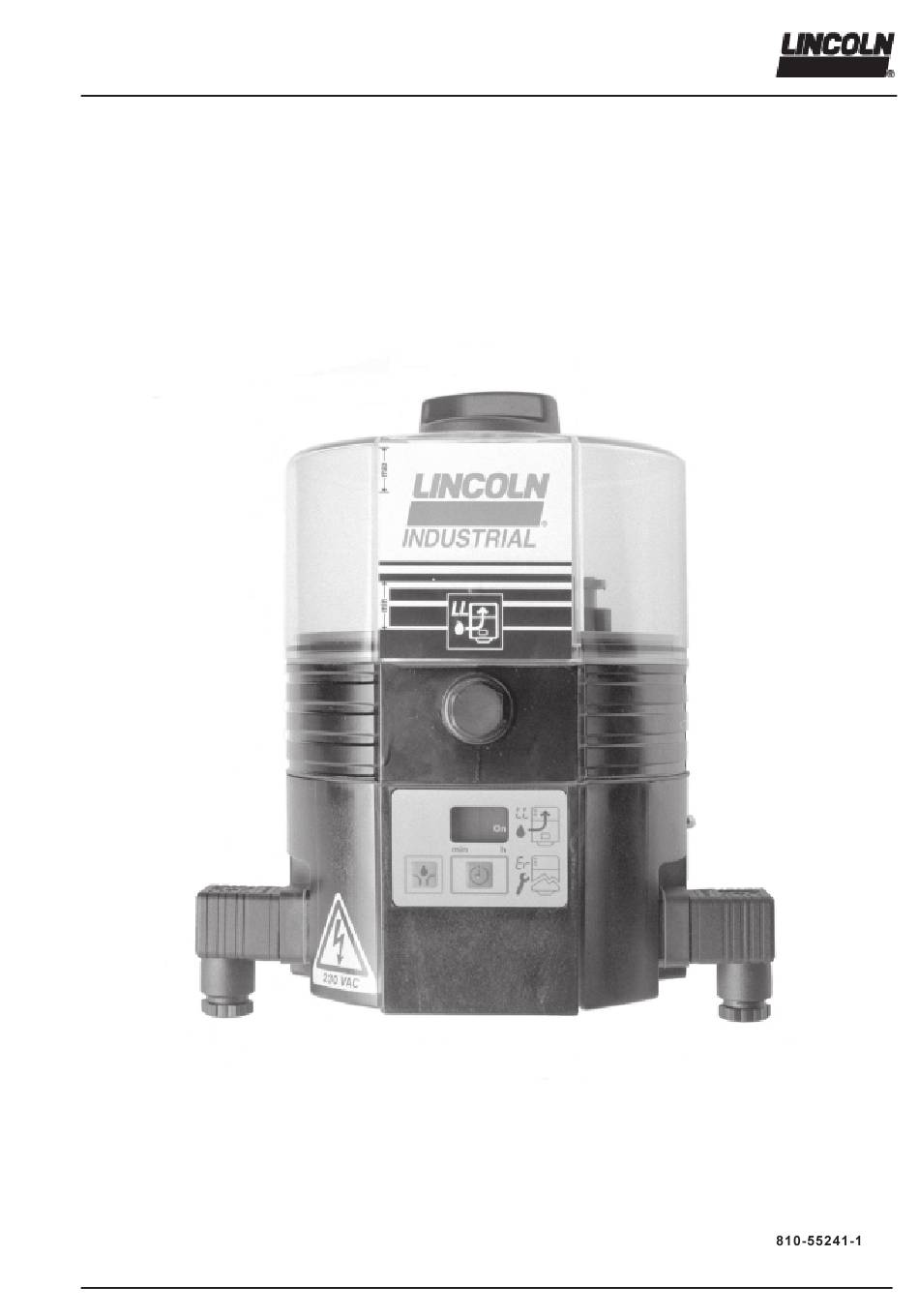

Installation and Operation Instructions
QLS 311 Lubrication System for Oil
with integrated timer
4252a00
- Q3
- 15A
2.1A-38008-A01
March 2001
Form 403074
Section
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QLS 311 and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln QLS 311

Summary of Contents for Lincoln QLS 311

  • Page 1 QLS 311 Installation and Operation Instructions QLS 311 Lubrication System for Oil with integrated timer 4252a00 - Q3 - 15A 2.1A-38008-A01 March 2001 Form 403074 Section Page...
  • Page 2 QLS 311 Installation and Operation Instructions Table of Contents • Safety Instructions...

  • Page 3: Installation Instructions

    QLS 311 Installation and Operation Instructions Installation Instructions Pump SSV Divider Block 1014b00 1..6 Outlet numbers C - Oil included A - Clamping ring (brass) R - Return B - Oil supply 4163a98...
  • Page 4 QLS 311 Installation and Operation Instructions 4180a99 4188b99 bottom mounted divider blocks, external 4200a99 4201a99...

  • Page 5: Connection Of Feed Lines

    QLS 311 Installation and Operation Instructions 4202a99 Connection of Feed Lines 4203a99 4157a98 4263a00...
  • Page 6 For external divider block application only use the specific divider blocks SSV ... KNQLS. Note: Do not use QLS 311 with SSV 8 bottom mounted only for mobile applications. Don’t install the pump in areas exposed to shock. Inch Size Kits: Metric Size Kits: SSV 6/8 part no.
  • Page 7 QLS 311 Installation and Operation Instructions Electrical Connecting Diagrams 4253a00 4258a00...
  • Page 8 QLS 311 Installation and Operation Instructions 4254a00 4260a00...
  • Page 9 QLS 311 Installation and Operation Instructions Description of QLS 311 4255a00 4256a00 Operation of QLS 311 4205a99...
  • Page 10 QLS 311 Installation and Operation Instructions 4304a00 4208a999 4209a99 4222a99 4210a99...
  • Page 11 QLS 311 Installation and Operation Instructions 4228a99 Acknowledging the malfunction 4214a99 4211a99 Acknowledging the low level indication Malfunction/low level indication 4213a99 Monitoring relay...

  • Page 12: Display Mode

    QLS 311 Installation and Operation Instructions Setting and operation of the QLS 311 Display mode 4206a99 *EP* 4207a99 4227a99 4208a99 4209a99 4210a99 4211a99 4214a99 4212a99 4213a99...

  • Page 13: Operating Mode

    QLS 311 Installation and Operation Instructions Operating mode 4208a99 ³ 4222a99 4209a99 4208a99 twice ³ 4223a99 4214a99 PP = 12h 30min rP = 5 h 10 min 4216a99 4220a99 4224a99 4225a99 4216a99 4208a99...

  • Page 14: Programming Mode

    QLS 311 Installation and Operation Instructions Programming mode 4222a99 4214a99 4215a99 ³ 4222a99 4216a99 4214a99 4217a99 4222a99 4220a99 4214a99 4218a99 4222a99 4219a99 4214a99 4221a99 4222a99 4208a99...
  • Page 15 QLS 311 Installation and Operation Instructions Maintenance, Repair and Tests Maintenance 4262a00 Repair Functional Test 4222a99...

  • Page 16: Troubleshooting

    QLS 311 Installation and Operation Instructions Troubleshooting 4209a99...
  • Page 17 QLS 311 Installation and Operation Instructions Troubleshooting, Continuation 4232a99...
  • Page 18 QLS 311 Installation and Operation Instructions...

  • Page 19: Technical Data

    QLS 311 Installation and Operation Instructions Technical Data Steel tube (dia. 6x1.0 mm; 1/4 in.) Plastic tube (dia. 6x1.5 mm; 1/4 in.) Pump Divider block, accessories...
  • Page 20 QLS 311 Installation and Operation Instructions Dimensions 4249a00 2012b95 4233a99...
  • Page 21 QLS 311 Installation and Operation Instructions Optional for metric fittings (not provided in the accessory kits) 4239a99 1009a98 4156a98 Fitting the threaded sleeves and hose studs on the high-pressure plastic hose 1028a96...
  • Page 22 QLS 311 Installation and Operation Instructions Service Parts for the QLS 311 4250a00...

  • Page 23: Parts List

    QLS 311 Installation and Operation Instructions Parts list...
  • Page 24 QLS 311 Installation and Operation Instructions 4251a00...
  • Page 25 QLS 311 Installation and Operation Instructions...
  • Page 26 Declaration of conformity according to EMV machinery directive 89/392/EEC Annex II A directive 89/336 EWG QLS 311 lubrication system Centralized Lubrication System QLS 311 Standard for Safety/Industrial Con- trol Equipment for US and Canada Walldorf, 9. 03. 2001 , Dr. Ing. Z. Paluncic...
  • Page 27 QLS 311 Installation and Operation Instructions To request a copy in Spanish Americas: Europe/Africa: Lincoln Industrial Lincoln GmbH One Lincoln Way Marketing Services St.Louis,MO 63120 Heinrich -Hertz Strasse 2-8 United States: 1-314-679-4200 Germany: 49-6227-330 FAX:1-314-679-4359 Fax:49-6227-33--259 Yes, please send me the Spanish version...
  • Page 28 QLS 311 Installation and Operation Instructions To request a copy in French Americas: Europe/Africa: Lincoln Industrial Lincoln GmbH One Lincoln Way Marketing Services St.Louis,MO 63120 Heinrich - Hertz Strasse 2- 8 United States: 1- 314- 679- 4200 Germany: 49- 6227-330...
