Dynabrade Dynaline 57405 Quick Start Manual

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
57400 - Non-Vac
57401 - Vac-Ready
57402 - Basic Vac
57403 - Deluxe Vac
57404 - Central Vac-Ready
57405 - Versatility Kit
57407 - Non-Vac, w/clips

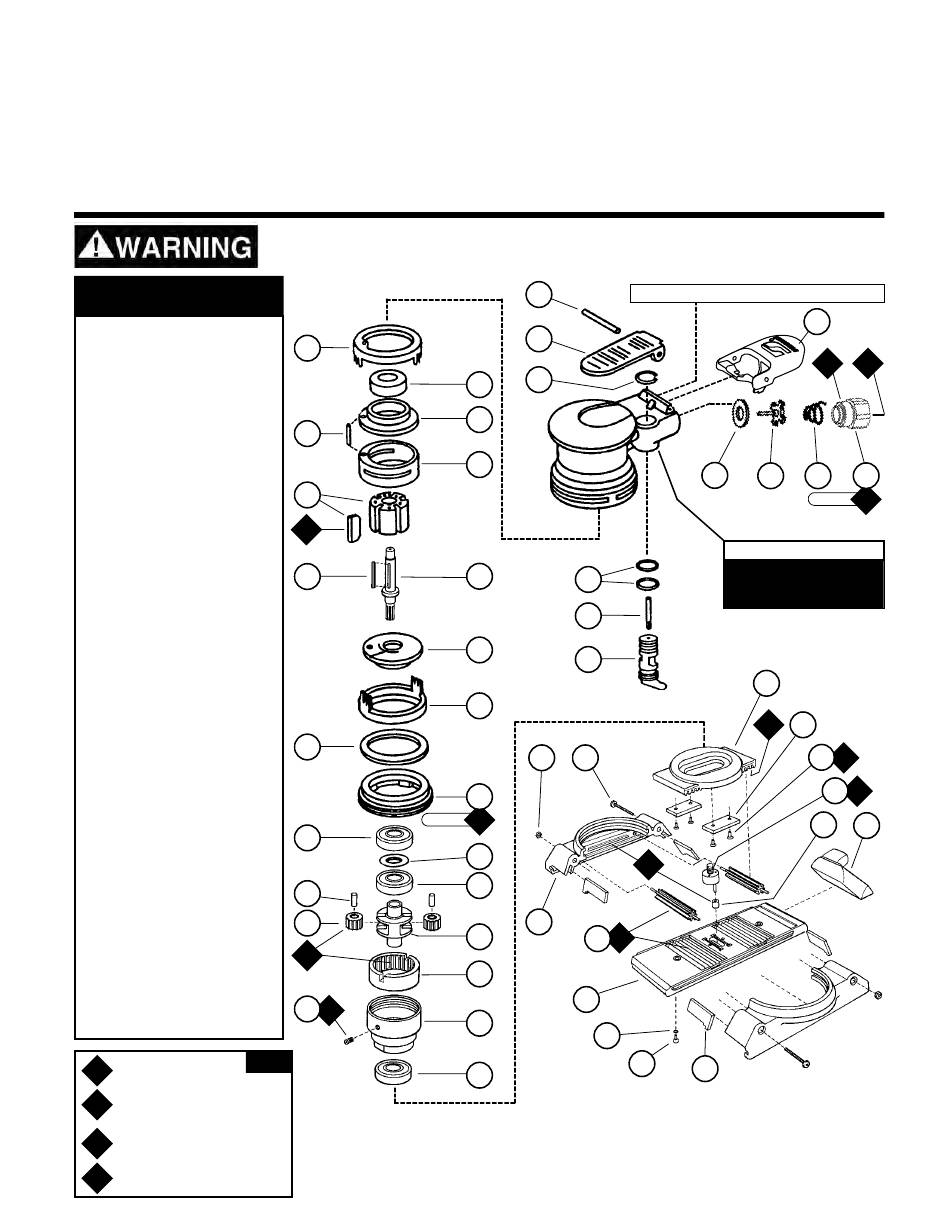

Index Key
No. Part # Description
1 57429 Felt Seal (4)
2 95885 Screw (2)
3 01211 Lock Washer (2)
4 Slide Board
57433 Non-Vacuum
57432 Vacuum
5 57431 Transfer Pinion (2)
6 57427
Slider Housing Assembly (2)
(Incl. 57429 Felt Seal)
7 95641 Nut (2)
8 95642 Screw (2)
9 57434 Vac Adapter (Vac Only)
10 57445 Needle Bearing
11 57430 Cam Assembly
12 * 96027 Screw (4)
13 * 57439 Rail (2)
14 * 57438 Counter Weight
15 01139 Bearing (3)
16 95593 Set Screw
17 54467 Retaining Ring
18 54468 Ring Gear
19 54465 Planetary Carrier
20 06213 Gears (2)
21 54475 Shaft (2)
22 07146 Packing
23 57059 Lock Ring
24 95973 Washer
25 57055 Front Ring
26 57437 Front Bearing Plate
27 56047 Rotor Key
28 54470 Rotor Pinion
29 57113 Rotor/Blade Set
30 57058 Cylinder Assembly
(Incl. 95971 Line-Up Pin)
31 95971 Line-Up Pin
32 57056 Rear Bearing Plate
33 01206 Bearing
34 57054 Rear Ring
35 94590 Pin
36 57041 Comfort Platform
37 57441 Lever
38 95697 Retaining Ring
39 01025 O-Ring (2)
40 01477 Valve Stem
41 57064 Speed Regulator or
57053 Recessed Speed Reg.
42 01464 Seal
43 01472 Tip Valve
44 01468 Spring
45 01494 Inlet Bushing
KEY
Oil: O = Air Lube
O
1
A Adhesive: A = Loctite #271
2
A = Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
Grease: G = Lubriplate 630AA
G
1
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
34
31
29
O
1
27
24
28 N•m
15
21
20
G
1
16 A
8
Note: To order replacement parts specify the model and serial number of your machine.

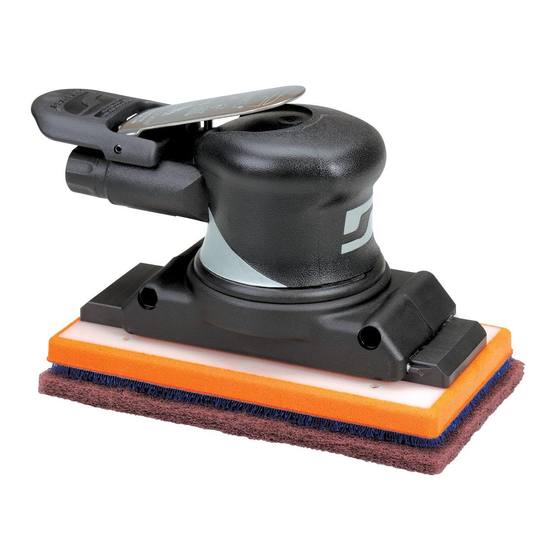

Dynaline Sander
For Serial Number 5I3366 and Higher
Palm-Style, Air Powered, 2,400 SPM
See page 2. for Machine Exhaust Assemblies.
35
37
38
33
32
30
28
39
40
26
41
25
7 8
23
T
22
G
15
6
G
19
5
1
18
4
17
3
2
15
Parts Page Reorder No. PD10•24
Effective May, 2010
Supersedes PD01•78
36
A
8
42 43 44
23 N•m
Housing & Models Used On.
57442 — Non-Vacuum
57443 — Self-Generated Vac
57444 — Central-Vac
* Parts included in
57438 Counter
14*
Weight Assembly.
G
13*
1
12*
11
10
1
1
O
1
45
T
A
2
A
2
9
