Models:
57400 - Non-Vac
57401 - Vac-Ready
57402 - Basic Vac
57403 - Deluxe Vac
57404 - Central Vac-Ready
57407 - Non-Vac, w/clips
WARNING
!

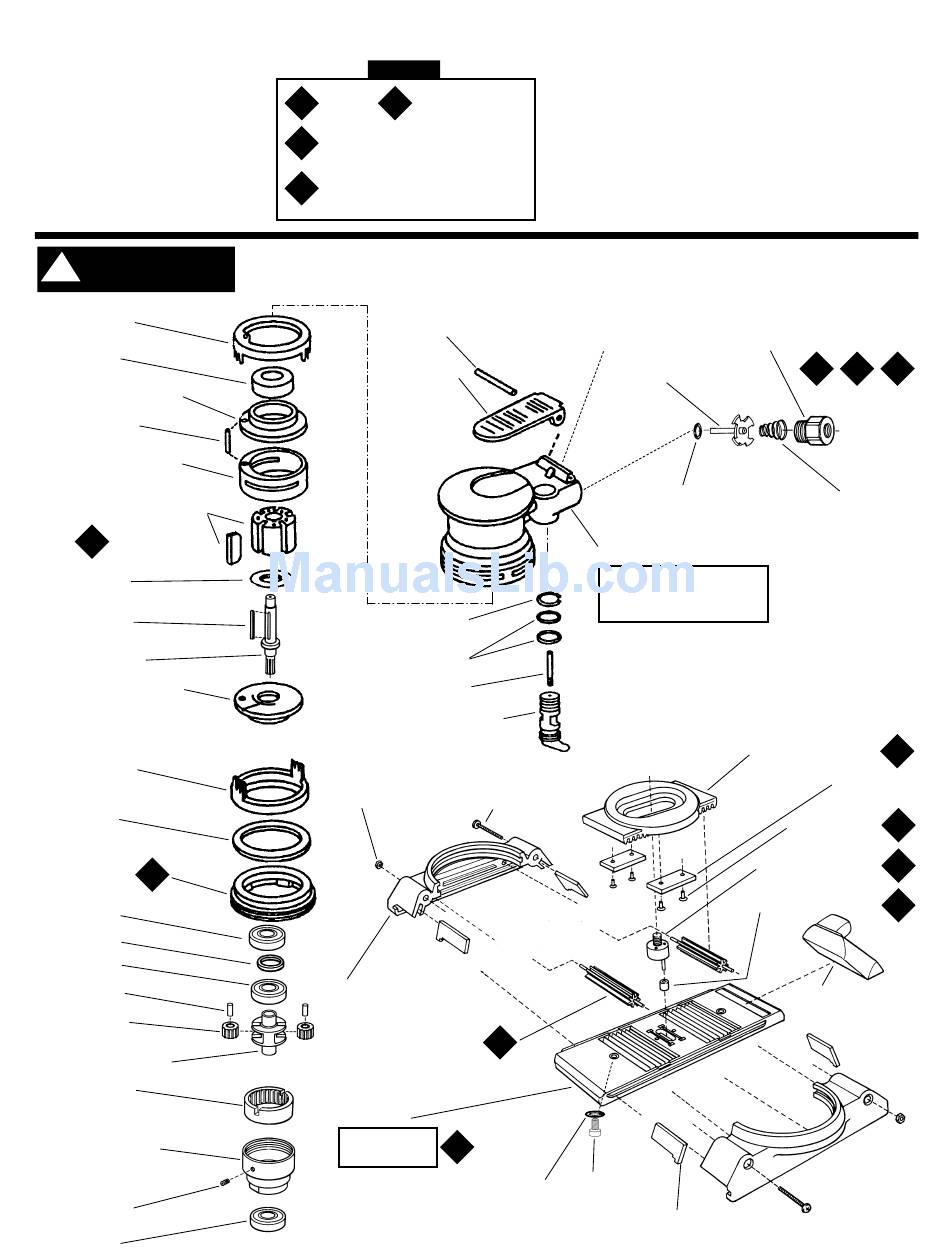

57054 Rear Ring
01206 Bearing
57056 Rear Bearing Plate
95971 Line-up Pin
57058 Cylinder Assembly
(Includes 95971 Line-up Pin)
54491 Blade (5) and Rotor set
O
95975 Shim Pak
56047 Rotor Key
54470 Rotor Pinion
57437 Front Bearing Plate
57055 Front Ring
95973 Washer
57059 Lock Ring
T
3
01139 Bearing
07146 Packing
01139 Bearing
54475 Shaft (2)
06213 Gears (2)
54465 Planetary Carrier
54468 Ring Gear
54467 Retaining Ring
95593 Set Screw
01139 Bearing
KEY
Oil
O
G
Loctite/Hernon: L
L
Torque: N•m x 8.85 = In. - lbs.
T
T
= 23 N•m, T
= 28 N•m
2
3
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
95979 Pin
57441 Lever
95697 Snap Ring
01025 O-Ring (2)
01477 Valve Stem
57064 Speed Regulator
57053 Recessed Speed Regulator
95641 Nut (2)
57427 Gear Box Assembly
Includes 57429 Felt Seal (4)
57431 Transfer Pinion (2)
Slide Board
57433 - Non Vac
57432 - Vac
Note: To order replacement parts specify the model and serial number of your machine.
Grease

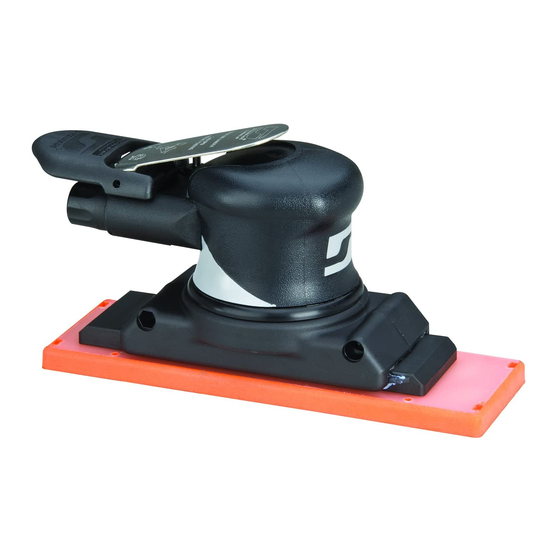

Dynaline Sander
= Loctite #271
2
Air-Powered , Finishing Sander; 2400 SPM
See page 2 for Machine
Exhaust Assemblies
Housing
57442 — Non-Vac
57443 — Self-Generated Vac
57444 — Central-Vac
or
95642 Screw (2)
G
G
95885 Screw (2)
01211 Lock Washer (2)
57429 Felt Seal (4)
Parts Page Reorder No. PD97•54
Effective September, 1997
Supersedes PD96•40
For Serial Number 5I3366 and Higher
01494 Inlet Bushing
01472 Tip Valve
01464 Seal
57438 Counter Weight
96027 Screw (4)
57430 Cam Assembly
57445 Needle Bearing
T
L
O
2
2
01468 Spring
G
57439 Rail (2)
L
2
L
2
G
57434 Vac Adapter
(Vac Models Only)
Advertisement
Related Manuals for Dynabrade 57400
Summary of Contents for Dynabrade 57400
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
-
Page 2: Operating Instructions
Dynabrade, Inc. 1. All Dynabrade air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example : if the tool specification state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute). Dynabrade Air Lube (P/N 95842: 1pt. 473ml.) is recommended. - Page 3 0.001" gap between the rotor and the front bearing plate. 57058 Line-Up Pin Note: Blades should be lightly lubricated with Dynabrade Air Lube P/N 95842 (or equivalent) before installation. 57058 Cylinder 5. Place 57058 Cylinder Assembly over rotor. The "short" line-up pin goes toward the front plate.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSI. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
