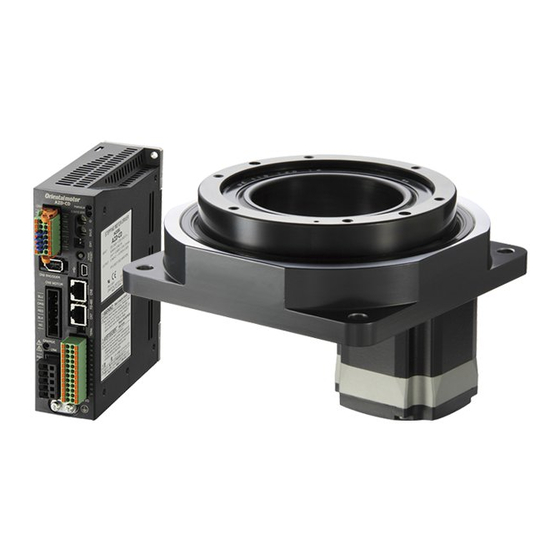

Motorized actuator
Hide thumbs Also See for DGII Series:
Table of Contents

Advertisement

Quick Links

Download this manual

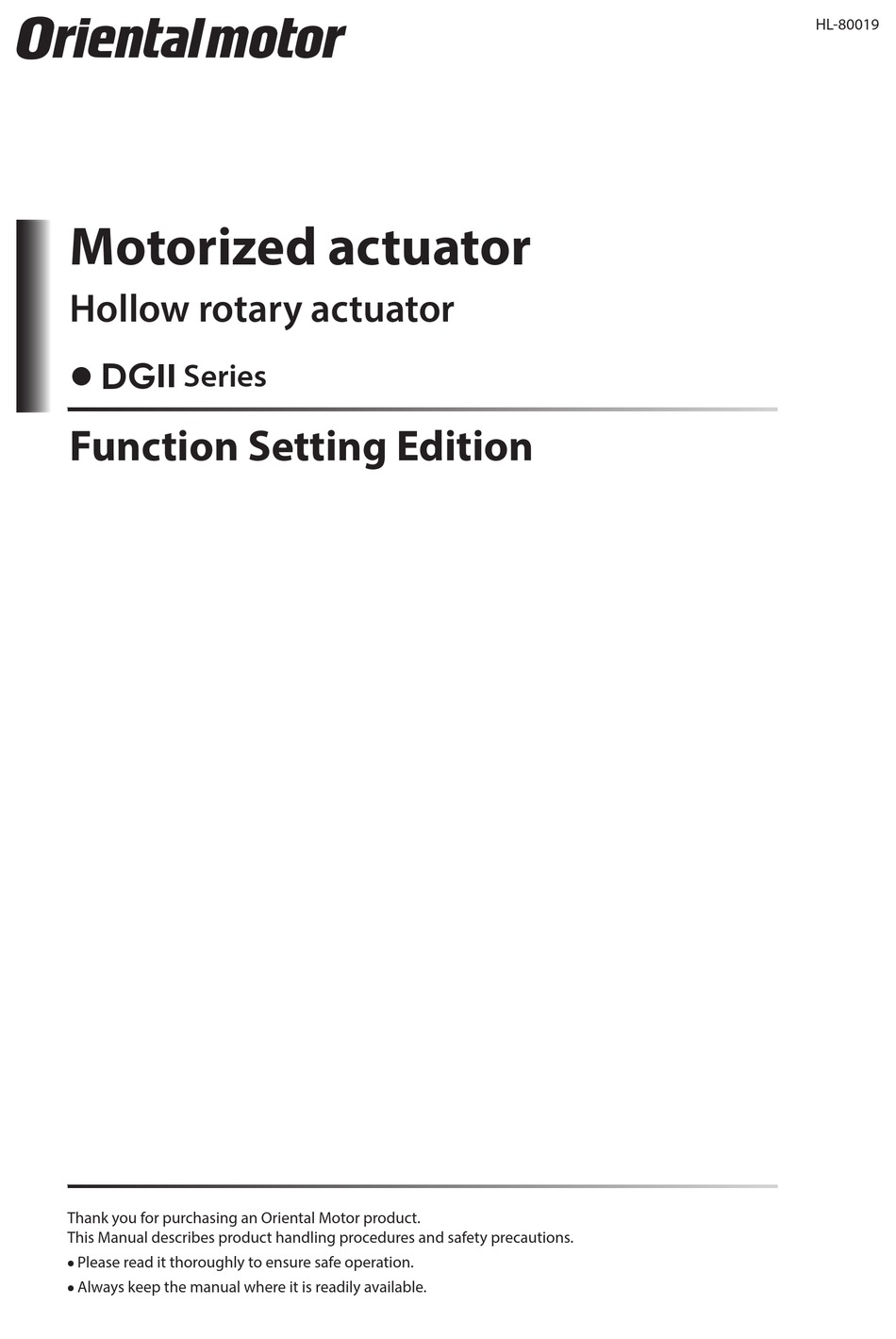

Motorized actuator
Hollow rotary actuator
DG
II Series
Function Setting Edition
Thank you for purchasing an Oriental Motor product.
This Manual describes product handling procedures and safety precautions.
• Please read it thoroughly to ensure safe operation.
• Always keep the manual where it is readily available.
HL-80019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGII Series and is the answer not in the manual?

Questions and answers

Related Manuals for Oriental motor DGII Series

Summary of Contents for Oriental motor DGII Series

  • Page 1 II Series  Function Setting Edition Thank you for purchasing an Oriental Motor product. This Manual describes product handling procedures and safety precautions. • Please read it thoroughly to ensure safe operation. • Always keep the manual where it is readily available.

  • Page 2: Table Of Contents

    Introduction ..........3 When using an actuator equipped with the AR Series ......... 16 1-1 Before using the product ........3 1-2 How to use this manual ........3 4-1 Setting flow ............16 1-3 Related operating manuals ......3 4-2 Parameter list ........... 16 Rotation direction of output table .....4 „...

  • Page 3: Introduction

    The motorized actuator is designed and manufactured to be incorporated in general industrial equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any compensation for damage caused through failure to observe this warning.

  • Page 4: Rotation Direction Of Output Table

    Introduction Rotation direction of output table The rotation direction of the output table varies depending on the setting of the travel amount or the input method of the pulse signal. Check on the following table. The table below describes examples when an actuator is used with the factory settings. Actuators equipped with Actuators equipped with Setting...

  • Page 5: When Using An Actuator Equipped With The Az Series

    When using an actuator equipped with the AZ Series When using an actuator equipped with the AZ Series Setting flow The motorized actuator equipped with the AZ Series can be used with the parameters at the time of shipment. Install and connect a motorized actuator and a driver. Connect a PC installed the support software MEXE02 to start.

  • Page 6: X84; Motor Vertical Mounting

    When using an actuator equipped with the AZ Series „ Motor vertical mounting  Product specifications Item Factory setting Travel amount per revolution of output table [deg] Resolution of output table (minimum step angle [deg]) 36,000 (0.01)  Motor & mechanism parameter Factory setting Item Unit of travel amount: Deg...

  • Page 7: X84; Motor Horizontal Mounting

    When using an actuator equipped with the AZ Series „ Motor horizontal mounting  Product specifications Item Factory setting Travel amount per revolution of output table [deg] Resolution of output table (minimum step angle [deg]) 36,000 (0.01)  Motor & mechanism parameter Factory setting Item Unit of travel amount: Deg...

  • Page 8: Operation

    Operation Push-motion operation and push-motion return-to-home operation cannot be performed with the DGII Series. If these operations are attempted, an alarm of Operation data error is generated. „ Setting of minimum step angle The minimum step angle is set to 0.01 degrees at the time of shipment. Set the minimum step angle with the "Electronic gear A"...

  • Page 9: X84; Positioning Operation By Wrap Function

    When using an actuator equipped with the AZ Series „ Positioning operation by wrap function Using the wrap function can perform the following operations. Coordinate Operation type Details of operation setting Absolute positioning Specifies the coordinates of the target position. ±180°...
  • Page 10 When using an actuator equipped with the AZ Series When the coordinates are set to a range of 0 to 360 degrees and operation is started from the position of 90 degrees. This is a setting example when connecting the product which gear ratio is 18. Set the parameters as follows.

  • Page 11: When Using An Actuator Equipped With The Azx Series

    When using an actuator equipped with the AZX Series When using an actuator equipped with the AZX Series Setting flow The motorized actuator equipped with the AZX Series can be used with the parameters at the time of shipment. Install and connect a motorized actuator and a driver. Connect a PC installed the support software MEXE02 to start.

  • Page 12: X84; Parameter List

    When using an actuator equipped with the AZX Series „ Parameter list  Product specifications Item Factory setting Travel amount per revolution of output table [deg] Resolution of output table (minimum step angle [deg]) 36,000 (0.01)  Motor & mechanism parameter Factory setting Item Unit of travel amount: Deg...

  • Page 13: Operation

    Operation Push-motion operation and push-motion return-to-home operation cannot be performed with the DGII Series. If these operations are attempted, an alarm of Operation data error is generated. „ Setting of minimum step angle The minimum step angle is set to 0.01 degrees at the time of shipment. Set the minimum step angle with the "Electronic gear A"...

  • Page 14: X84; Positioning Operation By Wrap Function

    When using an actuator equipped with the AZX Series „ Positioning operation by wrap function Using the wrap function can perform the following operations. Coordinate Operation type Details of operation setting Absolute positioning Specifies the coordinates of the target position. ±180 °...
  • Page 15 When using an actuator equipped with the AZX Series When the coordinates are set to a range of 0 to 360 degrees and operation is started from the position of 90 degrees. This is a setting example when connecting the product which gear ratio is 18. Set the parameters as follows.

  • Page 16: When Using An Actuator Equipped With The Ar Series

    When using an actuator equipped with the AR Series When using an actuator equipped with the AR Series Setting flow Install and connect a motorized actuator and a driver. Set the minimum step angle. Check the movement of the motorized actuator. Parameter list „...

  • Page 17: X84; Built-In Controller Type

    When using an actuator equipped with the AR Series „ Built-in controller type  Product specifications Item Factory setting Travel amount per revolution of output table [deg] Resolution of output table (minimum step angle [deg]) 18,000 (0.02) Mechanism reduction ratio ...

  • Page 18: Operation

    Operation Push-motion operation and push-motion return-to-home operation cannot be performed with the DGII Series. Performing these operations may cause damage to the motorized actuator. „ Setting of minimum step angle The minimum step angle is set to 0.02 degrees (resolution 18,000) at the time of shipment.

  • Page 19: When Using An Actuator Equipped With The Rkii Series

    When using an actuator equipped with the RKII Series When using an actuator equipped with the RKII Series Setting flow Install and connect a motorized actuator and a driver. Set the minimum step angle. Pulse input type: Set with the switches of the driver. Built-in controller type: Set with the parameters.

  • Page 20: X84; Built-In Controller Type

    When using an actuator equipped with the RKII Series „ Built-in controller type  Product specifications Item Factory setting Travel amount per revolution of output table [deg] Resolution of output table (minimum step angle [deg]) 9,000 (0.04) Mechanism reduction ratio ...

  • Page 21: X84; Return-To-Home Operation

    When using an actuator equipped with the RKII Series Function setting switch (SW1-No.1) Step angle setting Switch (STEP) scale 0.06° 0.002° (0.00333…°) 0.0016° 0.003125° 0.05° 0.001° (0.00277…°) 0.0008° 0.0025° 0.03° 0.0005° (0.00166…°) 0.0004° 0.0015625° 0.00032° 0.00125° 0.0002° 0.00078125° 0.00016° 0.0001° „...
  • Page 24 If a new copy is required to replace an original manual that has been damaged or lost, please contact your nearest Oriental Motor sales office. • Oriental Motor shall not be liable whatsoever for any problems relating to industrial property rights arising from use of any information, circuit, equipment or device provided or referenced in this manual.
