Technical

Horizontal Multi-Stage Close Coupled Pumps in stainless steel.

Intended use

For clean liquids: non-explosive and non-flammable, non-hazardous for health or the environment, non-
aggressive for pump materials, not containing abrasives, solid or fibrous particles.With seal rings in EPDM the
pump is not suitable for use with oil.
Liquid temperature from - 15°C to + 110 °C.

Improper use

The device is designed and built only for the purpose described. Improper use of the device is forbidden,
as is use under conditions other than those indicated in these instructions. Improper use of the product
reduces the safety and the efficiency of the device, Flowtech shall not be responsible for failure or accident
due to improper use. Do not use in ponds, tanks or swimming pools or where people may enter or come into
contact with the water.

Marking

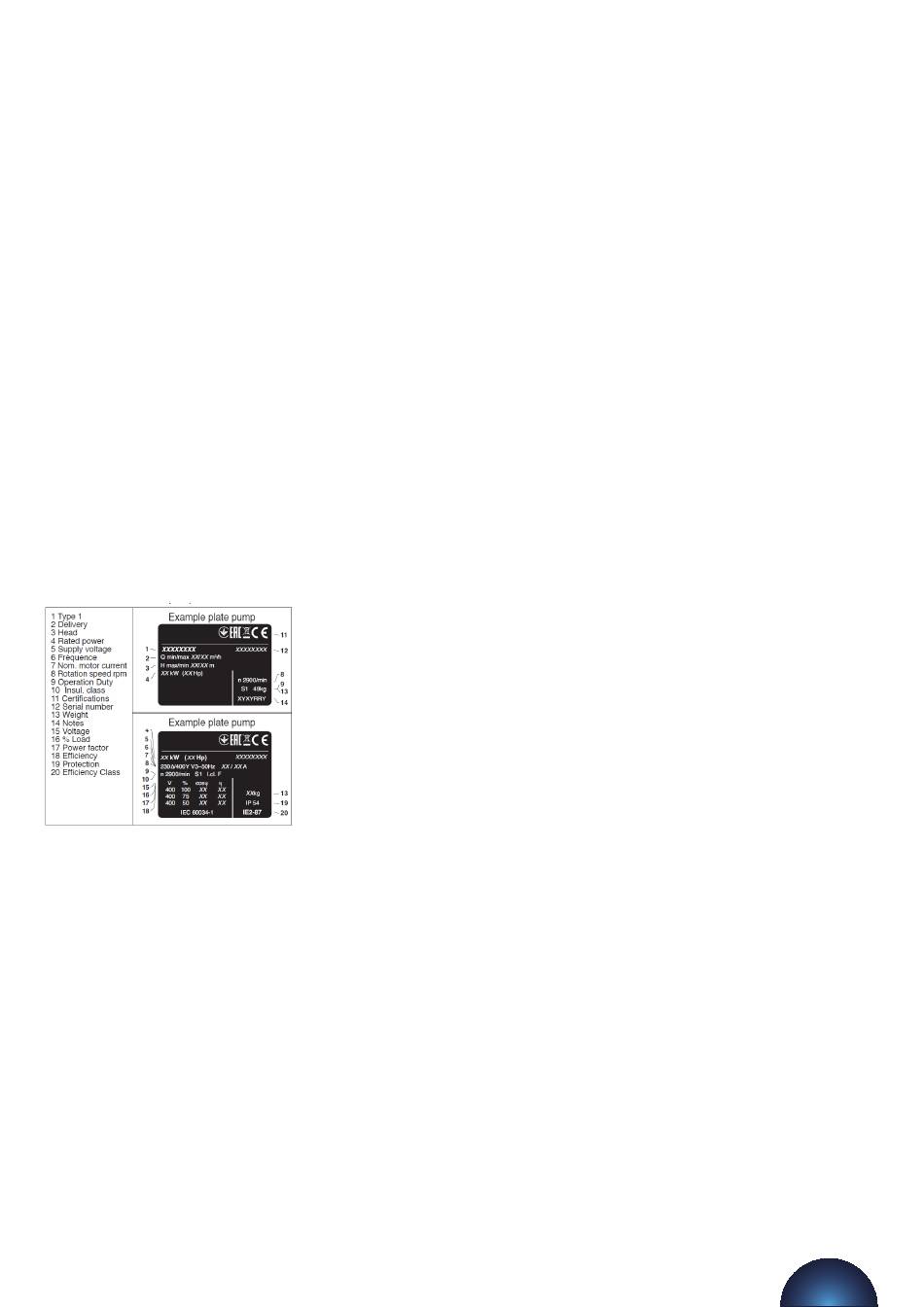

The following picture is a copy of the name-plate that is on the external case of the pump

Technical data

Dimensions and weight (see technical catalogue).
Nominal speed 2900/3450 rpm
Protection IP 54
Supply voltage / Frequency:
up to 240V 1~ 50/60 Hz
up to 480V 3~ 50/60 Hz
Check that the mains frequency and voltage correspond to the electrical characteristics shown on the
indicator plate. The electric data marked on the label are referred to the nominal power of the motor.
Sound pressure: < 70 dB (A).
Max. Starts per hour: 30 at regular intervals (15 for 206-406, 20-32-48).
Maximum permissible pressure in the pump casing: 80m (8 bar), 100 m (10 bar) for 20-32-48.
The max. Inlet water pressure: PN (Pa) - Hmax (Pa).
