Product Description

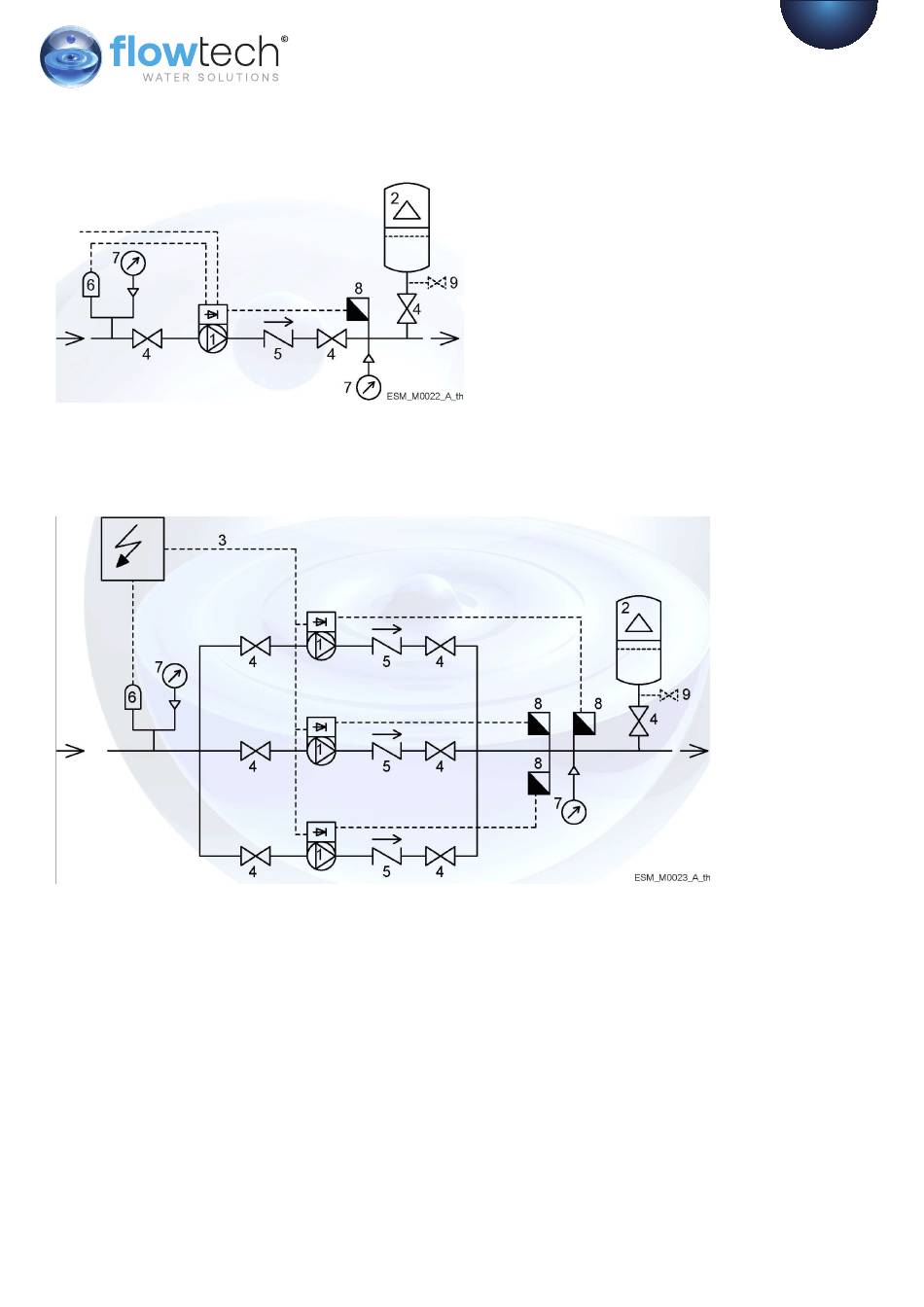

Figure 2 and Figure 3 show a typical single-pump and multi-pump system using the unit.
When the system is connected directly to the water supply use a low-pressure switch on the suction side.
Figure 2: Single-pump system
Figure 3: Multi-pump system
Pump with e-SM Motor Drive
Diaphragm pressure tank
Distribution panel
On-off valve
Non-return valve
Low water control
Pressure gauge
Pressure sensor
Drain tap
