Dimensions and weights

Design and layout
Booster unit parts and description as standards configuration

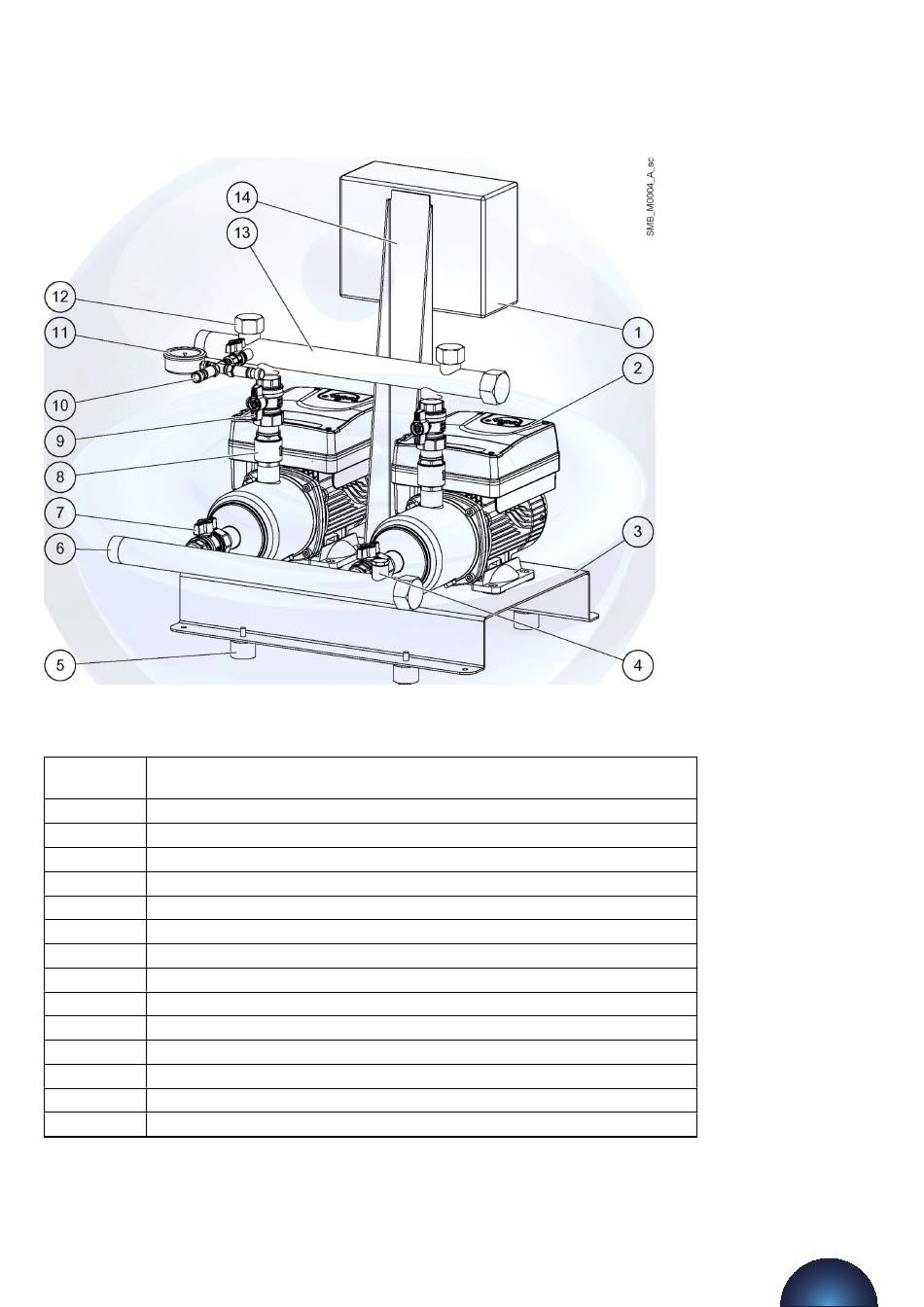

Figure 6: Booster unit
Position Description
number
1. Control Panel
2. Electric pump E (e-SM drive) series
3. Baseplate
4. Priming connection
5. Damper
6. Suction manifold
7. Suction on-off valve
8. Non-return valve
9. Delivery on-off valve
10. Pressure transmitter
11. Pressure gauge
12. Tank connection
13. Delivery manifold
14. Bracket support
