Swing-N-Slide Super Summit Slide Manual

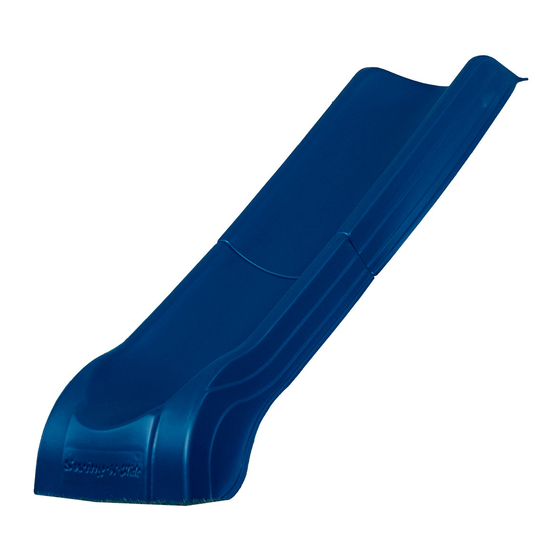

Super Summit Slide
Fits 60" (152,4 cm) Deck Height
KIT INCLUDES:
Not Included In Kit:
17" (43,1 cm)
Cut
1-3/4"
(4,4 cm)
x1
1-3/4" (4,4 cm)
Tools Required:
Phillips Bit
1/8" & 1/4" Drill Bits

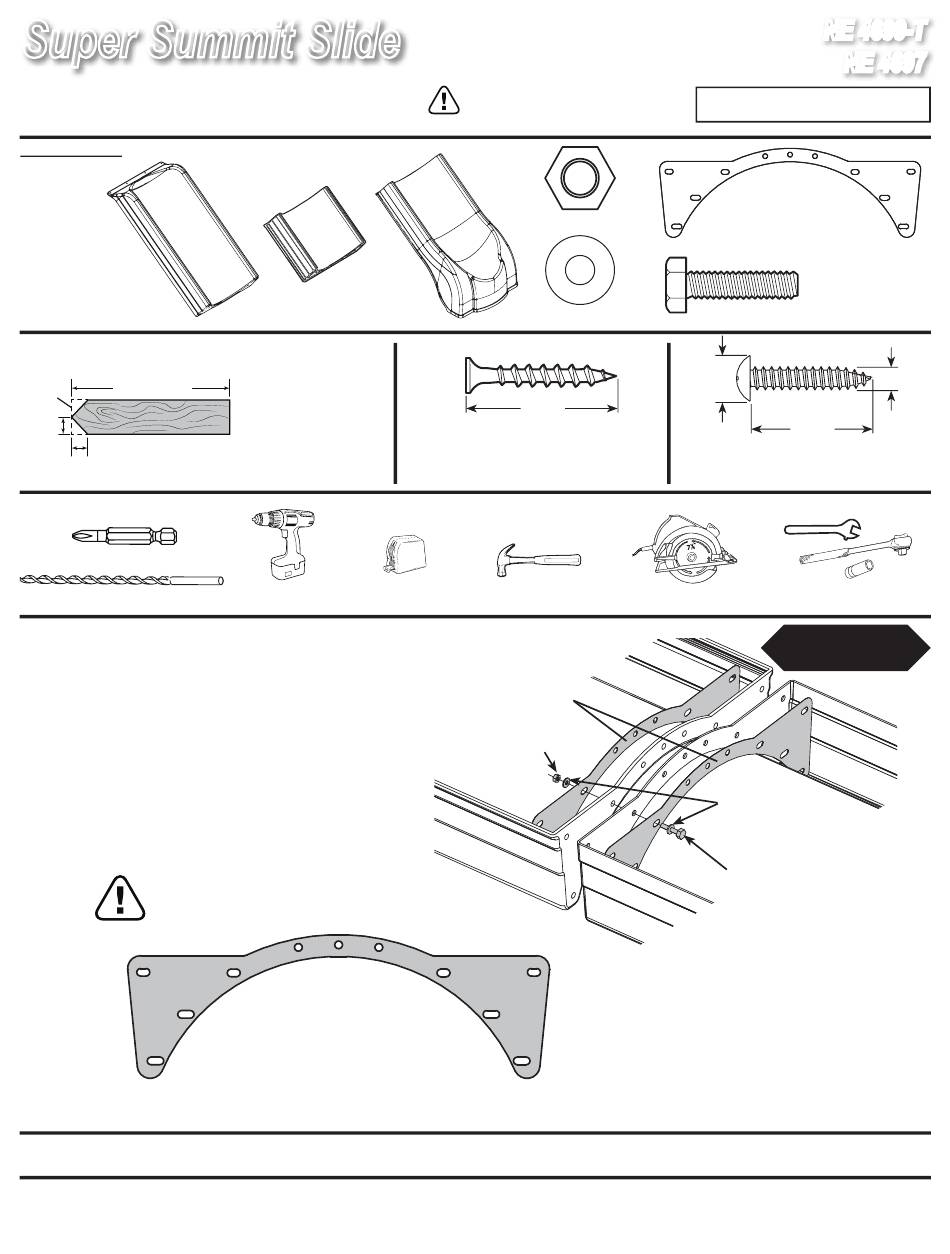

ASSEMBLY STEPS
1. Align slide sections and the backing plates together on
the ground (Fig. 1). Begin attaching two slide sections
together by securing the bolts in place fi nger tight (see
Fig. 2 for proper Bolt Sequence). Following this pattern
install (1) bolt, (2) washers and (1) lock-nut per hole
(see Fig. 1). Repeat this procedure for the second seam.
Once all (22) bolts, (44) fl at washers and (22) lock-
nuts are in place go back and tighten all hardware with
appropriate tools.
IMPORTANT: Tighten securely so backing plates
and slide sections are tight against each other AND
there are a minimum of one to two threads extending
beyond each lock-nut.
Tighten nut until washers are tight against backing plates.
4
11
2
Weight Limit: 250 lbs
For children 2-10 years of age
Specifi cations subject to change without notice.
Manufactured for: Swing-N-Slide® • 1212 Barberry Drive • Janesville, Wisconsin 53545 • USA • 1-800-888-1232 • www.swing-n-slide.com
Made in USA • Printed in USA
Stake
2" x 4" x 17" (5,1 x 10,2 x 43,1 cm)
Use Pressure-Treated Wood
Electric Drill Tape Measure
8
9
10
Backing Plates
WARNING: Assembly by adult.
AVERTISSEMENT: L'assemblage dolt être exécuté par un adulte.
ADVERTENCIA: El ensamblaje lo debe hacer un adulto.
WARNING: ASSEMBLY BY ADULT.
WARNING: ASSEMBLY BY ADULT
x22
x44
Deck Screw
x2
1-1/4"
(3,2 cm)
Screw size should be a #8 thread size
minimum and coated for use
with treated wood.
Hammer
Backing Plates
(11) 5/16" (7,8 mm) Lock-nut
7
6
3
5
1
1
FOR PRIVATE USE ONLY
DO NOT USE IN PUBLIC SETTNGS!
x4
Hex Bolt
x22
Truss Screw
1/2"
(12,7 mm)
x4
1-1/4"
(3,2 cm)
Screw must be to sizes shown at a
minimum. Do not use a screw size shorter
than 1-1/4" (3,2 cm) long.
Circular Saw
Socket Wrench set /
Wrenches
Fig. 1
(22) 5/16" (7,8 mm)
Flat Washers
(11) 5/16" x 1"
(7,8 mm x 19 mm)
Hex Head Bolt
LDR 02-22-2019
NE 4699-T
NE 4697
1/4"
(6 mm)
LA 9432
