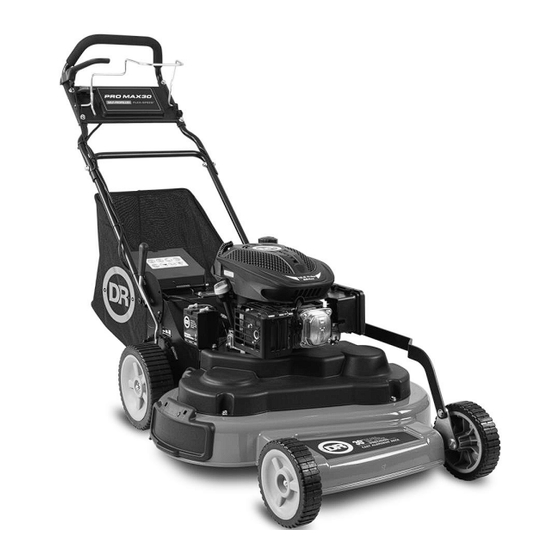

DR PRO MAX30 Safety & Operating Instructions Manual

Wide cut lawn mower
Hide thumbs

Advertisement

Table of Contents

DR
®
WIDE CUT LAWN MOWER
SAFETY & OPERATING INSTRUCTIONS
Models:
PRO MAX30
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR WIDE-CUT LAWN MOWER
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Website: www.DRpower.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO MAX30 and is the answer not in the manual?

Questions and answers

mike
May 30, 2025

DR PRO MAX30 Lawn Mower uses what size fuse

0

Subscribe to Our Youtube Channel

Related Manuals for DR PRO MAX30

Summary of Contents for DR PRO MAX30

  • Page 1 ® WIDE CUT LAWN MOWER SAFETY & OPERATING INSTRUCTIONS Models: PRO MAX30 DR Power Equipment Serial No. Toll-free phone: 1-800-DR-OWNER (376-9637) Order No. Website: www.DRpower.com Read and understand this manual and all instructions before operating the DR WIDE-CUT LAWN MOWER...
  • Page 2 ® WIDE-CUT LAWN MOWER...

  • Page 3: Table Of Contents

    Additional Information and Potential Changes DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing.

  • Page 4: Chapter 1: General Safety Rules

    Labels Your DR WIDE-CUT LAWN MOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your Mower as you set up and before you operate the unit.
  • Page 5 Protecting Yourself and Those Around You This is a high-powered machine, with moving parts operating with high energy. You must operate the machine safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions when using this machine: •...
  • Page 6 Stop the blade when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed. • See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR Power Equipment. •...
  • Page 7 Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using hydrocarbon fuels without an engine spark arrester. This also applies to operation on US Forest Lands. All DR WIDE-CUT LAWN MOWERS shipped to California, New Mexico, Oregon, and Arizona are equipped with spark arresters.

  • Page 8: Chapter 2: Setting Up The Dr Wide-Cut Lawn Mower

    Chapter 2: Setting Up the DR WIDE-CUT LAWN MOWER It may be helpful to familiarize yourself with the controls and features of your DR WIDE-CUT LAWN MOWER as shown in Figure 1 If you have any questions at all, please feel free to contact us at www.DRpower.com.
  • Page 9 Pictogram Descriptions Avoid steep slopes when using this Keep bystanders 50 feet away from mower. Use caution on all slopes. Mow your work area at all times. Debris across slopes rather than up and down. exits the machine at great speeds. To be safe, do not operate the machine Do not use the Mower on slopes greater near small children or pets, and never...
  • Page 10 Discharge Deflector Bagger Assembly Mower Assembly Compare the contents of the Shipping Box with the “Parts Supplied” list above. If you have any questions, please contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance. Unfolding the Handlebars Handlebar Adjust Lever 1.
  • Page 11 Tip: To avoid confusion, we recommend leaving the caps on the Fuel and Oil Oil Fill/ Fills until you are ready to pour either gasoline or oil into the correct Fill. Dipstick Note: You will need approximately 17 to 20 ounces of high detergent oil depending on Engine type.
  • Page 12 This Page Intentionally Left Blank ® WIDE-CUT LAWN MOWER...

  • Page 13: Chapter 3: Operating The Dr Wide-Cut Lawn Mower

    Switch Starting the Engine Figure 8 Note: Your DR Engine has a fixed Throttle position and is equipped with an Auto- Choke. No Throttle or Choke adjustment is required by the operator. Manual Start 1. Turn the Key to the “RUN” position (Figure 8).
  • Page 14 Figure 11 When you release the blade engage bail bar the blade should stop within 3 seconds. If it does not stop properly, shut the mower off immediately and contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376- 9637). Blade Engage...
  • Page 15 Setting up for rear Bagger discharge 1. Lift the Rear Flap Guard (Figure 14). 1. Remove the Mulching Plug (Figure 15). 1. Hold the Discharge Guard in the upright position as you place the tabs of the Bagger Assembly into the slots in the rear Frame on both sides (Figure 16).
  • Page 16 For best performance, install a new blade before the cutting season begins. • Replace the blade when necessary with a DR Power Equipment replacement blade. • For demanding jobs, such as thick wet grass, Side Discharge mode is recommended to reduce clogging.

  • Page 17: Chapter 4: Maintaining The Dr Wide-Cut Lawn Mower

    Chapter 4: Maintaining the DR WIDE-CUT LAWN MOWER Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supersede those listed in the engine manufacturer's owner's manual.
  • Page 18 Replacing the Oil Oil Fill/ Dipstick Tools and Supplies needed: • SAE 30: above 40 degrees F; 10w-30: 10-90 degrees F; 5w-30: 40 degrees F or below (refer to your Engine Owner’s Manual for quantity required) • Small Engine Oil Extractor •...
  • Page 19 Replacing the Blade Belt Locknut ONLY USE DR BELTS ON THE DR MOWER. The Belts have been tested and are designed specifically to work with the Blade Braking system. Use of other Belts could damage the machine and cause serious injury to the operator.
  • Page 20 9. Reinstall the Belt Guide and Belt Cover. Replacing the Blade Brake Belt ONLY USE DR BELTS ON THE DR MOWER. The Belts have been tested and are designed specifically to work with the Blade Braking system. Use of other Blade Brake Belts could damage the machine and cause serious injury to the operator.
  • Page 21 Figure 34 Replacing the Traction Drive Belt Bolts ONLY USE DR BELTS ON THE DR MOWER. The Belts have been tested and Bolts are designed specifically to work with the Blade Braking system. Use of other Belts could damage the machine and cause serious injury to the operator.
  • Page 22 3. Remove Excess Slack in the Cable: Rotate the center section of the In-Line Cable Rotate Center Adjuster until very little movement of the Bail Bar is needed before the Idler Section Arm begins to move. (Figure 38). IMPORTANT: Do not over adjust. Make Clockwise to Tighten sure when the Bail Bar is released the Brake Pad is contacting the Blade...
  • Page 23 Operate the mower Engine for at least 45 minutes to maintain proper Battery charge. If the Battery loses its charge, you will need to use a trickle charger (like the DR Battery Charger) to recharge it. The Charger should have an output of 12 volts at no more than 2 amps.

  • Page 24: Chapter 5: Troubleshooting

    Spark Plug hole and pull the Recoil Cord several times to blow out any oil in the Cylinder, then wipe off the Spark Plug and reinsert it.  If the Engine still will not start, visit our web site at www.DRPower.com or call 1-800-DR- OWNER (376-9637) for assistance.
  • Page 25  Check that the Engine has the right amount of oil.  If your Engine still lacks power, visit our web site at www.DRPower.com or call 1-800-DR- OWNER (376-9637) for assistance. Excessive Vibration ...
  • Page 26 YMPTOM OSSIBLE AUSE  Check the blades for sharpness. Sharpen the blades as needed. The grass is not cut even.  Check for a bent or broken blade. A DAMAGED BLADE IS DANGEROUS AND MUST BE REPLACED.  Check the blade adapter. Replace a broken blade adapter. ...
  • Page 27 This Page Intentionally Left Blank CONTACT US AT www.DRpower.com...

  • Page 28: Chapter 6: Parts Lists And Schematic Diagrams

    Chapter 6: Parts Lists and Schematic Diagrams Parts List – Deck Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 362801 Spindle Assembly, Finish 144091 Pulley, V-Belt, 2-5/8" 395701 Blade, 15.13", High Lift...
  • Page 29 Schematic – Deck Assembly CONTACT US AT www.DRpower.com...
  • Page 30 Parts List - Drive Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 10000041169 Spring, Torsion, Discharge Guard 395441 Axle, Rear A0002853058 Spring, E 1.00 x .085 x 3.5 ZP 395551 Handle, Height Adjust...
  • Page 31 Schematic – Drive Assembly CONTACT US AT www.DRpower.com...
  • Page 32 Parts List - Handlebar Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 395601 Lever, Handlebar Adjust 333331 Nut, Nylon Lock, Flanged, 3/8-16 A0000296271 Bracket, Handlebar Adjust w/labels 333311 Nut, Nylon Lock, Flanged, 1/4-20...
  • Page 33 Schematic – Handlebar Assembly CONTACT US AT www.DRpower.com...
  • Page 34 Notes: ® WIDE-CUT LAWN MOWER...
  • Page 35 WIDE CUT MOWER is fit for ordinary purposes for which a product of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
  • Page 36 Shut off the engine and wait 5 minutes for parts to cool. Remove the spark plug wire, keeping it away from the spark plug and disconnect the negative battery wire to prevent accidental starting. To help maintain your DR WIDE-CUT LAWN MOWER for optimum performance, we recommend you follow this checklist each time you use your Mower.
