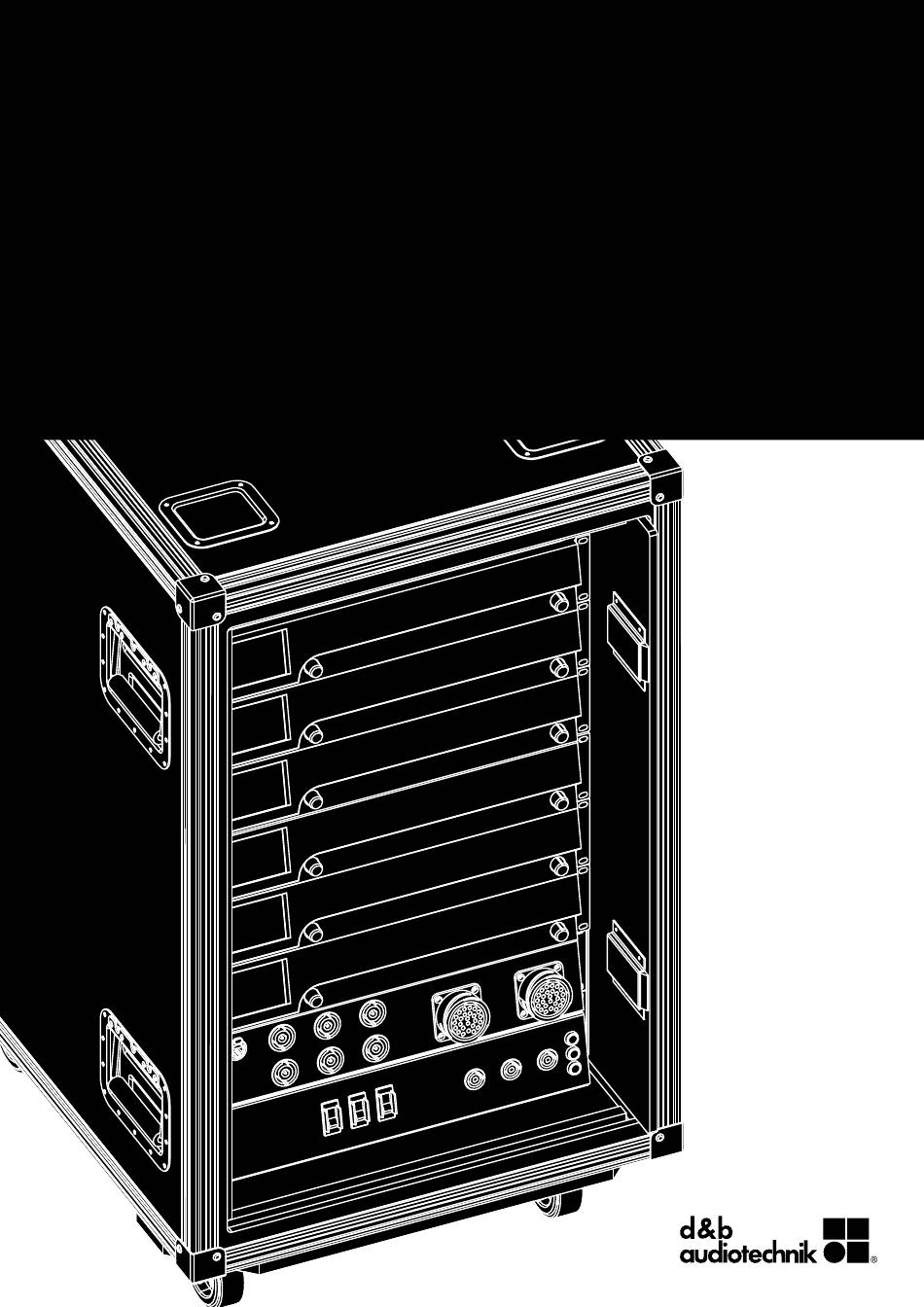

  • Page 1 Z5576.000 Manual 1.1 en...
  • Page 2 General information Z5576.000 Manual Version: 1.1 en, 04/2018, D2029.EN .01 Copyright © 2018 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. We recommend you to regularly check the d&b website for the latest version of this manual.
  • Page 3: Table Of Contents

    Contents Z5576.000 D80 Touring rack assembly 18 RU - CEE.................... 4 1.1. Intended use................4 1.2. Scope of supply................. 5 Handling, cooling and placement........ 6 2.1. Handling..................6 2.2. Cooling and placement............. 6 Z5577.000 Mains power distributor 32 A CEE..8 3.1.
  • Page 4: Z5576.000 D80 Touring Rack Assembly 18 Ru - Cee

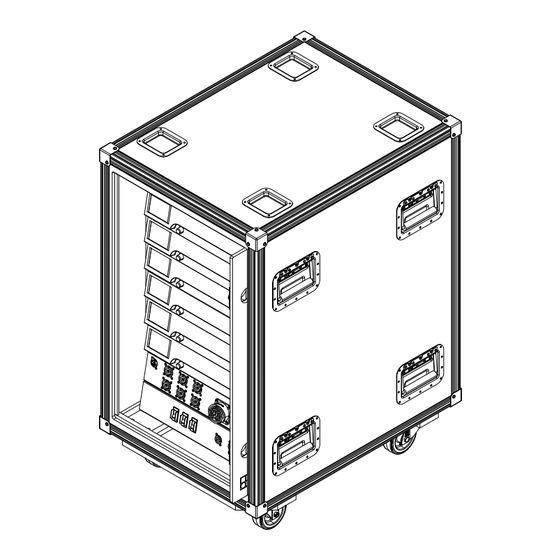

    1. Z5576.000 D80 Touring rack assembly 18 RU - CEE 1.1. Intended use The d&b Z5576.000 D80 Touring rack assembly CEE is intended for large scale mobile sound reinforcement applications. It is designed as a closed and prewired 18 RU system rack, providing mains power distribution and connector interfaces for 6 x D80 amplifiers.
  • Page 5: Scope Of Supply

    D2029.EN .01 Z5576.000 Manual. *To be ordered separately Dimensions and weight Height x width x depth 1060 x 600 x 780 mm 41.73 x 23.6 x 30.7" Total weight (incl. all amps) 210 kg / 463 lb d&b Z5576.000 Manual 1.1 en...
  • Page 6: Handling, Cooling And Placement

    3. push the door into its park position. 2.2. Cooling and placement When using the d&b Z5576.000 Touring rack assembly, make sure to provide sufficient space of 0.5 m (1.6 ft) at the front and rear of the touring rack to ensure adequate cooling airflow.
  • Page 7 ▪ Do not stack D12 Touring racks or any other rack assemblies with opposing airflow on top of the Z5576.000 Touring rack. ▪ Z5576.000 D12 Touring rack assemblies can be positioned side by side.
  • Page 8: Z5577.000 Mains Power Distributor 32 A Cee

    The Z5577.000 Mains power distributor is designed and dimensioned to provide and distribute the mains power supply necessary for one Z5576.000 Touring rack assembly. It is a protective class 1 unit with IP class 20 (NOT rain-, drip-, or splash-proof!).
  • Page 9: Front Panel

    The remaining sockets are intended for the connection of low current devices such as notebooks or additional Ethernet switches. The sockets are equipped with dedicated circuit-breakers (16 A / C-type). Please refer to the assignment as shown in the graphic opposite. d&b Z5576.000 Manual 1.1 en...
  • Page 10: Z5578 Ls Connector Panel 6 X Nl8 / 2 X Lka25

    Flashing green: Power "ON" ready for connection. Flashing green/red: Invalid load connected. Flashing red: Error. E8106 Technical specifications Output voltage 56 VDC (±5%) Minimum load 10 mA Maximum load 350 mA Pin assignment Pin 3/6: + | Pin 1/2:– Compliance IEEE802.3af d&b Z5576.000 Manual 1.1 en...
  • Page 11: Outputs

    The assignment of the respective amplifiers to the corresponding connector is shown in the graphic opposite. Pin equivalents of the LKA25 connectors and the corresponding 4 CHANNEL OUTPUT (NL8) connector of the respective amplifier are listed in the following table: d&b Z5576.000 Manual 1.1 en...
  • Page 12 AMP 1 AMP 4 1– 1– 2– 2– 3– 3– 4– 4– AMP 2 AMP 5 1– 1– 2– 2– 3– 3– 4– 4– AMP 3 AMP 6 1– 1– 2– 2– 3– 3– 4– 4– d&b Z5576.000 Manual 1.1 en...
  • Page 13: Ds10 And I/O Panel

    Ensure the BYPASS/NETWORK switch of the DS10 is set to NETWORK. PRI + OCA on separate LANs PRI + OCA on the same LAN DS10 mode*: Redundant + VLAN DS10 mode: Redundant + Multicast Filter *DS10 factory default configuration d&b Z5576.000 Manual 1.1 en...
  • Page 14: I/O Panel

    Do not link/daisy chain entire rack assemblies using the ETH 1/ ETH 2 connector sockets of the I/O panel. I/O panel, rack link example: 2ch Analog audio and Ethernet/OCA DS10 mode: Redundant + VLAN d&b Z5576.000 Manual 1.1 en...
  • Page 15: Z5333 Rack Link

    Technical specifications Audio connector 2 x XLR female to 2 x XLR male with color markup Audio signal capability Analog Digital AES3 Network connector etherCON Network cable CAT 5E STP Length 2 m / 6.5 ft d&b Z5576.000 Manual 1.1 en...
  • Page 16: Rack Wiring Diagrams

    6. Rack wiring diagrams Mains power connection and internal mains supply distribution d&b Z5576.000 Manual 1.1 en...
  • Page 17 Internal 4 CHANNEL OUTPUT wiring d&b Z5576.000 Manual 1.1 en...
  • Page 18 Internal audio INPUT and LINK wiring d&b Z5576.000 Manual 1.1 en...
  • Page 19 Internal Ethernet wiring and POE injection d&b Z5576.000 Manual 1.1 en...
  • Page 20 Internal CAN-Bus wiring d&b Z5576.000 Manual 1.1 en...
  • Page 22 www.dbaudio.com...
