6700 Series
Art. 6788
7" hands free colour display digital videophone
200mm

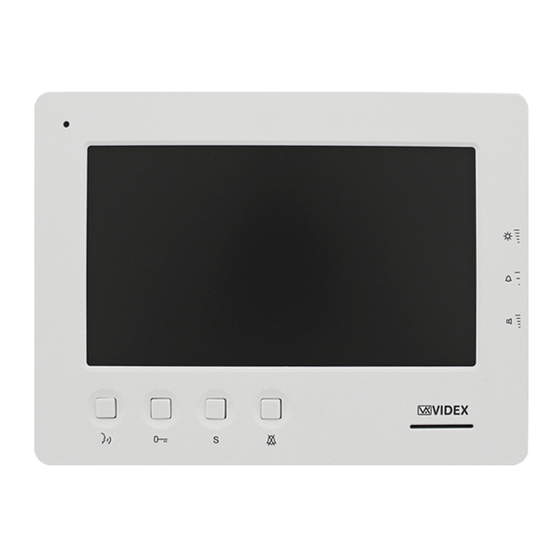

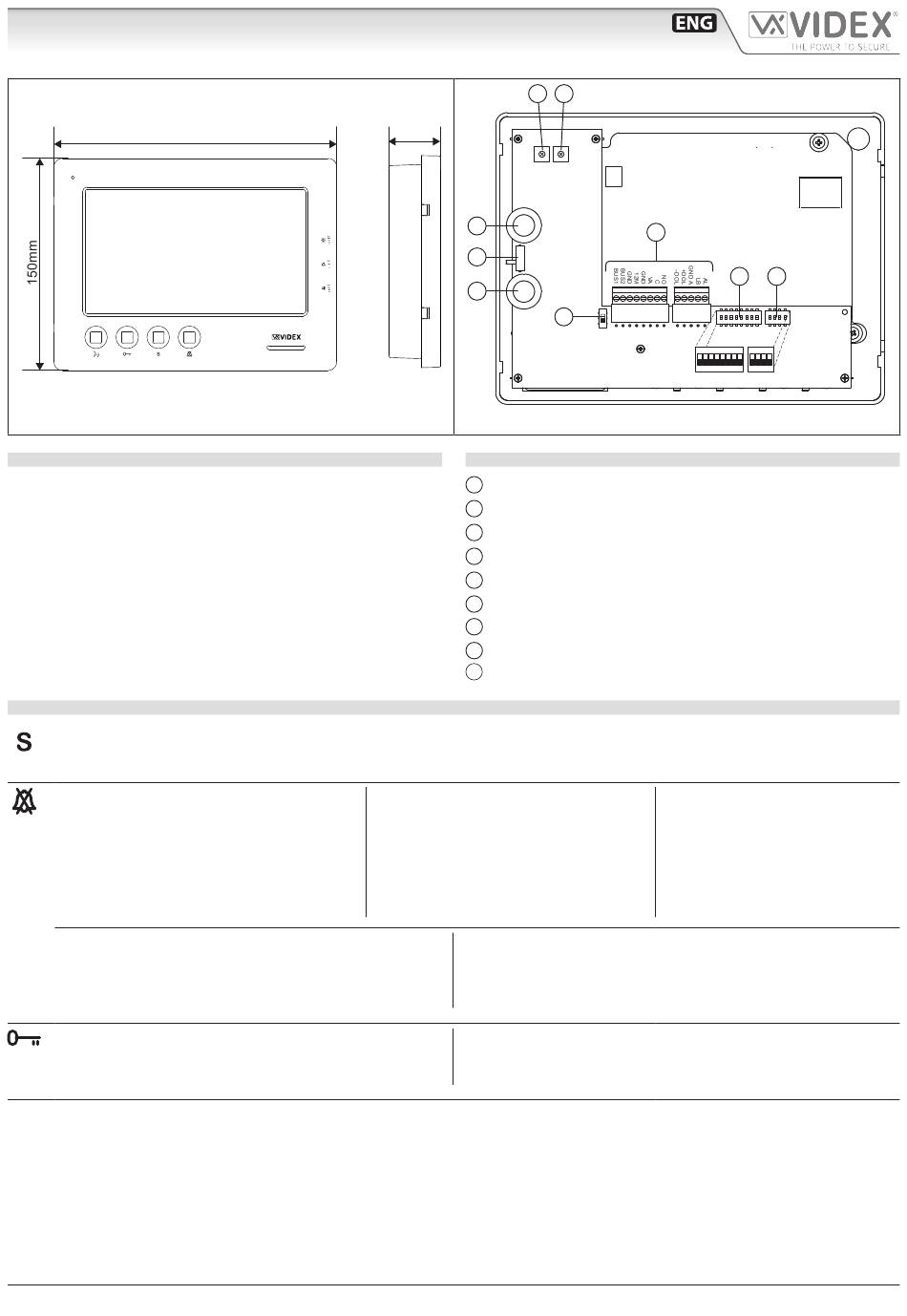

Fig. 1 Front
DESCRIPTION
Surface mount hands free intelligent Videophone using 7" full
colour active matrix LCD monitor for VX2300.
Including 4 buttons: Service, Privacy/Bus relay activation/Cam-
era switch/Call reject, Door-open/Intercommunicating call,
Answer/OFF/Camera recall/Push to talk plus 3 LED's for visual
indication of privacy, door open services enabled and functions
activated.
Adjustments & programmable options: call tone volume on 3
levels (low, medium, high), speech volume, call tone melody,
number of rings, and privacy duration .
Also includes a local bell function.
PUSH BUTTONS
Service push button
When pressed it links internally the terminals C and NO on the connection terminals.
Privacy ON-OFF push button
To enable the function press this button
when the videophone is in stand-by. The
service is automatically disabled when the
programmed time expires (the privacy du-
ration time can be programmed) or manu-
ally by pressing again the button.
Camera switch push button
During the conversation, press and keep pressed the
button until the camera switches. Repeat the operation
to switch back to main camera.
Door open push button
Press this button to open the door when you are in con-
versation or you are receiving a call.
Art. 6788 - Installation instructions
D
27mm
PT3 PT2
G
H
SW2
F
Fig. 2 Back
LEGEND
Connection terminals
A
8 Way dip switch bank
B
4 Way dip switch bank
C
Contrast adjustment trimmer
D
Hue adjustment trimmer
E
Speech volume control sliding wheel
F
Brightness control sliding wheel
G
H
Call tone volume switch
Bus termination switch
I
Activate the outdoor station
2
output
nd
During a conversation, press this but-
ton once to activate the secondary relay
of outdoor station (only with Art.4304,
4304X, 4384 and 4384X PCB Rev.0.1).
Call Reject button
During an incoming call, press this button to reject the call. The
visitor doesn't receive any warning of the call rejected.
Intercommunication push button
For an intercommunicating call, press as many times as the exten-
sion or address value to call (see SW2 Intercommunication Settings).
- 1 -
E
PT1
A
PT4
I
JP1
ON
1 2 3
4
SW1
Activate bus relay board
Art. 2305
To activate a bus relay, during a
conversation, press this button
quickly as many times as the ad-
dress value of the relay (1..8).
R03A(-2)
B
C
ON
5
6 7 8
1 2 3 4
SW3
66251155 - V5.0 - 28/02/23
