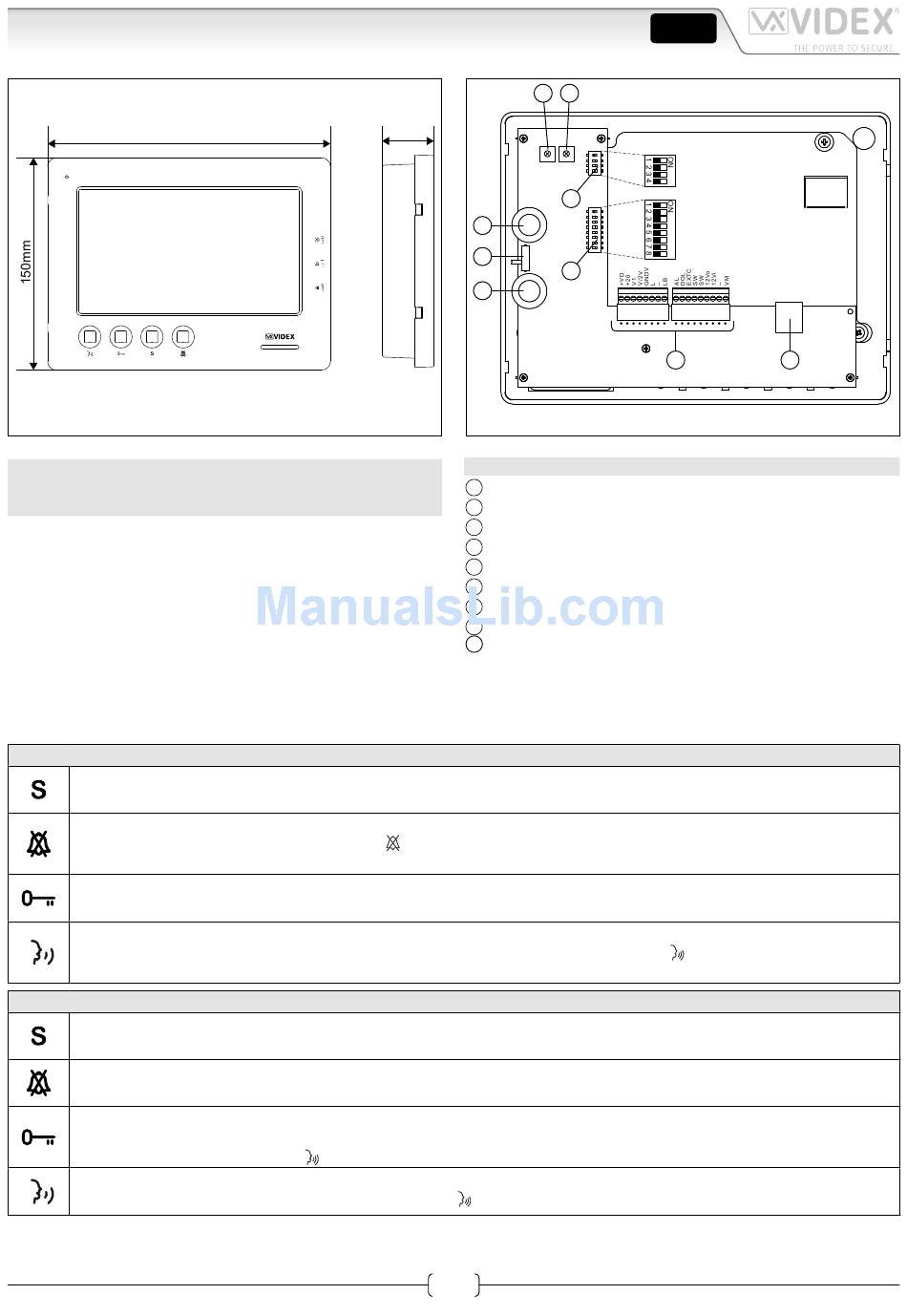

Videx 6778 VX2200 Installation Instructions Manual

6700 Series
Art. 6778
7" hands free colour display videophone
200mm
Fig. 1
ART. 6778 VX2200 6700 SERIES HANDS FREE VIDEOPHONE
FOR SYSTEMS USING COMPOSITE VIDEO SIGNAL (COAX) OR
BALANCED (TWISTED PAIR)

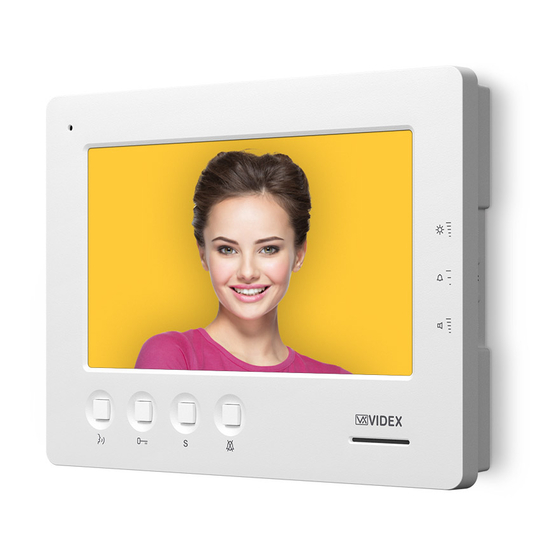

Surface mount hands free intelligent videophone incorporating
a 7" Hi-Res full colour active matrix LCD monitor, with "answer/
camera recall", "door open/concierge call", "privacy" and one
"service" buttons plus 3 LED's signalling privacy service enabled,
door open and activated functions.
Programmable settings: video mode (coax or balanced), privacy
duration, melody and number of rings.
Adjustments: call tone volume (3 levels), speech volume, pic-
ture hue, contrast and brightness.
Also includes a local bell function.
PUSH BUTTON OPERATION DURING STANDBY (FIG. 1)
Service button
When pressed, shorts terminal "SW " to "SW " (max 24Vdc 50mA).
Privacy service
Press to enable the privacy service. The LED " " turns on. The service is deactivated by pressing again the same button or
when the programmed time expires.
Call the concierge
Press to book a call to the digital concierge if installed on the system.
Camera recall
Press a number of times equal to the ID value of the door panel to switch ON. The LED "
When the connection is made, press again to end the call.
PUSH BUTTON OPERATION DURING A CALL (FIG. 1)
Service button
When pressed, shorts terminal "SW " to "SW " (max 24Vdc 50mA).
Reject the call
During an incoming call, press this button to reject the call. The visitor doesn't receive any warning of the call rejected.
Open the door
Press to activate the door open relay of the outdoor unit and end the connection.
The unit emits 5 "beeps" and the"
Answer a call
Press to answer the call and start the conversation. The"
Art. 6778 - Installation instructions
27mm
G
H
F
Fig. 2
LEGEND
Connection terminals
A
8 Way dip switch bank to set videophone address
B
4 Way dip switch bank to set video mode
C
Contrast adjustment trimmer
D
Hue adjustment trimmer
E
Speech volume control
F
Brightness control
G
Call tone volume switch
H
I
RJ-45 connector
" LED will flash, then returns to stand-by mode.
" LED turns on.
1
ENG
D E
PT2 PT3
DSW2
C
PT1
DSW1
SW1
B
VR1
A
" turns on.
I
66251490-EN - V1.0 - 31/10/16
