6700 Series
Art.ꢀ6798
7" hands free touchscreen videophone for IPure system
A
B
C

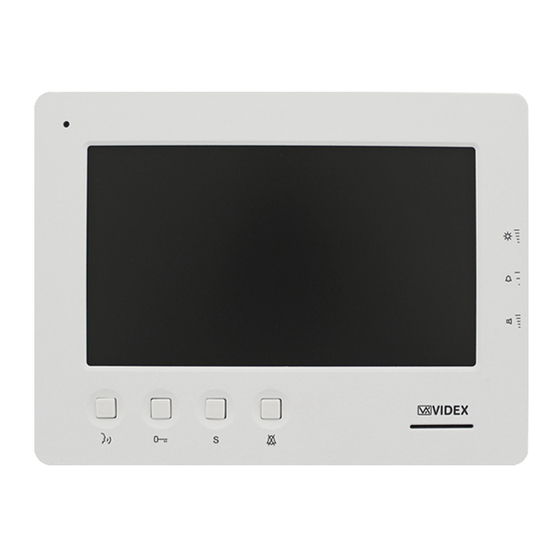

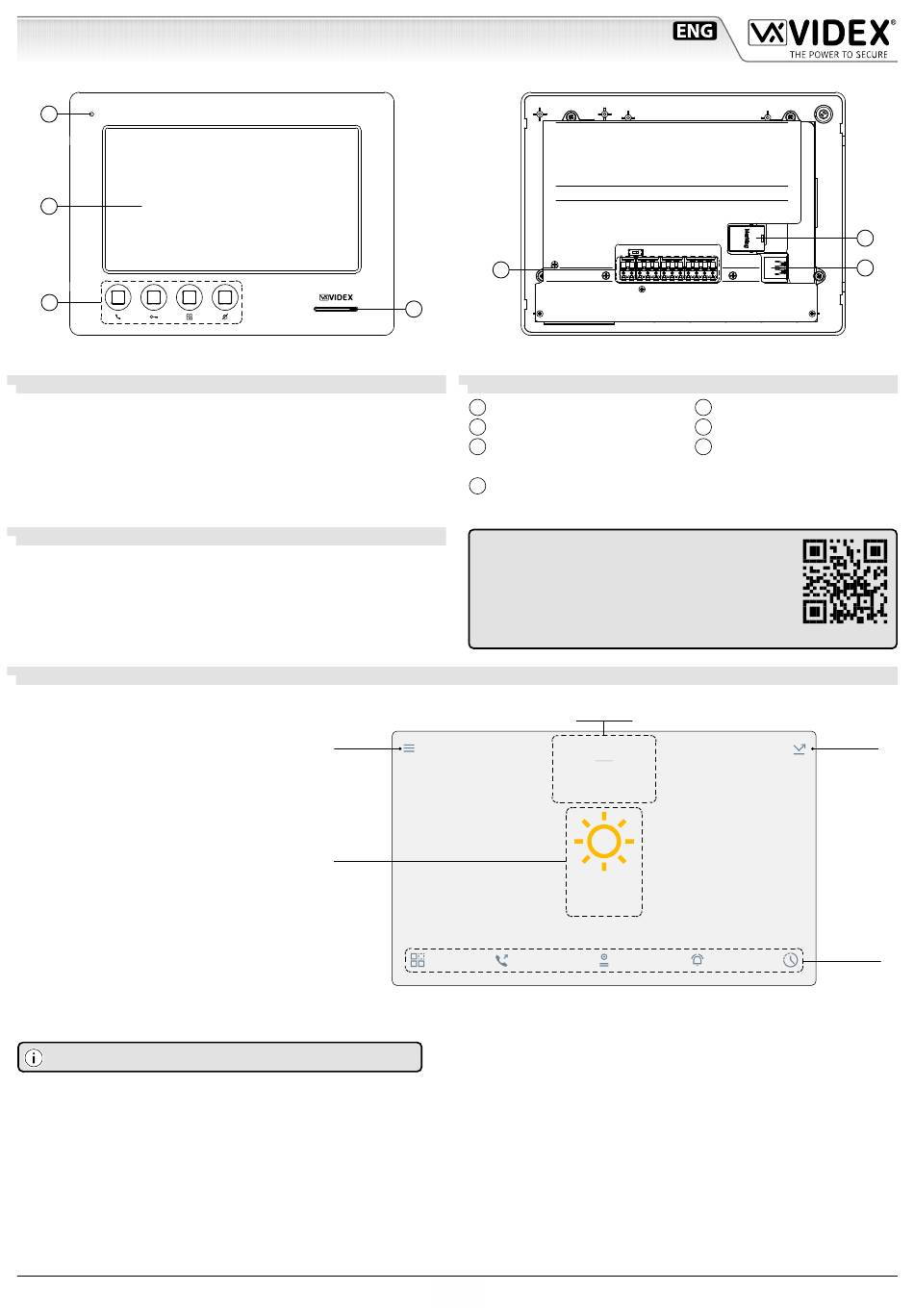

Fig. 1 Front
DESCRIPTION
7" TFT high-resolution LCD monitor, OSD capacitive touch
screen, 4 buttons configurable for functions: door open, inter-
com call, auto start, camera switching, timed privacy service.
12Vdc or PoE power supply.
2 inputs / 2 outputs.
Wall mounted, white or black finish.
VIDEOPHONE INITIALISATION
If powering on the videophone (through a POE switch/router or
an external power supply unit) the display shows the message
"DEVICE NOT INITIALISED", use the configuration software for the
VIDEX IP system (Videx IP Wizard.exe) to setup the device and the
system.
HOME SCREEN
The Home screen (Fig. 3) includes
navigation buttons, control buttons and
general information:
• Menu button
Navigate to other screens (for details
see "Menu" on pag. 4)
• Current time and date
(to set see "Date and time" on pag. 6)
• Missed calls button
View missed calls and access Event log
screen (for details see "Event log" on
pag. 3)
• Weather information and location
(to set see "Weather location" on
pag. 6)
• Control touch buttons
(for details see "Control touch
buttons" on pag. 2)
If the display is in standby, simple tap it to activate.
Art.ꢀ6798 - Installation instructions
E
D
Fig. 2 Inside
LEGEND
Microphone
A
Touchscreen display
B
Physical programmable
C
buttons
Speaker
D
To download the programming software
VX IP Wizard and obtain the latest firmware
and manuals please visit the following web-
site and register
https://service.videx.it/
Menu
button
Weather
info
- 1 -
Connection terminals
E
Ethernet connector
F
USB connector for Wi-Fi
G
optional dongle
Date and
time
11:12
Thursday, 13 May 2021
24°C
0.45 m/s
Fig. 3
F
G
Missed
calls
button
Control
touch
buttons
66251910 - V1.1 - 15/08/21
