6700 Series
Art. 6798

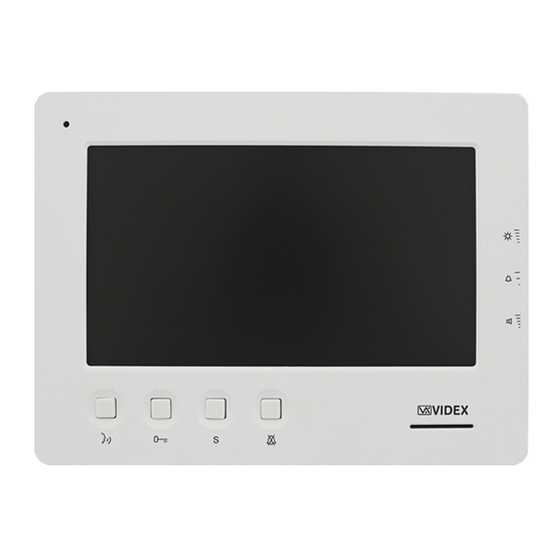

7" hands free touchscreen videophone for IPure system
A
B
C

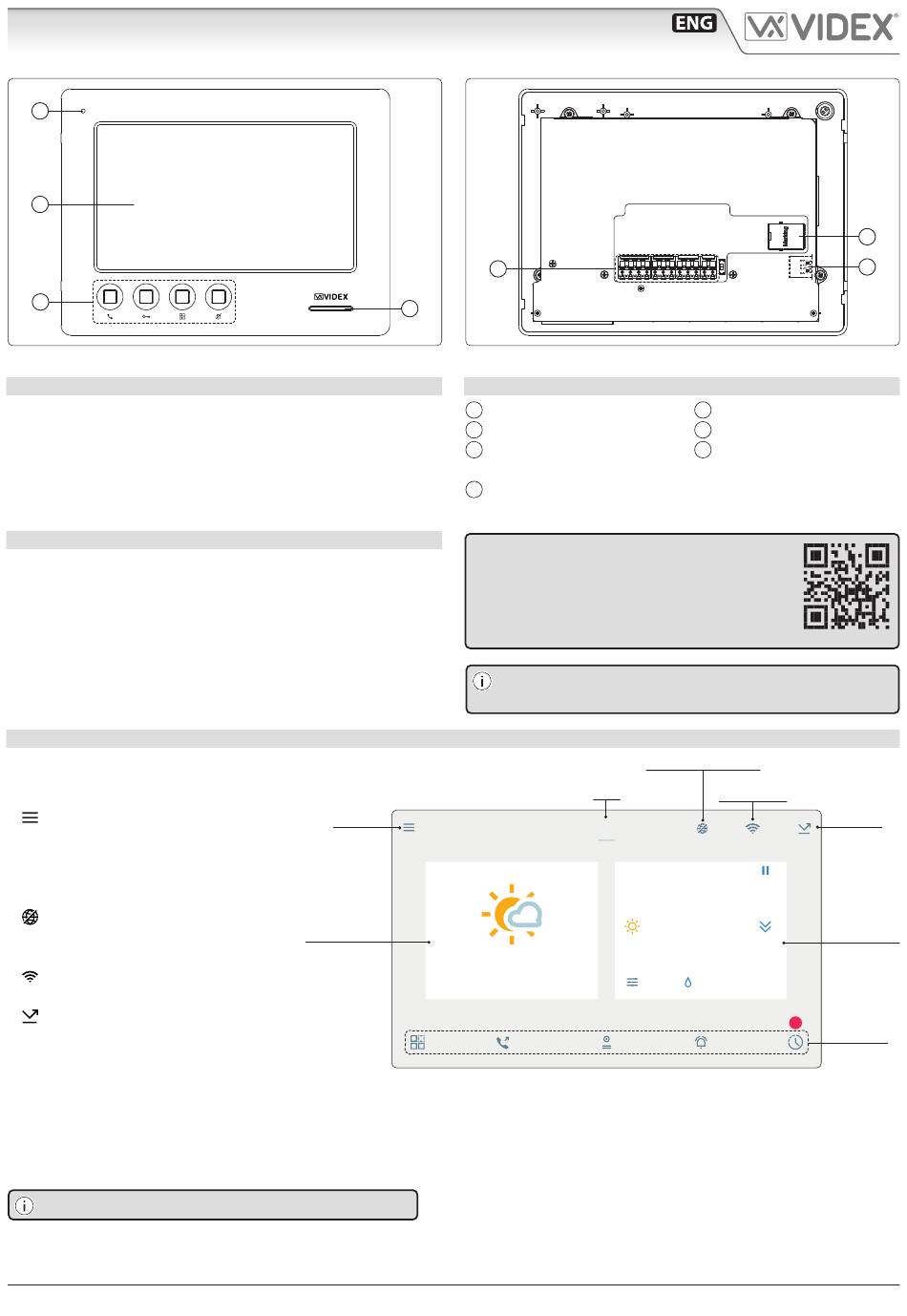

Fig. 1 Front
DESCRIPTION
7" TFT high-resolution LCD monitor, OSD capacitive touch
screen, 4 buttons configurable for functions: door open, inter-
com call, auto start, camera switching, timed privacy service.
12Vdc or PoE power supply.
2 inputs / 2 outputs.
Wall mounted, white or black finish.
VIDEOPHONE INITIALISATION
If powering on the videophone (through a PoE switch/router or
an external power supply unit) the display shows the message
"DEVICE NOT INITIALISED", use the configuration software IPure
Wizard to setup the device and the system.
HOME SCREEN
The Home screen (Fig. 3) includes naviga-
tion buttons, control buttons and general
information:
• Menu button
Navigate to other screens (for details see
"Menu" on pag. 4).
• Current time
(to set see "Date and time" on pag. 6).
• No connection icon
It will appear if there isn't any internet
connection.
• Wi-Fi signal level
It indicate the level of Wi-Fi signal.
• Missed calls button
View missed calls and access Event log screen
(for details see "Event log" on pag. 3).
• Date, weather information and location
(to set see "Weather location" on pag. 6).
• Thermostat
(for details see "Thermostat" on page 11).
• Control touch buttons
(for details see "Control touch buttons" on pag. 2).
If the display is in standby, simple tap it to activate.
Art. 6798 - Installation instructions
D
Fig. 2 Front
LEGEND
A
B
C
D
To download the programming software
IPure Wizard and obtain the latest firmware
and manuals please visit the following web-
site and register
https://service.videx.it/
Menu
button
Monday, July 31, 2023
Date,
weather
and location
info
- 1 -
E
Microphone
Touchscreen display
Physical programmable
buttons
Speaker
The informations contained in this manual are valid
for devices with software version 1.6.0 and later.
No connection icon
Time
11:12
Summer program
23
23 °C
NW 5.6 km/h
London
Fig. 3
Rev.0.1
F
G
Connection terminals
E
Ethernet connector
F
USB connector for Wi-Fi
G
optional dongle
Wi-Fi
signal level
Missed
calls
button
23°
o
.0
Thermostat
22°
45%
Control
touch
14
buttons
66251910 - V2.0 - 30/03/23
