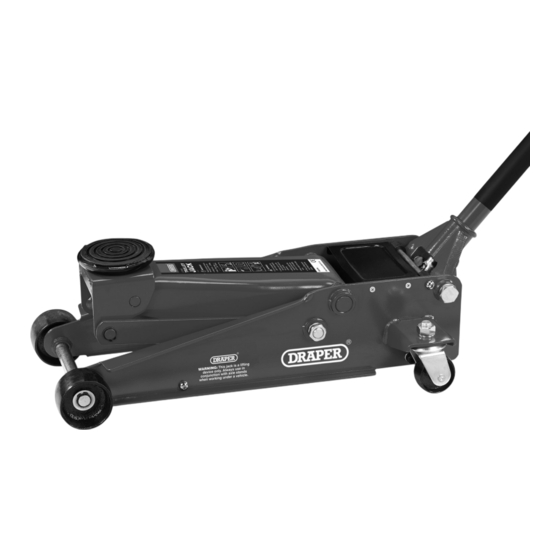

3 TONNE
TROLLEY JACK
16407
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 16407
Summary of Contents for Draper 16407
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
2. CONTENTS 2.1 CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION ......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
4. INTRODUCTION 4.1 SCOPE This jack is designed for light duty domestic use. To lift vehicles to the maximum stated weight limit. 4.2 SPECIFICATION Stock No: ...........................16407 Part No: ..........................TJ3HD/C Rated load ..........................3000kg Maximum lifting range ....................133 – 465mm Warning –... -
Page 6: Health & Safety Information
Transmission should be in gear (or ‘Park’ should be securely blocked with wheel for automatic transmissions) and the chocks (Draper Stock No.54500). handbrake applied. 5.2 CORRECT POSITIONING: The jack should be positioned under the approved lifting points for the vehicle. Since these points may vary with each vehicle, it is important to refer to the vehicle manufacturer’s or Haynes... -
Page 7: Working Under The Vehicle
5. HEALTH AND SAFETY INFORMATION 5.5 WORKING UNDER THE VEHICLE: It is extremely important, when working under the vehicle, to ensure axle stands are always used. 5.6 SAFETY PRECAUTIONS 1. The vehicle to be lifted should never exceed the rated capacity of the jack. 2. -
Page 8: Operating
6. OPERATING INSTRUCTIONS 6.1 OPERATING 1. Prior to operating the jack, remove any accumulated air from the system as follows: 2. Handle assembly: – Join two halves of the handle shaft and secure with bolt provided. – Insert handle shaft into base socket and secure with bolt. 3. -
Page 9: Maintenance
7. MAINTENANCE 7.1 MAINTENANCE 1. Important: Both the maintenance and repair of the jack may only be performed by qualified persons, who have sufficient knowledge of the hydraulic systems used in these devices as a result of their training and experience. 2. -
Page 10: Disposal
8. DISPOSAL 8.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●... - Page 11 NOTES - 11 -...
