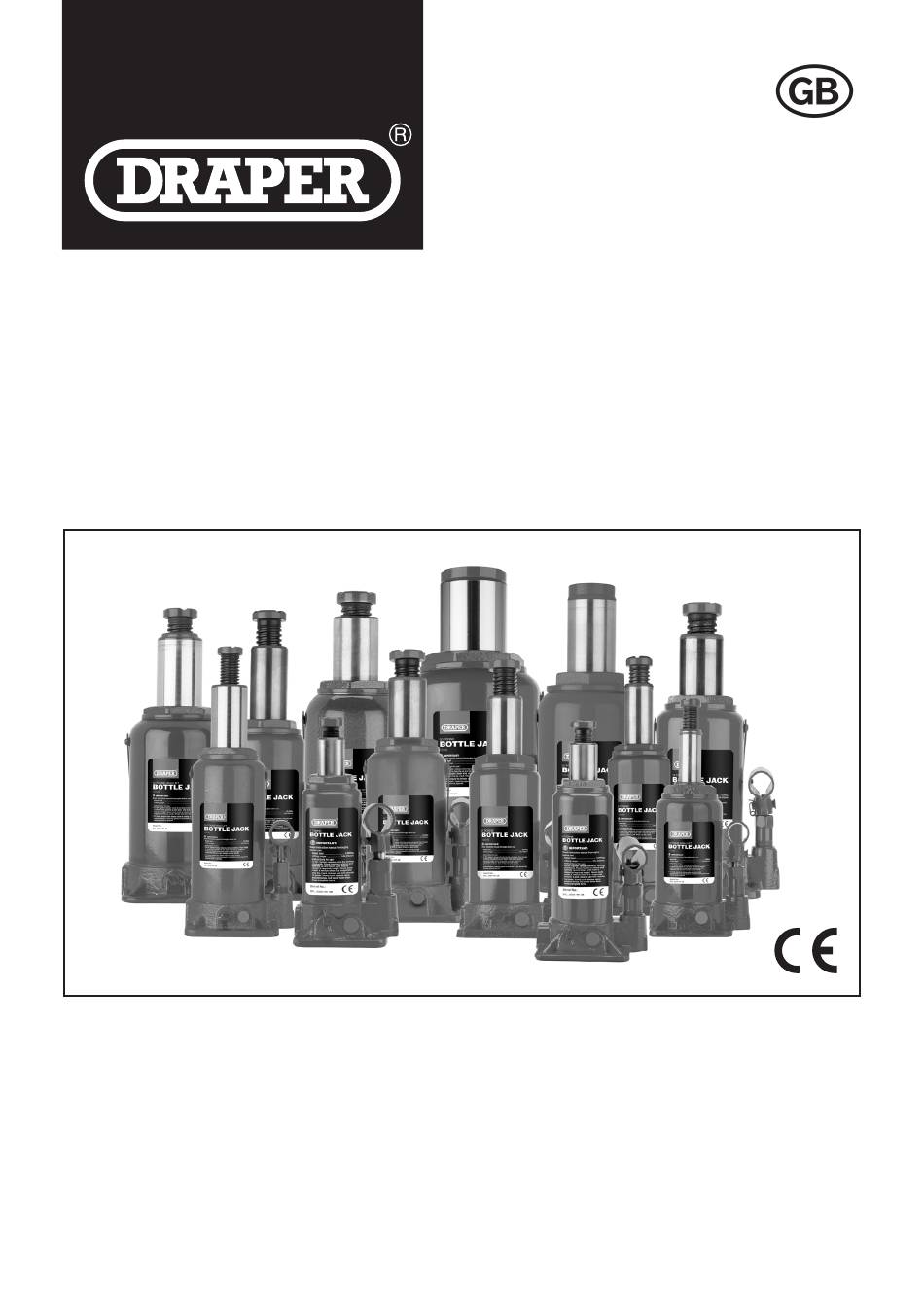

BOTTLE JACKS
13064, 13066, 13069, 13070, 13072, 13073, 13074, 13103,
13104, 13105, 13107, 13117, 13126.
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 13064
Summary of Contents for Draper 13064
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page 1.1 Introduction
TITLE PAGE 1.1 INTRODUCTION: USER MANUAL FOR: Bottle Jacks Stock No’s: 13064, 13066, 13069, 13070, 13072, 13073, 13074, 13103, 13104, 13105, 13107, 13117, 13126. Part No’s: BJ2-B, BJ4-B, BJ6-B, BJ8-B, BJ10-B, BJ12-B, BJ16-B, BJ20-B, BJ32-B, BJ50-B, BJ4HL-B, BJ10HL-B, BJ12HL-C. 1.2 REVISIONS: Date first published July 2018. -
Page 3: Table Of Contents
CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. WARRANTY 3.1 WARRANTY......................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 5. -
Page 4: Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
Any application other than that it was intended for, is considered misuse. 4.2 SPECIFICATION Stock No. Part No. Lift Capacity Minimum Height Max. Height Net Weight (Tonne) (mm) (mm) (kg) 13064 BJ2-B 13066 BJ4-B 13069 BJ6-B 13070 BJ8-B 13072 BJ10-B 13073 BJ12-B 13074... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 HEALTH AND SAFETY INFORMATION The vehicle to be lifted should never exceed the rated capacity of the jack. The maximum lift height of the jack indicated on the label should never be exceeded. The jack should be supported on a solid, level and horizontal surface which is well illuminated and free of obstructions. -
Page 7: Before Use
BEFORE USE 6.1 PURGING AIR FROM HYDRAULIC SYSTEM During transportation air bubbles become trapped inside the jack pump, reducing its efficiency. Bleed air out of the jack's hydraulic system as follows: Open release valve. Operate pump handle rapidly for a minimum of 15 full strokes to force air out. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE 7.1 TO RAISE – STEPS 1–2: With narrow end of jack handle , close release valve tightly by turning it clockwise. Place jack under vehicle at proper lifting location. (Refer to vehicle Owner's Manual). If fitted, turn the extension screw on jack counterclockwise until it comes into contact with vehicle. -
Page 9: To Lower
7.2 TO LOWER CAUTION: Lower vehicle slowly! Turn release valve slowly. Ensure there are no obstructions, tools or persons below the vehicle BEFORE lowering. Remove handle, use small end to open release valve. (To open release valve, turn it SLOWLY in a counter clockwise direction.) NOTE: Do not open release valve more than one (1) full turn. -
Page 10: Maintenance
MAINTENANCE 8.1 MAINTENANCE IMPORTANT: Both the maintenance and repair of the jack may only be performed by qualified persons, who have sufficient knowledge of the hydraulic systems used in these devices as a result of their training and experience. Keep the jack clean and lubricate all moving parts at regular intervals (4), which must be clean and protected from aggressive conditions at all times. -
Page 11: Troubleshooting
TROUBLESHOOTING 9.1 TROUBLESHOOTING Troubleshooting Check List Release valve may not be tightly closed. Jack may be low on oil. Remove filler plug and fill reservoir with clean hydraulic jack oil. Reservoir may be overfilled. Remove filler plug and drain excess oil. Jack may be air-bound. - Page 12 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
