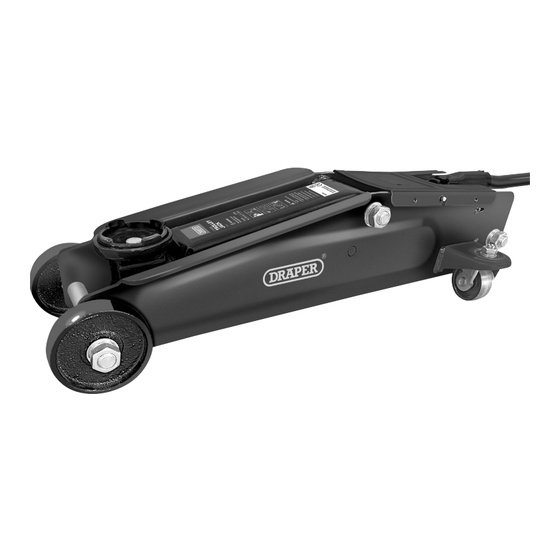

- Page 1 Original Instructions Version 2 3 TONNE TROLLEY JACK 27635...
-
Page 2: Preface
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
Read this manual in full before assembling, operating or Any other application beyond the conditions established maintaining the product, and retain it for later use. for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. -
Page 4: Explanation Of Symbols
4. Explanation of Symbols Read the instruction manual Warning! Mandatory action required Minimum height Do not abandon in the environment Use only on level surfaces Apply the handbrake and put the vehicle in gear Chock all grounded wheels Support raised vehicles with axle stands Do not work under vehicles when supported only by a jack European Safety requirements for jacks/... -
Page 5: Health And Safety Information
Failure to follow these instructions may result in injury or damage to the user, the product or the vehicle to be lifted. Draper Tools accepts no responsibility for improper use of this jack. 5.1 General Health and Safety Precautions • Only authorised personnel who have carefully read... -
Page 6: Correct Use Of The Jack
5. Health and Safety Information 5.3 Correct Use of the Jack • ONLY operate the jack on solid, level and horizontal surfaces. − A concrete surface is recommended, where possible. − All four wheels of the jack should be in contact ... -
Page 7: Identification And Unpacking
6. Identification and Unpacking 6.1 Product Overview (10) (11) (14) (13) (12) Cylinder pump Reservoir Release valve Frame (11) Lifting arm Base Front wheels (12) Cover plate Castors Radius link (13) Handle sleeve Oil filler plug (10) Saddle (14) Jack handle 6.2 Packaging WARNING! Keep packaging materials out of Keep the product packaging for the duration of the... -
Page 8: Operating Instructions
7. Operating Instructions Important: Before lifting any load, read and understand 3. Twist the handle shaft clockwise until strong all the safety instructions listed in this manual. ALWAYS resistance is felt. bleed the jack piston before use. 4. Pump the handle shaft up and down until contact is 7.1 Preparing the Jack made with the vehicle and check that the saddle (10) is positioned correctly. -
Page 9: Maintenance And Troubleshooting
The components may rust if exposed to damp air for prolonged periods. • Use only spare parts supplied by Draper Tools. • Before each use, check the jack for signs of damage or disrepair. -
Page 10: Troubleshooting
DO NOT adjust the overload valve. DO NOT use the jack. Contact The piston system is corroded. Draper Tools to discuss repair or replacement options. The saddle drops once lifted. The release valve is not fully closed. -
Page 11: Warranty
This warranty period covers parts and labour for 12 months from the date of purchase. Your Draper Tools guarantee is not effective until you can Where tools have been hired out, the warranty period produce, upon request, a dated receipt or invoice to covers 90 days from the date of purchase. - Page 12 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Service / Warranty Repair Agents For aftersales servicing or warranty repairs, please contact the Draper Tools Product Helpline for details of an agent in your area. © Published by Draper Tools Limited...
