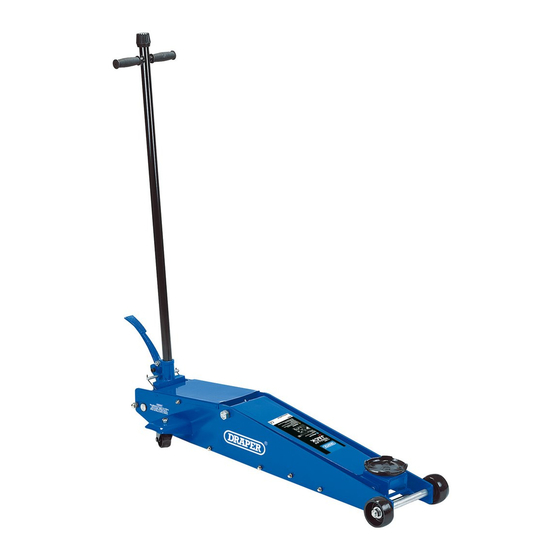

2, 3, 5 & 10 TONNE
TROLLEY JACKS
03461, 03463, 03467 & 03494
IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save
these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the
product with which it is enclosed and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 03461
Summary of Contents for Draper 03461
- Page 1 IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
2. CONTENTS 2.1 CONTENTS ................Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY ..................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE...................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
4.1 SCOPE This jack is designed to lift vehicles to the maximum stated weight limit and height. 4.2 SPECIFICATION Stock No: ......03461....03463....03467....03494 Part No: ........ TJ2LR....TJ3LR ....TJ5LR ..... TJ10LR Rated load ......2,000kg ....3,000kg ....5,000kg ..10,000kg Maximum lifting range .. -
Page 6: Health & Safety Information
(Draper Stock No.54500). 2 - CORRECT POSITIONING: The jack should be positioned under the approved lifting points for the vehicle. Since these points may vary with each vehicle, it is important to refer to the vehicle manufacturer’s or Haynes workshop manuals. -
Page 7: Safety Precautions
5. HEALTH & SAFETY INFORMATION 5 - WORKING UNDER THE VEHICLE: It is extremely important, when working under the vehicle, to ensure axle stands are always used. 5.1 SAFETY PRECAUTIONS 1. The vehicle to be lifted should never exceed the rated capacity of the jack. 2. -
Page 8: Operating Instructions
6. OPERATING INSTRUCTIONS 6.1 OPERATING 1. To assemble the jack, loosen collar screw and insert handle into socket, ensuring it is correctly aligned. Tighten collar screw and ensure correct operation of pressure relief knob. 2. Prior to operating the jack, remove any accumulated air from the system as follows: Loosen the pressure relief knob anti-clockwise, whilst held in this position, pump the jack several times to ensure internal lubrication and bleed the accumulated air from the system. -
Page 9: Maintenance
7. MAINTENANCE 7.1 MAINTENANCE 1. IMPORTANT: Both the maintenance and repair of the jack may only be performed by qualified persons, who have sufficient knowledge of the hydraulic systems used in these devices as a result of their training and experience. 2. -
Page 10: Disposal
8. DISPOSAL 8.1 DISPOSAL At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 11 NOTES...
- Page 12 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd. DBMC0217...
