Summary of Contents for Draper 28497

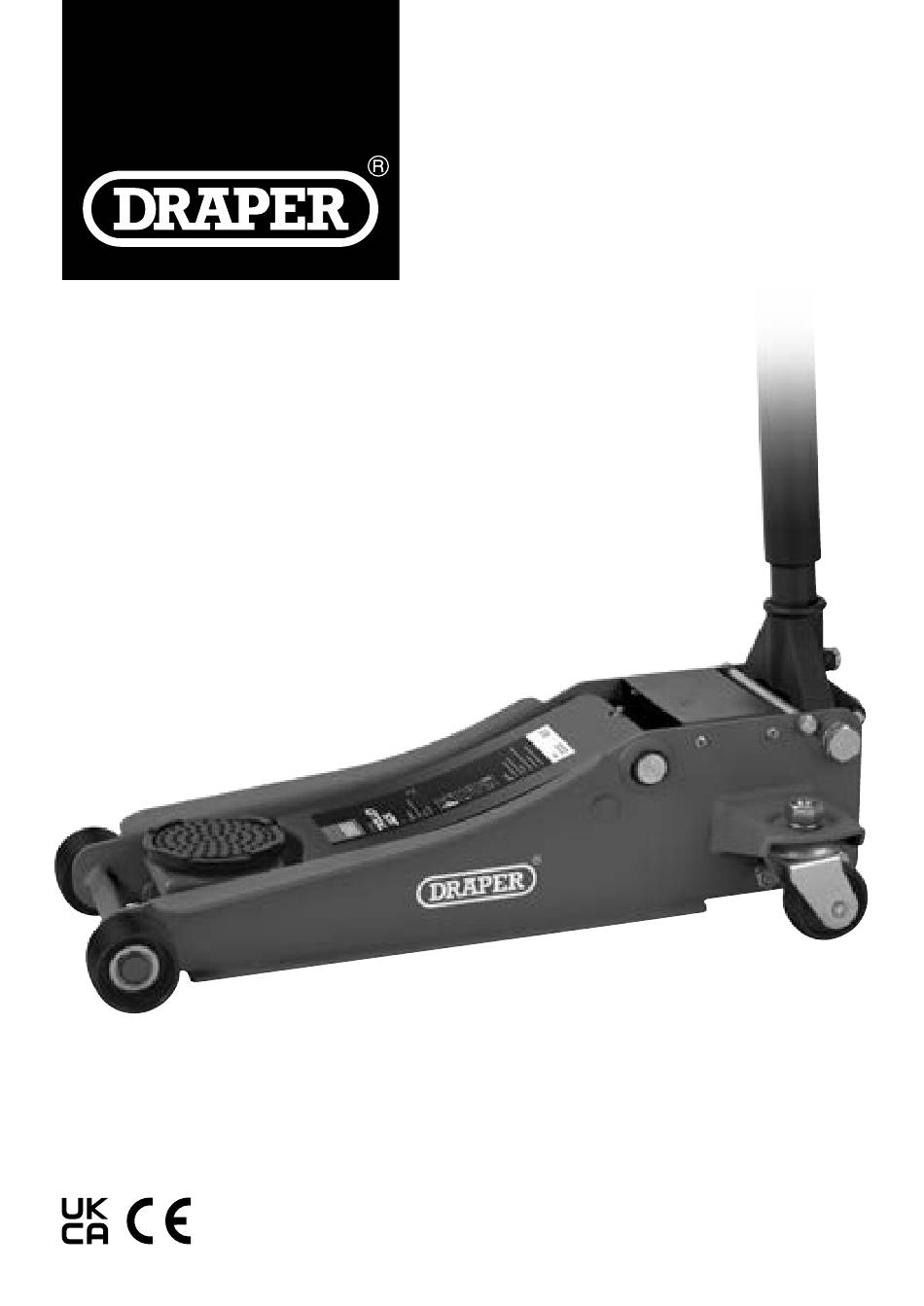

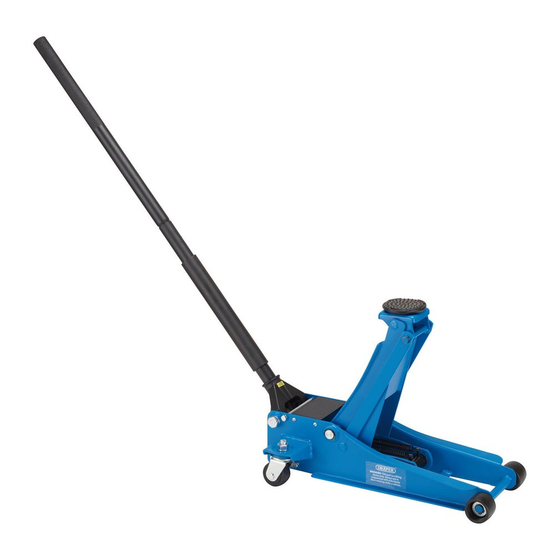

- Page 1 Original Instructions Version 1 2 TONNE TROLLEY JACK 28497...
-
Page 2: Preface
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content 1.4 Copyright © Notice 2. Contents 3. Warranty 4. Product Introduction 4.1 Scope 4.2 Specification 5. Health and Safety Information 5.1 General Health and Safety Precautions 5.2 Preparing the Vehicle to be Lifted 5.3 Correct Use of the Jack 6. Identification and Unpacking... -
Page 4: Warranty
This warranty period covers parts and labour for 12 months from the date of purchase. Your Draper Tools guarantee is not effective until you can Where tools have been hired out, the warranty period produce, upon request, a dated receipt or invoice to covers 90 days from the date of purchase. -
Page 5: Product Introduction
WARNING! This product is not a toy and must be other application beyond the conditions established for respected. use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. Read this manual in full before attempting to assemble, operate or maintain the product, and retain it for later use. -
Page 6: Health And Safety Information
Non-compliance with these instructions may result in injury or damage to the user, the product or the vehicle to be lifted. Draper Tools accepts no responsibility for improper use of this jack. 5.1 General Health and Safety Precautions • Only authorised personnel who have carefully read... -
Page 7: Correct Use Of The Jack
5. Health and Safety Information 5.3 Correct Use of the Jack • ONLY operate the jack on solid, level and horizontal surfaces. − A concrete surface is recommended, where possible. − All four wheels of the jack should be in contact ... -
Page 8: Identification And Unpacking
6. Identification and Unpacking 6.1 Product Overview (11) (10) (11) Handle shaft (7) Oil filler plug Handle socket Overload valve screws Lifting arm Pump cover plate Saddle (10) Caster bolts Grease nipple (11) Wheels Fulcrum bar – 8 –... -
Page 9: What's In The Box
If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. 1 x Base unit... -
Page 10: Operating Instructions
Important: The handle shaft should be securely Repeat this process if necessary. If the issue is not fastened but able to be twisted without excessive resolved after several attempts, contact Draper Tools force. Overtightening may prevent movement of for assistance. -
Page 11: Raising A Load
7. Operating Instructions Fig. 3 Pumping the handle shaft down and up raises the lifting arm if the release valve is closed (Fig. 3). 7.2 Raising a Load 7.3 Lowering a Load WARNING! Always ensure that there are no persons or 1. -
Page 12: Maintenance
• Remove bolt (E) and detach the handle shaft (1). for prolonged periods. • Ensure that the lifting arm (3) is fully lowered • Use only spare parts supplied by Draper Tools. and apply an anti-corrosion product to the pistons if appropriate. • Before each use, check for bent, broken, cracked or loose parts, and ensure that the wheels rotate freely. -
Page 13: Troubleshooting
The piston system is corroded. DO NOT use the jack. Contact Draper Tools to discuss repair or replacement options. The saddle drops once lifted. The release valve is not fully closed. Twist the handle shaft clockwise until strong resistance is felt and bleed the piston if necessary. -
Page 14: Disposal
9. Disposal At the end of its working life, or when it can no longer be repaired, dispose of the jack according to local regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: • DO NOT dispose of this product with domestic waste • DO NOT incinerate • Before decommissioning, drain and dispose of the oil... -
Page 15: Explanation Of Symbols
10. Explanation of Symbols Read the instruction manual Warning! Do not incinerate or throw onto fire Do not abandon in the environment Use only on level surfaces Apply the handbrake and put the vehicle in gear Chock all grounded wheels Support raised vehicles with axle stands Do not work under vehicles when supported only by a jack –... - Page 16 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Service / Warranty Repair Agents For aftersales servicing or warranty repairs, please contact the Draper Tools Product Helpline for details of an agent in your area. © Published by Draper Tools Limited...
