- Page 1 Original Instructions Version 1 – July2023 10 TONNE LOW PROFILE BOTTLE JACK 08554...
-
Page 2: Copyright © Notice
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Scope 3.2 Specification 4. Health and Safety Information 4.1 General Health and Safety 4.2 Preparing the Vehicle to be Lifted 4.3 Correct Use of the Jack 5. -
Page 4: Product Introduction
Any use. other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. -
Page 5: Health And Safety Information
Draper Tools accepts no responsibility for improper use of this jack. • Ensure that there is no one inside the vehicle. -
Page 6: Correct Use Of The Jack
4. Health and Safety Information 4.3 Correct Use of the Jack Important: The jack is a lifting device ONLY and should never be used to move the vehicle. The vehicle to be lifted should never exceed the rated capacity of the jack. • ALWAYS bleed the jack piston before use. -
Page 7: Identification And Unpacking

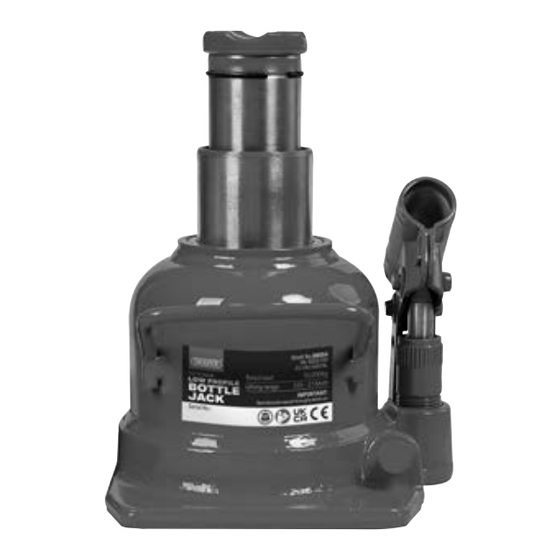

5. Identification and Unpacking 5.1 Product Overview Pump handle Handle socket Saddle Release valve Oil fill plug Carry handle – 7 –... -
Page 8: What's In The Box
If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. Bottle jack Handle 5.3 Packaging... -
Page 9: Preparation Instructions
Pump the handle down and up at least 15 times to air will hiss as it leaves the chamber. lubricate the piston and expel any accumulated air. Repeat this process if necessary. If the issue is not resolved after several attempts, contact Draper Tools for assistance. Fig. 7 ... -
Page 10: Operating Instructions
7. Operating Instructions 7.1 Raising a Load WARNING! For high lift jacks, please observe 1. Position the jack directly beneath the the following: approvedvehicle lifting point. See the vehicle − DO NOT lift to full height without load. manufacturer information for the approved lifting points. -
Page 11: Maintenance And Troubleshooting
Manoeuvre the jack so that the oil can flow freely • Use only spare parts supplied by Draper Tools. out of the oil fill plug opening into a suitable • Before each use, check the jack for signs of damage or container. -
Page 12: Troubleshooting
Use an appropriately rated jack or reduce the weight of the load. DO NOT exceeded. adjust the overload valve. DO NOT use the jack. Contact Draper The piston system is corroded. Tools to discuss repair or replacement options. The saddle drops once lifted. -
Page 13: Spares, Returns And Disposal
Helpline for details of your nearest authorised agent. where possible. Draper Tools will endeavour to hold any spare parts, if Dispose of oil separately and in accordance with local applicable, for seven years from the date that it sells the regulations;... -
Page 14: Explanation Of Symbols
11. Explanation of Symbols European conformity Read the instruction manual Warning! UK Conformity Assessed Do not abandon in the environment Do not incinerate or throw onto fire Use only on level surfaces Apply the handbrake and put the vehicle in gear Chock all grounded wheels Support raised vehicles with axle stands Do not work under vehicles when... -
Page 15: Notes
Notes – 15 –... - Page 16 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
