L854300138
07/2020 rev 1
EVA.5
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE
SERRANDE ED AFFINI
IT
EN
DE
FR
ES
PL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVA.5 and is the answer not in the manual?

Questions and answers

Related Manuals for Beninca EVA.5

Summary of Contents for Beninca EVA.5

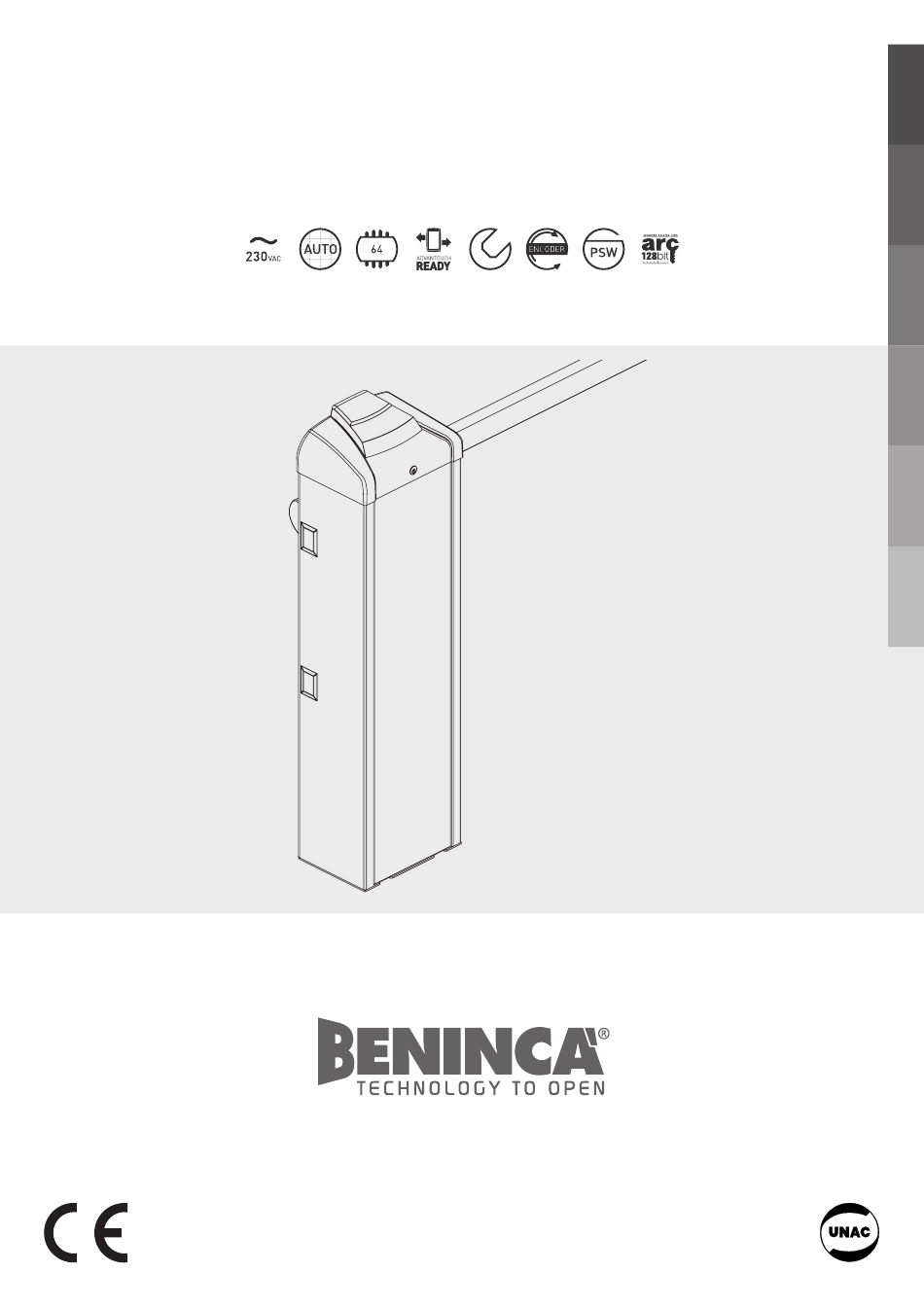

  • Page 1 L854300138 07/2020 rev 1 EVA.5 UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
  • Page 3 235mm 320mm Min 2,75m - Max 4,75m 1200 EVA.5 - RIGHT EVA.5 - LEFT (STANDARD)
  • Page 4 EVA.5 - LEFT EVA.5 - RIGHT (STANDARD) ATTENZIONE PARTI IN MOVIMENTO PERICOLOSE TENERE LE MANI LONTANE WARNING HAZARDOUS MOVING PARST KEEP FINGER AND OTHER BODY PARTS AWAY VORSICHT GEFÄHRLICHE BEWEGLICHE TEILE HALTEN SIE DIE HÄNDE WEG PRECAUCIÓN PIEZAS PELIGROSAS EN MOVIMIENTO...
  • Page 5 30mm Posa della piastra di fondazione VE.PS (opzionale) Foundation plate positioning VE.PS (optional) Montage der Fundamentplatte VE.PS (option) Mise en place de la plaque de fondation VE.PS (optionnel) Posicionamiento de la placa de alimentación VE.PS (opcional) Ułożenie płyty fundamentowej VE.PS (opcjonalma)
  • Page 7 Slow-down Open (SLDo) Slow-down Close (SLDC)
  • Page 8 FTC.S 2,9x16 FTC.S 2,9x16 Line 3x1,5mm Photo TX 2x0,5mm Photo RX 4x0,5mm EVA.Led 2x0,5mm SC.EN 2x0,5mm...
  • Page 9 - 24V + AUX2 BLINK 2xDA.BT2 (Optional) MENC ABS. ENCODER (Optional) CP.EVA2 LED 2 24Vdc 500 mA LED 1 - 24V + SA.24V LIGHT LAMP. 24Vdc 24Vdc AUX2 BLINK 100÷250 Vac...
  • Page 10 Schema menu di programmazione - Menu programming layout Diagramm Programmiermenü - Menu de programmation Display OFF Menú de la carta de programación - Układ menu programowania Power ON v1. 0 5 Firmware Ver. (3s) 8888 Inst Boom Diagnostic ---0 0--- IBCA Mode Parc...
  • Page 11 Nman 0012 3456 MACI 2 Cycle AUTO PUSH OPEN/CLOSE RE-ENTER CODE 0000 9000 9C5a conf CODE Display OFF Inst Legenda Premere il tasto (-) / Press key (-) / Die Taste (-) drücken Appuyez sur la touche (-) / Presionar la tecla (-) / Wcisnąć przycisk (-) PUSH Premere il tasto (+) / Press key (+) / Die Taste (+) drücken Appuyez sur la touche (+) / Presionar la tecla (+) / Wcisnąć...
  • Page 12 PHOTOTEST AUX1:0000 AUX1:0004 24Vdc tst1:on AUX1 AUX1 PHOT 24Vdc 24Vac LAMP SERVICE LIGHT AUX1:0003 24Vdc 24Vac NC NO 24Vac AUX1 Relè 24Vdc 230Vac LAMP MASTER SLAVE Menu Menu ID=0 ID=1 3x0,5mm GND B A GND B A...
  • Page 13 13.8) DIAGNOSTICA LED 1 : Presenza alimentazione di rete LED 2 : Centrale di comando CP.EVA2 alimentata correttamente SW Open SW Close Ad ogni ingresso è associato un segmento del display che in caso di attivazione si accende, secondo P.P. OPEN CLOSE il seguente schema.

  • Page 14: Table Of Contents

    INDEX 1) DESCRIPTION ......................23 13.3.1) INSTALLATION (INST) ............... 26 2) DIMENSIONS......................23 13.3.2) PARAMETERS (PAR) ................26 3) ARC COMPATIBLE CONTROL UNIT ................23 13.3.3) LOGICS (LOG) ................... 27 4) OPENING ........................23 13.3.4) RADIO (RADI) ................... 28 5) LEFT-RIGHT BARRIER (FIG. 3/4) ................24 13.3.5) CYCLES NUMBER (NMAN) ..............

  • Page 15: Description

    Every utilization different from the one described in this instruction manual is not allowed and voids the manufacturer warranty. We would like to remind you that if you register on the site www.beninca.com you will have access to the technical documentation updated for all the Benincà...

  • Page 16: Left-Right Barrier (Fig. 3/4)

    Conventionally it is considered right a barrier which seen from the side of the cabinet door, closes the passage by lowering the boom towards right. However it is possible to reverse the barrier movement and turn a right barrier into a left one by means of few easy operations (Fig. 3 B : EVA.5 LEFT).

  • Page 17: Wire Diagram (Fig.14)

    12) WIRE DIAGRAM (FIG.14) This figure shows an installation example of road barrier with its main accessories. 1 Control unit CP.EVA2 2 Receiver photocell FTC.S 3 Transmitter photocell FTC.S 4 Emergency batteries that can be installed inside the container of the control unit DA.BT2 5 EVA.LAMP flashing light card 6 Safety edge resistive type (8K2) 7 Control unit for safety edge management SC.EN...

  • Page 18: 1) Installation (Inst)

    13.3) PARAMETERS, LOGICS AND SPECIAL FUNCTIONS The following tables describe the functions available on the control unit 13.3.1) INSTALLATION (INST) MENU FUNCTION MIN-MAX-(Default) MEMO Select the length of the boom installed on the barrier. BOOM Value expressed in meter from 3m to 5m (EVA5) or from 7m to 8m (EVA7) 3/5 -7/8 (3-5) According to the selected boom length, the optimal value of speed will be set.

  • Page 19: 3) Logics (Log)

    Selects the functioning mode of the auxiliary output 1 (N.O. clean contact) 0: Open barrier light, close contact when the barrier is open, open contact when the barrier is close, intermittent during the maneuver (fig. 15, SCA) 1: Second radio cannel of the built in receiver 2: Boom light, for controlling the LED light installed on the BOOM (EVA.LED), see also the parameter LBAR.

  • Page 20: 4) Radio (Radi)

    13.3.4) RADIO (RADI) MENU FUNZIONE By selecting this function, the receiver goes in waiting (Push) for a transmitter code to assign to the step-step function. Press the key of the transmitter to assign to this function. If the code is valid, it is memorised and the message OK is displayed If the code is not valid, the message Err is displayed By selecting this function, the receiver goes in waiting (Push) for a transmitter code to assign to the OPEN function.

  • Page 21: 9) Password (Code)

    13.3.9) PASSWORD (CODE) It allows to type in an access protection code to the programming of the control unit. A four-character alphanumeric code can be typed in by using the numbers from 0 to 9 and the letters A-B-C-D-E-F. The default value is 0000 (four zeros) and shows the absence of a protection code. While typing in the code, this operation can be cancelled at any moment by pressing keys + and –...

  • Page 22: Diagnostics

    13.8) DIAGNOSTICS LED 1 : Presence of mains voltage SW Open SW Close LED 2 : Control unit CP.EVA2 correctly powered P.P. OPEN CLOSE To each input is associated a line of the LCD screen which in case of activation it turns on according to the following diagram.
  • Page 23 EVA.5 USER’S HANDBOOK SAFETY MEASURES • Do not stand within the gate movement area. • Children must not play with controls and near the gate. • In the event of malfunctions, do not attempt to repair the failure but contact the specialised personnel.
  • Page 24 EVA.5 Ref. Note Code 9686428 9686429 9688240 9686431 968600914 9686433 9686434 9688204 9688205 968601526 9686248 968601527 ENCODER 9686437 9686666...
