Euroboor ECO.130S/T User Manual

Magnetic drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

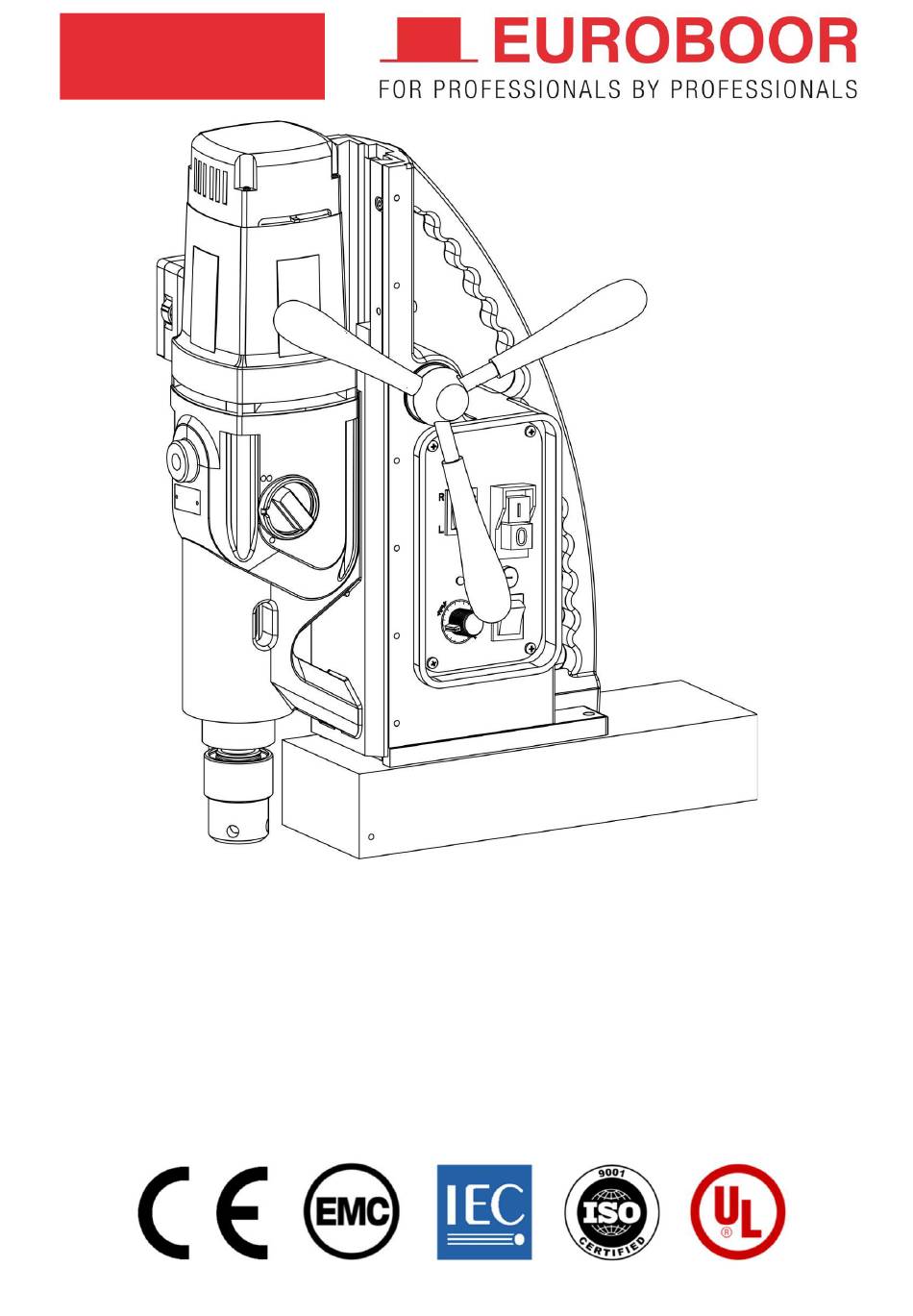

User manual
V 1.0 EN | March 2025
Magnetic drilling machine
ECO.130
S/T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO.130S/T and is the answer not in the manual?

Questions and answers

Related Manuals for Euroboor ECO.130S/T

Summary of Contents for Euroboor ECO.130S/T

  • Page 1 User manual V 1.0 EN | March 2025 Magnetic drilling machine ECO.130...
  • Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.

  • Page 3: Table Of Contents

    Table of contents Table of contents........................3 1. Safety ............................. 4 1.1 General safety instructions ....................... 4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Description and features ......................8 2.3 Case content ..........................9 2.4 Serial number ...........................

  • Page 4: Safety

    1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION.
  • Page 5 Personal safety 1. Stay alert, watch what you are doing and use common sense when using a magnetic drilling machine. Do not use the machine while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating a magnetic drilling machine may result in serious personal injury;...

  • Page 6: Specific Safety Information

    • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well- considered cooling and lubrication products to match your requirements;...
  • Page 7 • Before use, ensure movable safety guard operates properly; • In case of a jammed cutter, turn of the machine, disconnect the machine from the power supply and then remove the reason for the jam before turning on the machine again.

  • Page 8: Description

    EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features...

  • Page 9: Case Content

    2.3 Case content 1 x ECO.130 Magnetic drilling machine 3 x handles 1 x side handle M12 1 x hex key 2.5 mm 1 x hex key 4 mm 1 x hex key 5 mm 1 x hex key 6 mm 1 x lubrication system 1 x safety chain 1 x arbor MT 4 - 31.75 (1 1/4"), including lubrication ring...

  • Page 10: Serial Number

    Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine.
  • Page 11 Be sure to read the documentation in this user manual and specifically the “General safety Read documentation instructions” and ‘’Specific safety information’’ Use ear protection during operation Wear ear protection Use eye protection during operation Wear eye protection Read and apply the information in the adjacent Danger/warning/caution text! Confirms the conformity of the magnetic drilling...

  • Page 12: Environmental

    Revolutions per minute Unit of measure for the revolutions 2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

  • Page 13: Preparation & Adjustment

    3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury.

  • Page 14: Prior To Use

    The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required.
  • Page 15 If the supply cord is damaged, it must be replaced by a specially prepared cord available at EUROBOOR or your EUROBOOR dealer. Extension cable If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this machine (see technical data).The minimum conductor size is 1.5 mm²; the maximum length is 30 metre.

  • Page 16: Using The Machine

    4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety.
  • Page 17 [image 4-2] The electromagnet will work best on surfaces of at least 10 mm (3/8") thickness. When the electromagnet is not able to create a good enough magnetic field, this may be caused by: Surface not being flat; Workpiece is not magnetisable (e.g. aluminium); Workpiece is coated or painted;...

  • Page 18: Morse Taper Spindle

    Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. EUROBOOR magnets have two coils; make sure that both coils are in contact with the material. Do not connect any other machine to the same electrical outlet to which the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force.

  • Page 19: Switching Motor On And Off

    1. To select the correct gear from neutral (horizontal) position: a. Rotate the switch counter clockwise to position o; b. Rotate the switch clockwise to position oo. 2. A gear is only correctly selected when the gearbox switches are both aligned with the indicators on the gearbox: In case you have trouble fully and correctly selecting a gear, the gears in the gearbox might be misaligned.

  • Page 20: Motor Rotation

    4.6 Motor rotation The rotational direction of the motor can be changed: Switch in up position (R) will make the motor rotate clockwise; Switch in down position (L) will make the motor rotate counter clockwise; Switch in middle position will not make the motor rotate (neutral position). Before switching the rotational direction of the motor and spindle, make sure the motor is switched OFF first, to prevent machine and tool damage.

  • Page 21: Overheat Protection

    * Disclaimer: EUROBOOR is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage and frequency spikes or fluctuations. EUROBOOR accepts no liability when it comes to the power surge or fluctuation protection not functioning or functioning poorly.

  • Page 22: Working With Drilling Accessories

    5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole.
  • Page 23 3. Use the pilot pin to position the machine in the correct position, with the tip of the pilot pin to meet the marked center of the hole; 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece;...

  • Page 24: Twist Drills

    5.2 Twist drills 1. Remove the Morse taper arbor (see paragraph 4.3 Gearbox); 2. Fit the twist drill: a. Straight shank twist drills; [image 5-2] b. Morse taper shank twist drills; [image 5-3] Morse taper 2 [image 5-4] Morse taper 3 3.

  • Page 25: Machine Taps

    Steps 4-12: see paragraph 5.1 Annular cutters. Make sure the machine runs at maximum speed for twist drills! 5.3 Machine taps The ECO.55S+/T model is also suited for counter clockwise rotation and can therefore also be used for cutting threads. Proceed as follows for cutting threads: 1.

  • Page 26: Countersinks

    Do not let your tap push up the motor unit by itself! Make sure to properly lubricate while performing tapping work, see paragraph 5.1 Annular cutters. 5.4 Countersinks Thanks to its wide range of operating speeds, the machine can also be used for reaming or counter-sinking.

  • Page 27: Maintenance

    6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs.
  • Page 28 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.

  • Page 29: Trouble Shooting

    7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the - Damaged or defective wiring motor does not work...
  • Page 30 Frame under voltage - Damaged / defective wiring - Defective magnet - Motor seriously dirty Fuse blows when magnet - Damaged or defective wiring switch is turned on - Wrong value fuse - Defective magnet switch - Defective control unit - Defective magnet Fuse blows when motor is - Damaged or defective wiring...

  • Page 31: Exploded Views & Spare Parts List

    8. Exploded views & spare parts list 8.1 Exploded views...
  • Page 33 8.2 Spare parts lists Part no. Description Part no. Description 130.1001 Motor unit 220V 050.0082 Screw-holder Circlip φ24 130.1001A Motor unit 110V 100.0426 Torx screw ST4.8 x 050.0106 130.0018-01 Gear 1.5*38T Gasket φ25*35*0.1mm 100.0322-01 End cover 100.0441 032.0116 Screw M4 x 16 100.0446 Bearing 6005DDU 100S.0340...
  • Page 34 Part no. Description Part no. Description 020.0063 Screw M5 x 10 032.1016A Main cable 110V USA 020.0298 Clamp 032.1016AU Main cable 220V AU 020.0289 Coolant hanger 032.1016F Main cable 220V UK Main cable 110V UK 020.0101 Screw M4 x 8 032.1016K Main cable 220V 16A 080.0016BX.5A...

  • Page 35: Wiring Diagram

    8.3 Wiring diagram...

  • Page 36: Warranty And Service

    8.4 Warranty and service Warranty Serial number : Date of purchase: ______________________________ This page is considered as a warranty card, if all the lines are filled correctly and if the original manual is present. The warranty period is 12 months from the date of sale . During the warranty period, the owner has the right to free elimination of hidden factory defects of the tools that prevent its normal operation.
