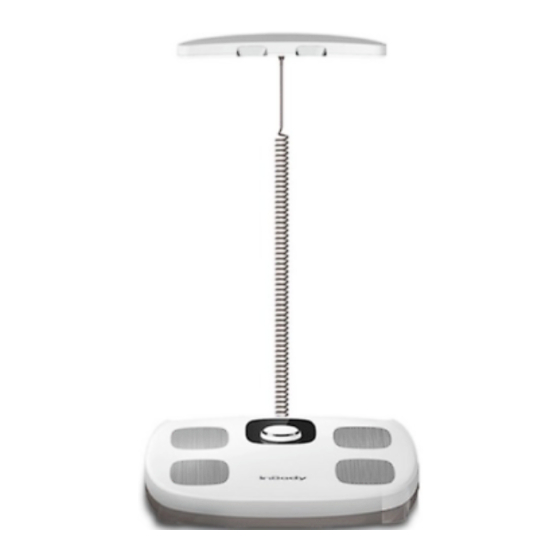

inbody H30NWi User Manual

Body composition analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H30NWi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody H30NWi

Summary of Contents for inbody H30NWi

  • Page 1 User Manual...
  • Page 2 InBody Test Posture Stretch your arms and keep them from touching your waist, Place your thumb on the square electrode and lift the handle to the same height as shown in the picture. Align the heel to the end of the developmental play.

  • Page 3: Table Of Contents

    4. In-body inspection method A. User-aware scanning B. Getting Started with Weighing C. Start Exam with Kidney Input D. Start a scan with the InBody app 5. Understanding the resulting items A. Configuring the Results Screen B. Understanding the resulting items C.

  • Page 4: Precautions For Use

    (heart pacemaker) may malfunction due to the flowing micro current, which may interfere with your life. INBODY Co., Ltd. shall not be liable for any damage to any human or device caused by failure to comply with the above precautions for use.

  • Page 5: Product Configuration

    2. Product Configuration Appearance and functionality The product configuration of H30NWi is as follows. Please check if there are all components. * Please check if there is no problem with each component before installation. If there is any problem, please contact InBody Customer Service.
  • Page 6 Be careful not to pull the cable too much. Pulling the handle too hard can cause the cable to stretch, leading to product failure. The extended cable will be restored over time, but please use it in the correct way. Please keep it like this.

  • Page 7: Precautions For Examination

    The InBody app allows you to record and manage InBody test results. (iOS 8 and later, Android 5.0 and later, available) ➊ The InBody app can be downloaded from the iPhone App Store and Google Play Store. ➋ Please download the app and register the user.
  • Page 8 C. Test Posture Position where Position with Position with one's Straight-arm arms and legs don't one's arms arms down too much posture stick together Bent arm position When measuring, try not to attach your arms to your stomach or lift them too high. The armpit should not touch the body.

  • Page 9: User-Aware Scanning

    4. InBody Inspection A. User-aware scanning Recognizing users and in-body scanning automatically logs data to the product to synchronize cumulative data at once. Nicknames must be registered to take advantage of user recognition. *Your nickname can be registered in the app.
  • Page 10 4. InBody Inspection ➌ Inspection progress: InBody inspection will be conducted for about 10 seconds. When the measurement is complete, the screen displays 100%. If 100% is indicated, step down from the scaffold. If your palms and soles are very dry or have a lot of dead skin cells on your feet, you may not be able to measure them.

  • Page 11: Getting Started With Weighing

    4. InBody Inspection B. Getting Started with Weighing ➊ Weighing: Press the tread plate and when the screen shows 0.0, step on it barefoot. After weighing, press the dial button or enter the height after 4 seconds. Let's move on.
  • Page 12 4. InBody Inspection C. Start Exam with Enter Input ➊ Enter height: Press the dial button to turn on the screen, turn the dial button left and right to enter the height. When entering the height, the height used in the previous measurement is displayed. Turn the dial button to enter your height and press the dial button or go to the weighing screen after 4 seconds.

  • Page 13: Start A Scan With The Inbody App

    4. InBody inspection method D. Start a scan with the InBody app ➊ Launch App: Please select a product from the app and start the inspection. Select a nickname, check your personal information, and start the scan. *Bluetooth must be turned on to run the exam with the app.

  • Page 14: Understanding The Resulting Items

    5. Understanding the resulting items A. Configuring the Results Screen Variation Value Result item Measurements ➊ Result Item Type The value of variation compared to the last measurement (increase : ▲ / fall : ▼ / - : no ➋ change) ➌...
  • Page 15 : Skeletal muscle mass attached to the bone is usually divided into cardiac muscle, smooth muscle, and skeletal muscle, and the muscle mass shown in InBody Dial is Skeleton Muscle Mass. Skeletal muscle mass is one of the muscles in the body that can be changed through exercise, and the muscle mass of the arms and legs is mainly skeletal muscle.

  • Page 16: Weight, Muscle Mass Standard Range Graph

    5. Understanding the resulting items C. Weight, Muscle Mass Standard Range Graph...

  • Page 17: Diagnosing And Resolving Problems

    6. Diagnosing and resolving problems A. Check Error Messages InBody displays an error message on the LCD screen if an abnormality occurs during use so that the user can take the necessary action. The following are typical error messages and actions.
  • Page 18 6. Diagnosing and resolving problems Low Battery ➌ This message is displayed when the battery is running low or when the battery is running low. If the message on the right is displayed, please replace the battery. The Wifi connection is temporarily lost. ➍...

  • Page 19: Simple Troubleshooting

    6. Diagnosing and resolving problems B. Simple troubleshooting Here are some of the problems you might encounter while using your product: If you can't solve the problem after checking the contents below, please contact the customer service center. Question 1. The in-body test is not available and the phrase 'Please check your thumb and heel' appears.

  • Page 20: Frequently Asked Questions

    Correlation refers to the correlation between the dexas of the same person and the InBody test results. A correlation of 1 means the same as a dexa; InBody Dial has a correlation of 0.93. Next, the standard error refers to the error between InBody Dial and the dexa measurement data.
  • Page 21 Question 7. Your thighs are thick, so your legs stick together when you measure them. Doesn't the result matter? Answer. Because H30NWi measures by region, if thighs stick together or armpit sticks to the torso, the result will be affected. In this case, you can get accurate results by wearing light short sleeves, shorts, or long clothes.

  • Page 22: Product Specifications

    Power consumption DC 6V (1.5V AA battery 4 EA) Display screen 2.25 inch TFT LCD Color Soft White InBody Dial size 318(W) × 361(L) × 56(H) : mm InBody Dial weight 2.47 kg Measurement time impedance Within 5 seconds of measurement Operating environment 10°C–40°C, 30–75%RH, 70–106 kPa...
  • Page 24 Contain FCC ID: 2ADXS-WFM60-SFP2501 Contain IC: 12641A-WFM6SFP2501...
  • Page 25 H30NWi InBody Dial H30...
