User's Manual

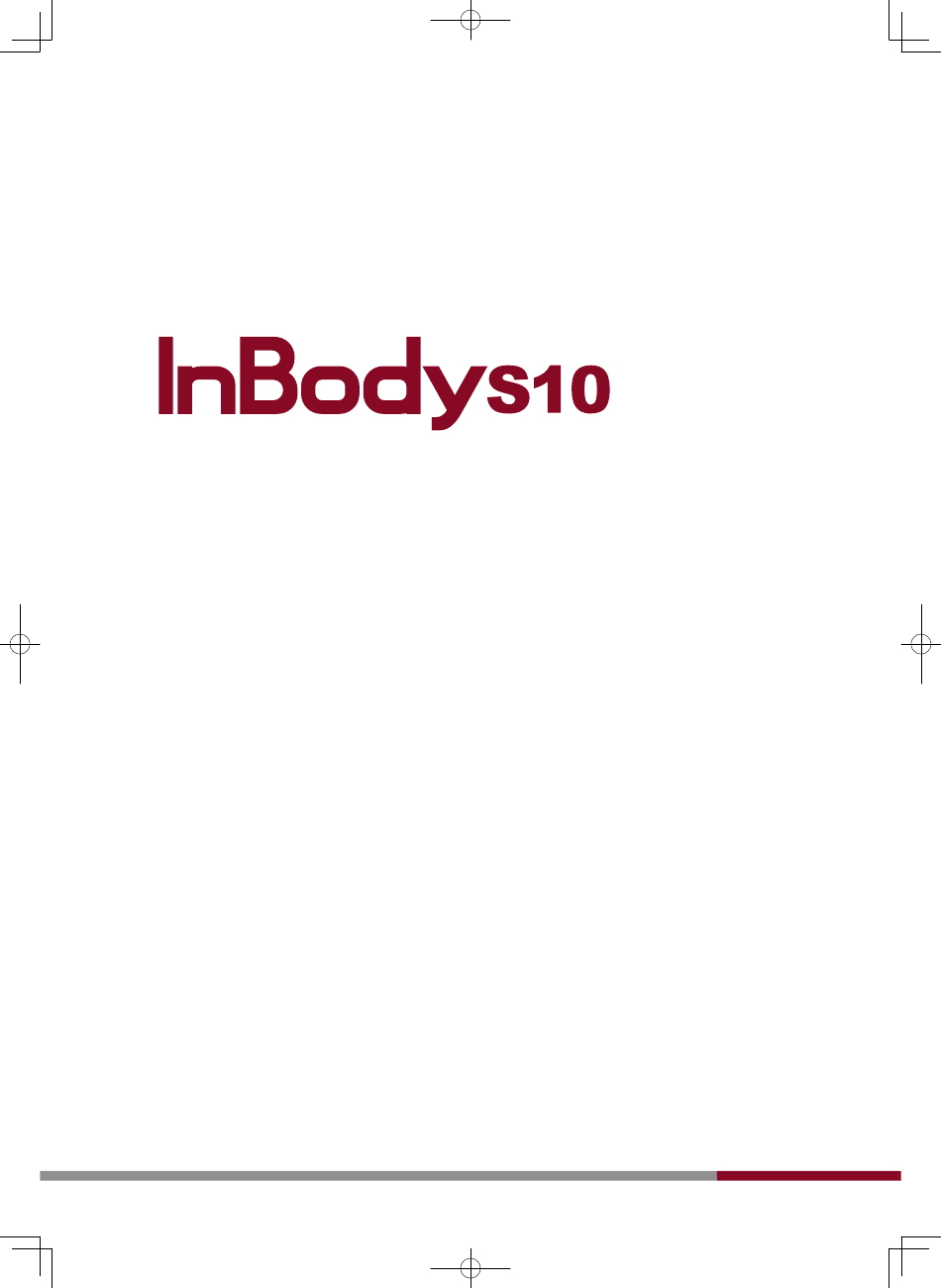

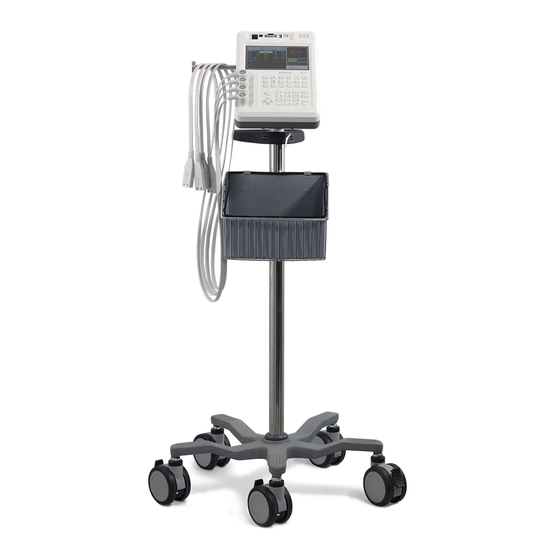

InBody S10 User's Manual for Measurement Guide and Setup
Thank you for purchasing the InBody S10. This user's manual describes all the features of the InBody S10.
Please read before use and keep it in a safe place. By following the manual instructions, you will be able to
use the InBody S10 more safely and effectively.
S10_manual_ENG_G_220317.indd 1
S10_manual_ENG_G_220317.indd 1
2022. 3. 23. 오후 4:57
2022. 3. 23. 오후 4:57

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody S10

Summary of Contents for inbody S10

  • Page 1 InBody S10 User's Manual for Measurement Guide and Setup Thank you for purchasing the InBody S10. This user’s manual describes all the features of the InBody S10. Please read before use and keep it in a safe place. By following the manual instructions, you will be able to use the InBody S10 more safely and effectively.
  • Page 2 * InBody S10 is not a diagnostic device. To make an accurate diagnosis, the physician needs to commission thorough examinations and take their results into account in addition to the results of the InBody S10.
  • Page 3 Visit our website inbody.com to view and download further information about the functions of the InBody S10, the explanation of results output, and more. InBody Co., Ltd. reserves the right to modify the appearance, specifications, and etc. of the InBody S10 to improve the quality of the product, without prior notice for reasons of performance improvement.
  • Page 4 S10_manual_ENG_G_220317.indd 4 S10_manual_ENG_G_220317.indd 4 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...

  • Page 5: Table Of Contents

    User’s Manual Contents I. Installation & Maintenance A. Contents of the Box B. Exterior & Functions C. Installation Instructions D. Transportation E. Repacking F. Maintenance II. Management & Results Description A. Cautions Before Measurement B. Exterior and Functions of Keypad C.

  • Page 6: Installation & Maintenance

    I. Installation & Maintenance A. Contents of the Box When opening the box, make sure all of the following items are inside: 1. Included Items InBody S10 1EA ❶ User’s Manual 1EA ❷ ❶ Adapter (12V, 3.4A/3.34A) 1EA ❸ Power cord (AC 125V, 10A, 1.8m) 1EA ❹...
  • Page 7 참 고 주 의 참 조 주 의 To prevent physical shock, use InBody’s packing material when shipping or transporting the equipment. • Refer to this Chapter I, Section D: “Transportation.” Note Save the wrapping material after unpacking in the event of relocation.

  • Page 8: Exterior & Functions

    B. Exterior & Functions Individual part identification and functions with schematic sketches are provided below. Please inspect each component of the InBody S10 before installation to ensure there are no scratches or damage. 1. LCD Monitor 2. Electrode Connection Unit 3.
  • Page 9 When you use the adapter cable, insert the adapter cable tightly into the InBody S10. • Including the optional equipment, only the peripherals provided by InBody can be connected to the InBody S10. • For any inquiry about peripherals, contact InBody.

  • Page 10: Installation Instructions

    (3) Connect it to an outlet with a grounding terminal. Equipment may be damaged or malfunction due to electrical shock, which may result in inaccurate test results. (4) If InBody S10 experiences electrical interference, the test results may be inaccurate. Do not install near fluorescent lamps, large AC motor equipment (running machines, refrigerators, air conditioners, compressors), high-frequency thermal therapy devices, and electric heaters.
  • Page 11 Installing Touch Type Electrodes: Installing Adhesive Type Electrodes: S10_manual_ENG_G_220317.indd 11 S10_manual_ENG_G_220317.indd 11 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...
  • Page 12 3. How to Install the InBody S10 Cart (1) Please place the InBody S10 on the cart. Align the InBody S10’s 4 screws on the rear side of the unit to the cart’s 4 grooves on the head unit. Screw them to fasten the InBody S10 onto the cart.
  • Page 13 (2) As shown below, adjust the direction and angle as desired. ❸ ❷ ❶ * HELP For left/right control ❶ Loosen the screw by twisting left. Fasten the screw by twisting right. For up/down control ❷ Loosen and adjust the angle degree. Fasten again.
  • Page 14 (4) Connect the electrode cables to the InBody S10. Connect the RA(Right Arm), LA(Left Arm), RL(Right Leg), LL(Left Leg) electrodes to each corresponding part of the InBody S10. The InBody S10 offers two types of electrodes: the Touch Type electrodes and Adhesive Type electrodes.
  • Page 15 Installing the Adhesive Type Electrodes: Touch Type ❶ Connect the black cable to the black port(V) of the electrode module, and connect the red cable to the red port(I) of the electrode module. <hand electrode> <foot electrode> Adhesive Type electrode ❷...
  • Page 16 InBody S10 first. This is necessary to minimize electrical surges to the InBody S10. Always use the specified adapter provided by InBody, as it is a part of the InBody S10. Using other adapters may •...
  • Page 17 Installing the Printer onto the Cart Insert a power strip in the slot provided under the printer platform. ❶ Install the printer platform on the cart pole. ❷ Use a hex key to fasten the printer platform into place. ❸ S10_manual_ENG_G_220317.indd 17 S10_manual_ENG_G_220317.indd 17 2022.
  • Page 18 Use the USB cable to connect the printer to the unit. ❹ S10_manual_ENG_G_220317.indd 18 S10_manual_ENG_G_220317.indd 18 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...

  • Page 19: Transportation

    주 의 참 조 주 의 Severe physical impact can cause damage. Be careful not to drop or shake the InBody S10. • 3. Transporting After Installation To prevent physical shock, use InBody᾿s packing material when shipping or transporting the equipment.

  • Page 20: Repacking

    (1) Turn off the power switch. (2) Remove all cables connected to the InBody S10. (3) Put the separated units in the provided carrying case. (4) You can carry the machine easily with the carrying case.

  • Page 21: Maintenance

    • not to scratch the LCD screen. The InBody S10 does not need regular maintenance. If problems occur while operating the device, please contact • InBody. We do not take any responsibility for problems or damage caused by unlicensed repairs not performed by InBody.

  • Page 22: Management & Results Description

    Children and people with limited mobility should be supervised or assisted when attempting to test on the • InBody S10. After an individual with any kind of contagious disease or infection tests on the InBody S10, use an InBody Tissue • to clean the equipment.

  • Page 23: Exterior And Functions Of Keypad

    B. Exterior and Functions of Keypad The InBody S10 has a keypad for data input. To input all information, press the relevant buttons on the keypad. The keypad is located below the LCD Monitor. It can be divided into two categories based on button function: 1.
  • Page 24 button ❺ You can check the accumulated analysis results of TBW/FFM(Ratio of Total Body Water to Fat Free Mass). button ❻ You can check the accumulated analysis results of Weight to Muscle Mass to Percent Body Fat. (2) Select electrode connection type button ❶...
  • Page 25 The COPY button will copy all data from the equipment to a USB storage device. Insert the USB storage device into the InBody S10 and press the COPY button. Do not remove the USB storage device before the process is complete.
  • Page 26 button ❹ This button is used to enter a decimal point or comma for height, age, I.D., and weight. button ❺ Used to delete entered data. button ❻ These buttons are used for gender input when entering a personal profile. button ❼...

  • Page 27: Measurement Posture

    • If there is a heating mat (electric blanket) on the floor or mat, be sure to turn off the power and unplug the power plug when possible. ※ Since InBody S10 is shielded between cable and cable cover, it is not affected by interference between electrode cables and contact with steel structure of electrode cable. However, in order to obtain more stable measurement value, take precaution to prevent any contact with steel structure.
  • Page 28 2. Seated Posture (1) It is recommended that the examinee sits in the testing posture for about 10~15 minutes before the test, so that body water may be dispersed evenly inside the body. (2) Make sure that the examinee's back is not touching the chair and is sitting straight. (3) Use a cushion to support the examinee's back.
  • Page 29 ※ Since InBody S10 is shielded between cable and cable cover, it is not affected by interference between electrode cables and contact with steel structure of electrode cable. However, in order to obtain more stable measurement value, take precaution to prevent any contact with steel structure.
  • Page 30 The examinee should not rest his/her arm on the arm rest of the chair. The examinee should not slouch. Make sure bare feet do not touch the floor. Use a mat that does not conduct electricity. Make sure thighs do not touch each other. Do not position the examinee’s legs at a 90 degree angle, but stretch them slightly to the front.
  • Page 31 Touch Type electrodes. Make sure to attach them as best as possible. • If examinees have dry hands and feet, wipe the equipment with an InBody tissue before testing. • Due to the weight of the cable, it is easy for the Adhesive Type electrodes to fall off during the test.
  • Page 32 Make sure arms do not touch the torso and that the legs do not touch each other. Make sure bare feet do not touch the floor. Use a mat that does not conduct electricity. S10_manual_ENG_G_220317.indd 32 S10_manual_ENG_G_220317.indd 32 2022. 3. 23. 오후 4:57 2022.

  • Page 33: Connecting The Electrodes

    D. Connecting the Electrodes InBody S10 offers two types of electrodes: the Touch Type electrodes and the Adhesive Type electrodes. Check the RA, LA, RL, LL. (RA: Right Arm, LA: Left Arm, RL: Right Leg, LL: Left Leg) Check on the electrode part that will come into contact with examinee’s hands and feet.
  • Page 34 Make sure to attach them as best as possible. • The test might not work properly or the results might be inaccurate if the examinee has dry hands/feet. Wipe the examinee’s hands and feet with an InBody tissue before testing. S10_manual_ENG_G_220317.indd 34 S10_manual_ENG_G_220317.indd 34...
  • Page 35 As EKG electrodes will be in direct contact with the body of the examinee, only use products with • CE certification. We officially recommend 2330 Red Dot Resting Electrode-Tab Style of 3M and RT34 Tab-Electrodes for resting ECG of SKINTACT for the InBody S10. S10_manual_ENG_G_220317.indd 35 S10_manual_ENG_G_220317.indd 35 2022.

  • Page 36: Power Connection & Getting Started

    (2) When the system switch is turned on, the screen shown below will be displayed and the device will begin warming up automatically. (3) While warming up, the InBody S10 will proceed to self-test itself and make any necessary adjustments to the internal circuits.

  • Page 37: Home Screen

    F. Home Screen The InBody S10 has a touch screen function for data input. Press the buttons on the LCD screen or use the keypad buttons to enter information. The home screen of the InBody S10 has numerous options for both the user’s and the examinee’s convenience.

  • Page 38: Measurement Settings

    G. Measurement Settings 1. Select electrode connection type button ❶ Use when using Touch Type electrodes. button ❷ Use when using Adhesive EKG electrodes. 2. Select posture button ❶ Set for examinees who are lying down. button ❷ Set for examinees who are sitting down. button ❸...

  • Page 39: Personal Profile

    Weight and height are essential information for body composition analysis, and to provide a frame of reference for the data, age and gender are used to provide standard ranges. The InBody S10 analyzes the measurement results based on the input data. To reduce errors and acquire more reliable results, input examinee data after reading the following carefully: (1) I.D.

  • Page 40: How To Operate The Equipment

    I. How to Operate the Equipment (1) Please select the electrode type. (Touch Type, Adhesive Type). (2) Please select the examinee’s posture type. (Lying Posture, Seated Posture, Standing Posture) (3) Please select whether you will be using ‘Dialysis Mode’ or not. (Enable, Disable) If examinees are receiving kidney dialysis, make sure to set the equipment to ‘Dialysis Mode’.
  • Page 41 (9) After the test is completed, a “Test Complete” message will appear on the information screen. If you entered the examinee’s I.D. for the test, the InBody S10 will automatically save all results in the system. If the printer is connected and there are results sheets in the printer, the printer will automatically print the results on the results sheet.

  • Page 42: Results

    J. Results 1. Result Screen You can check the impedance results first. If you want to check other results, such as body water level, body composition, cumulative body water level, cumulative TBW/FFM, and cumulative weight/muscle/percent fat, press the relevant keypad button. Please refer to the help section of the information screen. (1) Impedance(Z)/ Reactance(Xc)/ Phase angle(θ) (2) Body Water (3) Body Composition...
  • Page 43 (4) TBW, ICW, ECW History (5) TBW/FFM History (6) Weight/Muscle/PBF History S10_manual_ENG_G_220317.indd 43 S10_manual_ENG_G_220317.indd 43 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...

  • Page 44: Setup Establishment

    III. Setup Establishment A. Setup The InBody S10 has a setup menu to modify the settings for the user’s preference. The setup menu is shown below. (1) Select the category that you wish to access. (2) In your selected category, choose the item you wish to modify.

  • Page 45: Setup Menu

    : Change or modify the InBody’s basic settings. 02. Medical Mode or Research Mode : This option allows switching between the Medical Mode, which is the basic test mode of the InBody S10, and Research Mode, which provides additional impedance.
  • Page 46 : Set a password or screen lock (auto-lock) time to secure the InBody usage. 26. Serial Connect : This option allows you to connect InBody with LookinBody member management program for PC or with other devices over serial connection. S10_manual_ENG_G_220317.indd 46 S10_manual_ENG_G_220317.indd 46...

  • Page 47: Database

    Data saved in the database is available to search, print, or delete. You can also view the results of the InBody Test, as well as backup/recover data. The InBody S10 can save up to a maximum of 100,000 entries. 1. Data Search In the Database screen, all the data saved in the system will be automatically saved.
  • Page 48 When you restore data from a USB storage device, the InBody S10’s existing database will be replaced by the data • in the USB storage device. Please ensure that you have backed up any data you wish to save from InBody S10’s database before using this feature.

  • Page 49: Problems & Solutions

    IV. Problems & Solutions A. Error Messages The InBody S10 displays the following error messages to warn the user of the problems encountered during operation and to guide the users in solving them. The following are the most common error messages and the steps to handle the corresponding errors: 1.
  • Page 50 (In a normal situation, the results sheet automatically prints out after the measurement.) Cause 1: The printer cable is unplugged. Action 1: Ensure the cable is connected tightly to the InBody S10. Occasionally, this may occur as a result of a bad cable. In this case, you must replace the cable.
  • Page 51 Action 4: The printer has insufficient ink or toner. Please replace the ink or toner cartridge. Note A problem arises when the orientation setting in the printer's settings doesn’t correspond with that of the InBody S10. • Refer to the user’s manual of the printer to change the orientation of the printer. The standard printing orientation for the InBody S10 is portrait.

  • Page 52: Frequently Asked Questions (Faq)

    Body composition will change according to diet, exercise, medical treatment, • • examinee perform the etc. We recommend that you test on the InBody S10 once every two to four analysis? weeks to reliably see the changes. Do I have to use an InBody InBody Tissues are specifically designed for optimal testing, as opposed to •...

  • Page 53: Other

    IB Battery 120/220 The IB Battery 120/220 was made to be used in connection with the InBody S10. Please do not use the IB Battery 120/220 for purposes other than connecting with the InBody S10. The IB Battery 120/220 allows the InBody S10 to be conveniently transported and carried indoors.
  • Page 54 1) Function of Parts Connection Cable ❶ This is a cable for connecting InBody S10 and the IB Battery 120. The larger end is connected to InBody S10 and the smaller end is connected to the IB Battery 120. Adapter Connection Socket ❷...
  • Page 55 It can cause the IB Battery 120 to malfunction. 3) How to Recharge the IB Battery 120 Recharge by inserting the adapter of the InBody S10 into the adapter socket of the IB Battery 120. Note Please recharge using the adapter provided by InBody.
  • Page 56 4) Installing and Using the InBody S10 It is recommended to connect the InBody S10 to the IB Battery 120, and then use it while the adapter is connected to the IB Battery 120. Connect the connection cable to InBody S10 and IB Battery 120.
  • Page 57 This socket is used to connect the adapter when the battery is in stand-alone charge mode. External connection socket for the InBody S10’s device ❷ This socket is used to connect the InBody S10’s device and battery with the battery cable. Battery level indicator (LED) ❸...
  • Page 58 참 고 주 의 참 조 주 의 ·Please recharge using the adapter provided by InBody. ·The battery level check button is for checking the remaining battery charge. The IB Battery 220 does not have a power on/off feature. S10_manual_ENG_G_220317.indd 58 S10_manual_ENG_G_220317.indd 58...
  • Page 59 4) Installing and Using the InBody S10 It is recommended to connect the InBody S10 to the IB Battery 220, and then use it while the adapter is connected to the IB Battery 220. Connect the connection cable to InBody S10 and IB Battery 220.
  • Page 60 When using the InBody S10 carrying case ► IB Battery 120/220 Connection Cable Adapter When using the InBody S10 cart ► Connection Cable IB Battery 120/220 Adapter CAUTION NOTE DANGER Warning 참 고 주 의 참 조 주 의 Do not touch signal input, signal output or other connectors, and the patient simultaneously.

  • Page 61: Safety Information

    C. Safety Information Indicators 9 pin Serial Port, Female (RS-232C) USB Port (Slave) Safety Symbols Warning, Caution Note BF Type Equipment Adapter Power On Power Off Etc. Symbols European Conformity Serial number 0120 0120 Manufacturer Direct current Authorized representative in the 0120 0120 EUROPEAN COMMUNTY...
  • Page 62 Follow instructions for use Suivez les instructions d’utilisation WARNING Electric shock hazard – do not dismantle. Dismantling will void the warranty. AVERTISSEMENT Risque de choc électrique - ne pas démonter. Le démontage annulera la garantie. DANGER Do not use this equipment with electrical medical device such as a pacemaker. Ne pas utiliser cet équipement avec des appareils médicaux électriques comme un stimulateur cardiaque.

  • Page 63: Classification

    D. Classification Body Composition Analyzer of Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method Type of protection against electric shock: Class I • Type of the applied parts: BF Type • Degree of protection against water infiltration: IPX0 • EMC Immunity: Level A •...
  • Page 64 Possible to backup and transfer data to USB storage device (compatible with Excel and LookinBody software) It is recommended to use the USB storage device provided by InBody. Data Back-Up Possible to backup data through USB storage device and to restore the data to the InBody Printer Connection USB port Applied Rating Current Under 100µA(1kHz), 500µA(over 5kHz)

  • Page 65: Emc Declaration

    F. EMC Declaration The InBody S10 is intended for use in the electromagnetic environment specified below. The customer or the user of the InBody S10 should ensure that it is used in such an environment. Electromagnetic emissions Emissions test Compliance Electromagnetic environment The InBody S10 uses RF energy only for its internal function.
  • Page 66 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the InBody S10 is used exceeds the applicable RF compliance level above, the InBody S10 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the InBody S10.
  • Page 67 S10_manual_ENG_G_220317.indd 67 S10_manual_ENG_G_220317.indd 67 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...
  • Page 68 ©2022 InBody Co., Ltd. All rights reserved. IM-ENG-83-G-220317 S10_manual_ENG_G_220317.indd 68 S10_manual_ENG_G_220317.indd 68 2022. 3. 23. 오후 4:57 2022. 3. 23. 오후 4:57...
