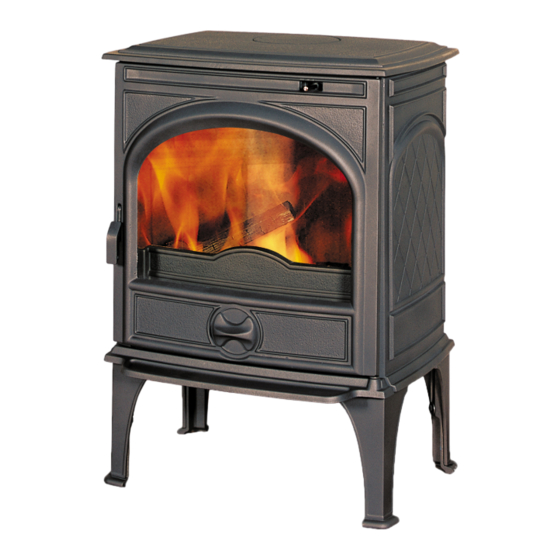

Dovre 425CB Installation Instructions And Operating Manual

Hide thumbs Also See for 425CB:
Table of Contents

Advertisement

Quick Links

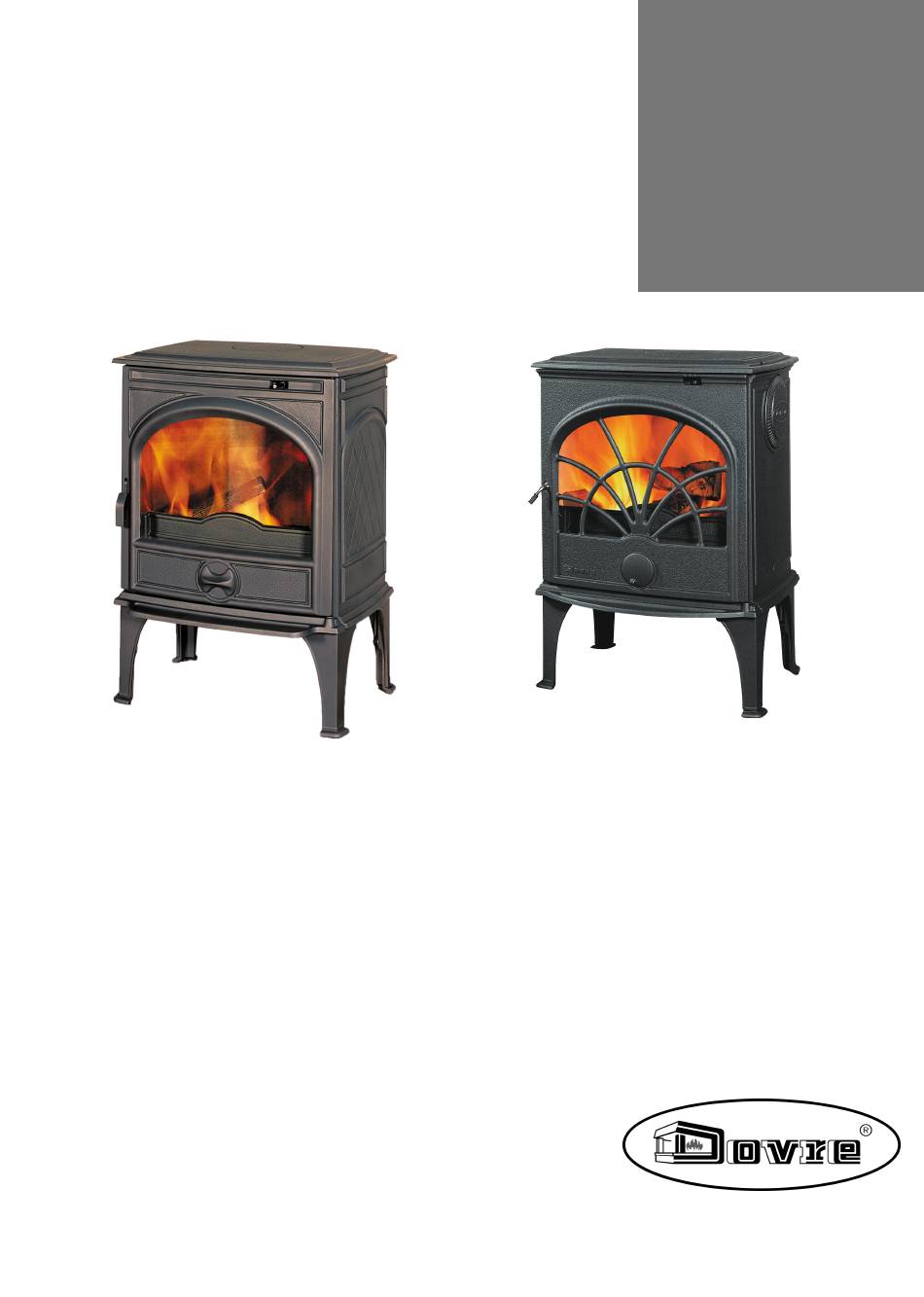

INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
ISTRUZIONI PER L'INSTALLAZIONE E L'USO
Houtkachel 425CB en 550CB
09.20008.000
HOUTKACHEL
WOOD STOVE
POELE A BOIS
HOLZ-FEUERSTÄTTE
ESTUFA DE LEÑA
STUFA A LEGNA
03.27986.100 - 02/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 425CB and is the answer not in the manual?

Questions and answers

Related Manuals for Dovre 425CB

Summary of Contents for Dovre 425CB

  • Page 1 INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE INSTALLATION ET MODE D’EMPLOI POELE A BOIS EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG HOLZ-FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA ISTRUZIONI PER L'INSTALLAZIONE E L'USO STUFA A LEGNA 09.20008.000 Houtkachel 425CB en 550CB 03.27986.100 - 02/2012...

  • Page 2: Table Of Contents

    Table of contents Introduction Declaration of conformity Safety Installation requirements General Flue or chimney Ventilation of the area Floor and walls Product description Installation Preparation Fitting the legs Fitting the handle and handle holder (model 550CB) Preparing the connection to chimney Installing and connecting First use Fuel...

  • Page 3: Introduction

    The appliance is intended for use in a living room. It must be connected hermetically to a well- functioning chimney. that the wood stoves 425CB and 550CB have been We advise you to let an authorized and competent produced in accordance with EN 13240.

  • Page 4: Safety

    Safety Make sure there is adequate ventilation in the room where the appliance is installed. The Please note: All safety regulations must be combustion will be incomplete in case of complied with strictly. insufficient ventilation, which results in toxic gases being produced and spread through the Carefully read the instructions for installation, room.

  • Page 5: Ventilation Of The Area

    The flue or chimney must be made of fire resistant material, preferably ceramics or stainless steel. The flue or chimney must be airtight and well cleaned and guarantee sufficient draught. A draught/vaccuum of 15 - 20 Pa during normal operation is ideal. Starting from the flue spigot, the flue must run as vertically as possible.

  • Page 6: Floor And Walls

    Floor and walls Product description The floor on which the appliance is placed must have sufficient load bearing capacity. For the appliance weight: see the appendix "Technical data". Protect a flammable floor from heat radiation by means of a fireproof protective plate. See the appendix "Distance from combustible material".

  • Page 7: Installation

    Installation operate the bolt when it is warm and to remove the ash pan; see the following figure. Preparation Please check the appliance for damage caused during transport or any damage or defects immediately after delivery. If you detect damage caused during transport or any other damage or defects, do not use the appliance and notify the supplier.

  • Page 8: Fitting The Handle And Handle Holder (Model 550Cb)

    Model 550CB is supplied with two covers that have the Dovre logo on them. Sealant and materials supplied. When connecting to the upper side an opening has 09-20015.088...
  • Page 9 For model 550CB: cover the two flue gas openings on the sides with the supplied covers 2. Make the opening in the heat shield by cutting the that have the Dovre logo on them. pre-cut section out of the heat shield using plate shears.

  • Page 10: Installing And Connecting

    2. Shut off the flue gas opening that is not being used Hardwood, such as from oaks, beeches, birches with one of the covers supplied that has the Dovre and fruit trees, is the ideal fuel for your stove. This logo on it.

  • Page 11: Burning Wood

    1. Slowly open the door of the appliance. 2. Spread out the charcoal bed evenly across the bottom of the fire compartment. 3. Stack a few logs on the charcoal bed. Open stacking 4. Close the door of the appliance and open the primary air inlet and the secondary air inlet of the appliance;...

  • Page 12: Extinguishing The Fire

    4. Close the door of the appliance. Removing ashes 5. Close the primary air inlet and leave the secondary After the wood has been burnt, a relatively small air inlet open. amount of ashes is left over. This bed of ashes is a Fill the appliance up to one third capacity.

  • Page 13: Fog And Mist

    3. Using the scraper supplied, sweep the redundant After the heating season: seal off the chimney with ashes through the ash removal port into the ash a ball of paper. pan underneath the grate. Cleaning and maintenance 4. Close the ash removal port. Do not clean the appliance when it is still 5.
  • Page 14 If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again. Make sure that no stove window cleaner runs between the glass and the cast-iron door. Maintaining enamelled fire Never clean the appliance when it is still hot. The enamelled surface of the fire can be cleaned most effectively with a mild green soap and lukewarm water.
  • Page 15 differences and damage may occur. The appliances undergo a visual inspection in the factory, that is to say, the inspector looks at the surface for a period of 10 seconds from a distance of 1 metre. Any damage that does not stand out is regarded as OK.

  • Page 16: Appendix 1: Technical Data

    Appendix 1: Technical data Model 425CB and 550CB Nominal output 8 kW Flue connection (diameter) 150 mm Weight +/- 115 kg Recommended fuel Wood Fuel property, max. length 40 cm Mass flow of flue gases 5.6 g/s Temperature increase measured in measuring section...

  • Page 17: Appendix 2: Measurements

    Appendix 2: Measurements 425CB 09.20017.009 Subject to change because of technical improvements...
  • Page 18 550CB Ø150 09-00085-000_550CB Subject to change because of technical improvements...

  • Page 19: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material 425CB and 550CB - Minimum distances in millimetres 09.20017.039 Protective (insulated) connection pipe Combustible material Incombustible material, thickness 100 mm Subject to change because of technical improvements...
  • Page 20 425CB and 550CB - Dimensions of fireproof protective plate 09-20002-004 Minimal dimensions of fireproof protective plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...

  • Page 21: Appendix 4: Diagnostic Diagram

    Appendix 4: Diagnostic diagram Problem Wood does not keep burning Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass Possible cause Possible solution A cold flue usually fails to create sufficient draught.

  • Page 22: Index

    Index Connection to chimney rear side Control air supply Adding fuel Cover logo 8, 10 Adding wood smoke emissions into the room Cover on flue Air inlets Creosote adjusting Air leak Damp wood Air supply for fire Door Ash pan sealing rope open Draught...
  • Page 23 Fuel Measurements adding Mist, do not burn wood adding wood necessary amount suitable Nominal output 13, 16 unsuitable Open Glass ash pan clean deposit Paint finish Particulate emission Handle Prevent a chimney fire fitting Primary air inlet Handle holder fitting Heat shield Removal of ashes making opening...
  • Page 24 Unsuitable fuel Ventilation rule of thumb Ventilation louvre Walls fire safety Warning chimney fire 4, 10, 12 combustible materials fire-resistant inner plates glass broken or cracked 4, 14 hot surface regulations stove window cleaner terms and conditions for insurance ventilation Weather conditions, do not burn wood Weight Wood...
  • Page 28 E & O E...

This manual is also suitable for:

550cb
