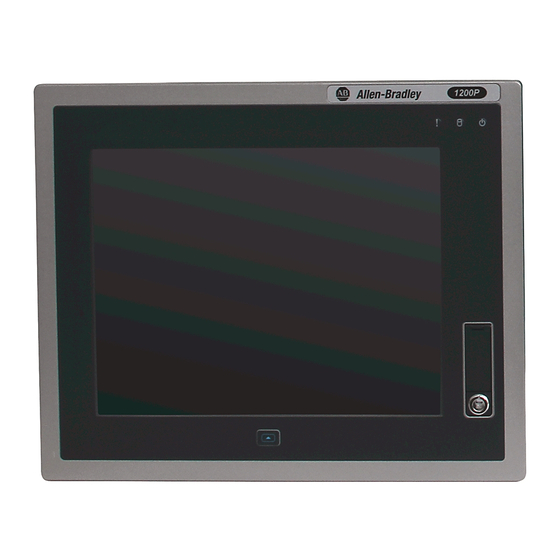

Rockwell Automation 6181P User Manual

6181p integrated display and non-display industrial computer models
Hide thumbs Also See for 6181P:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
User Manual
Original Instructions
Integrated Display Industrial Computers
Catalog Numbers 6181P, 6189V-6181TRAY, 6189V-6181HDD100GB, 6189V-6181SSD32GB, 6189V-6181SSD64GB,
6189V-BOOKBRKT, 6189V-DPDVI, 6189V-DPVGA, 6189V-PCIR, 6189V-EXTPCI2, 6189V-PSU6181AC, 6189V-PSU6181DC,
6189V-8GSODDR3, 6189V-16GSODDR3, 6189V-ODD, 6189V-ACCESSBOX6181

Advertisement

Table of Contents
loading

Related Manuals for Rockwell Automation 6181P

Summary of Contents for Rockwell Automation 6181P

  • Page 1: Mounting Clips

    User Manual Original Instructions Integrated Display Industrial Computers Catalog Numbers 6181P, 6189V-6181TRAY, 6189V-6181HDD100GB, 6189V-6181SSD32GB, 6189V-6181SSD64GB, 6189V-BOOKBRKT, 6189V-DPDVI, 6189V-DPVGA, 6189V-PCIR, 6189V-EXTPCI2, 6189V-PSU6181AC, 6189V-PSU6181DC, 6189V-8GSODDR3, 6189V-16GSODDR3, 6189V-ODD, 6189V-ACCESSBOX6181...

  • Page 2: Keys For Front Access Cover Lock

    If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

  • Page 3: Table Of Contents

    Connect to a Network ......... . . 36 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 4 Exit ............. 85 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 5 ..............105 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 6 Table of Contents Notes: Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 7: Preface

    Preface This manual is a user guide for 6181P integrated display and non-display industrial computer models. It provides procedures to the following: • Install the computer. • Make computer connections. • Operate the computer. • Troubleshoot the computer. Summary of Changes This manual contains new and updated information as indicated in the following table.

  • Page 8: Abbreviations

    These documents contain additional information to related products from Rockwell Automation. Resource Description Industrial Computer and Monitor Specifications Provides technical specifications for the 6181P integrated Technical Data, publication display and non-display computers. IC-TD001 Industrial Integrated Display Computers Product Provides basic product information on the integrated display...

  • Page 9: Features

    No operating system updates have been applied to the factory image beyond the above listed service packs. IMPORTANT 6181P computers do not ship with the Windows XP Professional operating system. Windows XP system images are available from the Rockwell Automation Product Compatibility and Download Center: http://www.rockwellautomation.com/support/pcdc.page.

  • Page 10: Computer Options

    Chapter 1 Features Computer Options This table summarizes options available for 6181P industrial computers. A comparative summary of features for the computers is in Industrial Computers and Monitors Specifications Technical Data, publication IC-TD001. Table 1 - Computer Options Cat. No. (6181P-) Model Tier Series Power Display Size (in.) Aspect Ratio...
  • Page 11 (1) Tier 2 computer models have Intel Core i3 processors and Tier 3 computer models have Intel Core i7 processors. (2) 15.6 inches and 18.5 inches for diagonal sizes of 15 and 19 inch widescreen displays, respectively. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 12: Hardware Features

    Power switch (1) Bay for ODD, second HDD (for RAID configuration), or no drive. (2) Model dependent. (3) All non-display models have four external USB 3.0 ports and one internal USB 3.0 port. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 13 (4) All display models have four external USB 3.0 ports and one internal USB 3.0 port. Display models with an aluminum bezel have an additional external USB 3.0 port on the bezel (behind the front access cover). Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 14: Internal Components

    Rear USB 3.0 ports, 4 COM1 cable connector System fan 1 connector RS-232 serial port, (COM2) COM2 cable connector Internal USB 3.0 connector CompactFlash Type II slot DDR3 DIMM slot, 2 RS-232 serial port (COM1) Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 15: System Features

    The following system features are found on this line of integrated display computers. Multi-touch Touchscreens The 6181P integrated display industrial computers offer models with glass- front, multi-touch PCAP touchscreens. The multi-touch technology provides up to two simultaneous touches and common gesturing (such as flicking, rotating and pinch-to-zoom) when operating the touchscreen.

  • Page 16: Status Indicators And Uib

    User Interface Button The UIB can be used as a programmable navigation button. (UIB) Press during computer startup to access the UEFI. User Interface Button (UIB) on page 73 for configuring the UIB. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 17: Hardware Monitor And Watchdog Timer Utilities

    Intel Core i7 Quad-core processor. AMT provides remote access and manages products through either the BIOS/UEFI or OS. By default, the 6181P computers are shipped with the AMT disabled. The user must enable it to take advantage of the remote management capabilities. For additional information on Intel AMT, visit http://www.intel.com.

  • Page 18: Intel Rapid Start Technology

    IMPORTANT The SSD must first have a private partition allocated that is equal in size to the computer RAM. Intel Rapid Start Technology on page 68 for more information on configuring Rapid Start. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 19: Install The Computer

    • Integrated Display Industrial Computers Product Information, publication 6181P-PC001 • One of the following cutout templates: – 6181P and 6181X Industrial Computers Cutout Template for Standard Display Models (4:3 and 5:4 aspect ratios), publication 6181P-DS002 – 6181P and 6181X Industrial Computers Cutout Template for Widescreen Display...

  • Page 20: Installation Precautions

    The enclosure must be accessible only by using a tool. All 6181P display computers are shipped with a gasketed bezel to meet specified NEMA, UL Type, and IEC IP ratings only when mounted in a panel or enclosure with an equivalent rating.

  • Page 21: Installation Guidelines

    IMPORTANT The computer can operate at a range of extremes. However, the life span of the computer is shortened if you continuously operate it at its highest rated temperature. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 22: Mounting Clearance Requirements

    Right (for airflow and drive access) 127 mm (5 in.) Bottom (for I/O port access and ventilation) 102 mm (4 in.) Right and left are based on facing the front of the computer. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 23: Computer Dimensions

    100.7 (3.96) 335.3 (13.2) 67.7 (2.67) 190.5 (7.5) (9.88) Figure 8 - 1200P (12-inch) Standard Display Computer 320 (12.60) 115 (4.53) 115 (4.53) 103 (4.06) 72 (2.83) 349 (13.74) 14.5 (0.57) (10.98) (9.88) Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 24 15.8 (0.62) Figure 10 - 1500P (15-inch) Widescreen Display Computer 49.5 320 (12.6) 47.5 (1.95) (1.87) 106.4 (4.19) 14.5 110 (4.33) 110 (4.33) 110 (4.33) (0.57) (1.26) 447 (17.6) (11.18) (9.88) 15.7 (0.62) Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 25 (0.57) (2.16) 399.3 (15.72) (9.88) IMPORTANT: 1900P models with stainless steel bezels do not have the front USB port at right, status indicators in the upper right, or the UIB below. 54.75 (2.16) Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 26 Figure 13 - 1900P (19-inch) Widescreen Display Computer 320 (12.6) (3.35) (3.35) 106.4 (4.19) 32 (1.26) 130 (5.12) 130 (5.12) 130 (5.12) 33.5 515.6 (20.3) 14.5 (1.32) (0.57) 339.3 (13.36) (9.88) 33.5 (1.32) Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 27: Tools For Computer Installation

    In either position, front USB port must be near bottom of display. ≤60° ≤60° from Vertical from Vertical ATTENTION: Failure to follow these guidelines can result in personal injury or damage to the panel components. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 28: Panel Cutout Dimensions

    Failure to follow these guidelines can result in personal injury or damage to the panel components. Panel Cutout Dimensions A cutout template is shipped with each display computer model. 6181P and 6181X Integrated Display Industrial Computers Cutout Template, publication 6181P-DS002, is included with standard display models (4:3 and 5:4 aspect ratios).

  • Page 29: Mount The Display Computer In A Panel

    This gasket forms a compression-type seal. Do not use sealing compounds. 6. Place the computer in the panel cutout. 7. Slide the mounting clips into the holes on the top, bottom, and sides of the computer. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 30 Rockwell Automation assumes no responsibility for water or chemical damage to the computer or other equipment within the enclosure because of improper installation. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 31: Mount The Non-Display Computer

    Figure 16 - Acceptable and Unacceptable Mounting Positions for Non-display Computers Acceptable For Vertical Mounting For Horizontal Mounting Under Table Mount Machine or Table Mount (top view of computer) (top view of computer) Bookshelf Mounting Unacceptable Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 32: Connect Peripherals

    All USB ports are enabled or disabled through settings in the UEFI set-up menu. See USB Configuration on page 66 for more information. Description Front access cover USB 3.0 device port, Type A USB key Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 33: Connect Power

    SHOCK HAZARD: Connect the AC power cord to a power source with an earth ground. Failure to follow this warning can result in electrical shock. 4. Apply 100…240V AC power to the computer. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 34: Connect Dc Power

    7. Connect the computer to earth ground by using a 1.5 mm (16 AWG) or larger external wire. Use a ground wire with an insulation color that is approved by local inspection authority. 8. Apply 18…32V DC power to the computer. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 35: Functional Ground Screw

    I/O port panel of the computer. DC Power Models The pre-installed functional ground screw is not required for safety but is required for EMC regulatory compliance. Figure 17 - Functional Ground Screw Location Non-display Models Display Models Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 36: Connect To A Network

    When prompted during the set-up process, We recommend that you select the Public Network option for the most secure network connection. However, you are ultimately responsible for what network security setting is the most appropriate one. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 37: Operating Guidelines

    • After shutting down the computer, do not apply power again until shutdown is complete. For computers with a HDD, the HDD must come to a complete stop, which can take up to 30 seconds after shutdown is initiated. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 38: Touchscreen Precautions

    AC power cord into the AC power input on the computer. DC powered models: See DC Power Models on page 35 for how to install DC power to the DC power input on the computer. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 39: Restart The Computer

    • From the Start menu, click or choose Shut Down from the pull-down menu. Power switch Momentarily press the power switch to shut down the computer. See Hardware Features on page 12 for the power switch location. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 40: Adjust The Display Brightness

    Chipset on page 72 for how to adjust the brightness through the BIOS/ UEFI. IMPORTANT Increasing the brightness from the default setting reduces the life of the LED backlight, particularly at high temperatures. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 41: Accessories And Replacement Parts

    SHOCK HAZARD: Disconnect all power to the computer before you remove components. Failure to disconnect power can result in severe electrical shock to an individual or electrostatic discharge (ESD) damage to the computer and components. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 42: Electrostatic Discharge Precautions

    2. Disconnect all cables from power outlets to avoid exposure to high energy levels. If necessary, label each cable to expedite reassembly. 3. Disconnect telecommunication cables to avoid exposure to a shock hazard from ring voltages. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 43: Post-Configuration

    3. Open the cover (B) and detach it from the chassis (C). Integrated Display Model Shown 4. After you install, replace, or upgrade internal computer components, reinstall the cover as detailed in Reinstall the Cover on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 44: Reinstall The Cover

    If you encounter resistance before then, remove the card, rotate it 180°, and reinsert. Do not force the card into the slot. Forcing the card into the slot can damage the connector pins. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 45: Drive Precautions

    Failure to follow proper safety precautions can result in severe electrical shock to an individual or ESD damage to the computer and its components. ATTENTION: Mechanical shock can damage a drive. Do not drop or bump the drive. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 46: Replace A Drive

    14. Retract the carrier lever (I) and tighten its screw to lock in place ( J). 15. Secure the drive assembly with the one screw (K). 16. Follow the steps for Post-configuration on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 47: Replace Or Add Memory Modules

    IMPORTANT Computer performance is optimized with both memory module slots populated. All 6181P computers ship with a dual memory module configuration. Memory Configuration Guidelines Follow these guidelines when you replace or add memory to the computers: • Use only standard unbuffered memory modules that conform to both PC3-10600 and SPD compliance industry standards.

  • Page 48: Replace Or Add A Memory Module

    The keyed surface is off center to assist the correct alignment. c. Press the module fully into the slot to engage the lock levers. See Figure 18 on page 6. Follow the steps for Post-configuration on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 49: Replace The Rtc Battery

    0 to 85 °C (32 to 185 °F) operating temperature range. 1. Follow the steps for Pre-configuration on page 2. Remove the computer cover as detailed in Remove the Cover on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 50 At the end of its life, collect the battery contained in this computer separately from any unsorted municipal waste. (1) The UIB is only on the front of display computers with aluminum bezels. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 51: Replace The Power Supply Unit

    DC Powered Integrated Display Model Shown 7. Turn over the computer to access the PSU. 8. Remove the screws that secure the two power connectors (F) from the PSU. 9. Disconnect the two power connectors. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 52 Open the cover and detach it from the chassis (H). 12. Remove the two screws (I) that secure the PSU to the chassis. 13. Turn over the computer to access the PSU. 14. Remove the PSU ( J). Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 53 – the two PSU power connectors and their screws – the eDP signal and panel cables c. Remove and replace any cut cable ties. 16. Follow the steps for Post-configuration on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 54 Chapter 4 Replace Components Notes: Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 55: Set-Up Utility Overview

    • Set or change the password or make other changes to the security settings. • Upgrade the system firmware. • Run the diagnostic utility to determine the cause of system malfunction. • Restore or back up the operating system. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 56: Access The Set-Up Utility

    Exit The UEFI graphical interface can be driven with either the integrated touchscreen or a keyboard and mouse. An On Screen Keyboard (OSK) pops up automatically when a user enters an entry field. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 57: Firmware Update

    The USB mass storage device that contains the firmware file must be FAT, FAT16, or FAT32 formatted to be recognized. http://www.rockwellautomation.com/compatibility/ to check for revisions and to download firmware files. 3. Click Update. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 58: Firmware Configuration

    Click to restore all set-up options to previously saved values. Save Click to save configuration changes. Previous (not shown) Click to navigate to the previous screen. Exit Click to close the set-up utility. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 59: Main

    Warranty information number Version-SYS System version, manufacture date Version-Board System board version information Serial Number Unique system serial number (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 60: Advanced

    Options: Disabled (default), 100s, 200s, 300s (seconds) IMPORTANT: This data field is only visible when PXE boot is enabled. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 61 Options: Enabled or Disabled (default) SERR# Generation Enables or disables PCI Device to Generate SERR#. Options: Enabled or Disabled (default) (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 62 Use to set the ACPI sleep state and manage power. Suspend Disabled: Computer power is totally removed by a mechanical switch. S3 (default): RAM remains powered on. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 63 Enables or disables VT-d. for Directed I/O (VT-d) Options: Enabled or Disabled (default) (1) See page 58 for an explanation of common buttons near the bottom of screen. (2) Supported on computers with Intel i7-4700EQ processors. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 64 SATA Device Type Indicates the drive type connected to the SATA port. Options: Hard disk drive (default) or solid-state drive (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 65 In this case, the IDE mode is selected. SATA Port (0, 1) Indicates the drive make, model, and size. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 66 IMPORTANT: Disabling a USB port reduces access risk from unauthorized or malicious sources. (1) See page 58 for an explanation of common buttons near the bottom of screen. (2) Applies only to display computers with aluminum bezel. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 67 Specify what state to go to when power is reconnected after a power failure (G3 state). Options: Power off, Power on (default), Last State (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 68 (1) See page 58 for an explanation of common buttons near the bottom of screen. (2) This data field is visible only when the Intel (R) Rapid Start Technology data field is enabled. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 69 Displays the Base I/O address and IRQ setting of serial port 2. Change Settings Select an optimal setting for the super IO device. Options: Auto (default), IO=2F8h; IRQ=3, IO=3F8h; IRQ=3, IO=3E8h; IRQ=3, IO=2E8h; IRQ=3 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 70 U3904 (near PCH) Min: (1) See page 58 for an explanation of common buttons near the bottom of screen. (2) This data field is visible only on computers with an Intel i7-4700EQ processor. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 71 Lets you unconfigure any provisioned management settings for AMT/ME. Options: Enabled or Disabled (default) IMPORTANT: ‘Unconfigure AMT/ME’ appears only when ‘Execute MEBx’ is enabled. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 72: Chipset

    Select this item to set parameters for the user interface button. WatchDog timer Configuration Select this item to set parameters for the watchdog timer. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 73 Options: None (default) or ~, @, #, $, %, ^, *, _, \, /, |, space bar Select Arrow key Enables or disables key combination with arrow key. Options: None (default) or Up, Down, Right, Left Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 74 (2) This field is only visible when BIOS Boot time Watchdog is enabled. (3) This field is only visible when OS time Watchdog is enabled. IMPORTANT If you enable the BIOS Boot time Watchdog, then it must be disabled before you update the BIOS firmware. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 75: Boot

    See the Boot Priority List description for the dialog box options. (1) See page 58 for an explanation of common buttons near the bottom of screen. (2) This data field is only visible on computers with CD-ROM drives. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 76: Security

    • Remove and replace the battery; see Replace the RTC Battery on page • Clear the UEFI; see Clear the UEFI on page (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 77: Save & Exit

    Discards changes that are made and closes the set-up utility. Restore Defaults Loads the optimal defaults in the set-up menu. (1) See page 58 for an explanation of common buttons near the bottom of screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 78: Diagnostics

    Diagnostics The Diagnostics menu lets you run the diagnostics utility to determine the cause of the system malfunction by testing computer components, such as the processor, memory, HDD, ODD, video, and other hardware. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 79 Select a menu option by pressing the up ↑ or down ↓ arrow keys and pressing Enter when a menu is highlighted. Press the left ← or right → arrow keys to toggle between the six Diagnostics menu selections. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 80: Ami Rescue

    The following instructions are for the built-in backup and restore utility, AMI Rescue. You can also use third party utility or software to create an image backup and restore. System images are also available from the Rockwell Automation Product Compatibility and Download Center: http://www.rockwellautomation.com/support/pcdc.page.
  • Page 81 Click to take you through steps to back up the desired data. Restore from An Image Click to take you through steps to restore the desired data. Exit Click to exit the AMI Rescue or press F4. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 82: Make A Backup

    The default destination source is the hidden partition on your hard drive. 5. Click Backup Now to start the backup process. IMPORTANT A warning appears if there is not enough free space on the destination source. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 83: Restore From An Image

    The default destination source is the primary partition on your hard drive. 5. Click Restore Now to start the restoration process. IMPORTANT A warning appears if there is not enough free space on the destination source. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 84: Hardware History

    Same hardware temperatures as identified in System Temperature History of Hardware Monitor; see page 70 for more information. Time Total runtime hours. In the above screen shot, the runtime hours are 17. Exit Returns you to the set-up menu screen (page 56). Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 85: Exit

    Set Up the UEFI Utility Chapter 5 Exit Use the Exit menu to close the UEFI set-up utility. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 86: Rockwell Automation Publication 6181P-Um003B-En-P - August

    Chapter 5 Set Up the UEFI Utility Notes: Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 87: Hardware Monitoring

    3. During POST, press F2 to access the UEFI set-up utility. 4. Click Firmware Configuration on the Main Menu screen. 5. Click Advanced from the Firmware Configuration main screen. 6. Click Hardware Monitor on the Advanced screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 88: Troubleshooting

    The issue is with a specific software or Reinstall the software or driver. driver The issue is not related specifically to Proceed to Diagnostics on page software, a driver, or a peripheral device Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 89: Diagnostics

    The selected test affects the process, which can take as little as 5 minutes or as long as 8 hours. After Diagnostics has run, you can generate a report for analysis by a technical support representative, which expedites any necessary repair process. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 90: Load The System Defaults

    3. Click Firmware Configuration on the set-up screen. 4. Click Default (A) on the Main screen. 5. Click Save (B) to save your changes. 6. Click Exit (C) to exit the UEFI set-up utility. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 91: Clear The Uefi

    To avoid damage to the computer, you must uninstall the computer and place it in its original packing material before shipping. Rockwell Automation is not responsible for damage to a computer that is shipped or transported while it is installed in a machine, panel, or rack.

  • Page 92: Dispose Of The Computer

    If a storage drive is part of what you plan to dispose, then verify that any data on it has been permanently erased or that you destroy the drive before it is disposed. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 93: Touch Screen Technology

    Driver Software The Microsoft touch screen driver is already loaded on the computer as part of the operating system. An alternate touch screen driver is also available for download at the Rockwell Automation Product Compatibility and Download Center (PCDC) at https://compatibility.rockwell aspx.

  • Page 94: Pcap Touch Screen Technology

    Scratching the surface of the touch screen can damage the display. IMPORTANT Resistive touch screens are only on Tier 2 computer models. See Computer Options on page 10 to see if your model is Tier 2. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 95: Calibrate The Resistive Touchscreen

    Perform the following steps to recalibrate the touch screen. 1. From the Windows control panel menu, select Tablet PC Settings. 2. On the Display tab of Tablet PC Settings, click Calibrate. 3. Follow the calibration instructions on the touch screen. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 96 Chapter 7 Use a Touch Screen Notes: Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 97: Clean The Computer

    To maintain your computer, it is important to clean the display, heat sink and vent holes, and to remove grease or paint. IMPORTANT 6181P computer bezels resist the following chemicals: • Alcohol (methyl or ethyl) • Cleaning naphtha • Commercial glass cleaners •...

  • Page 98: Clean The Fan (Intel Core I7 Models)

    ATTENTION: Make sure the isopropyl alcohol does not come in contact with the equipment labels. Alcohol can cause the label printing to smear. 3. Use a mild soap or detergent solution to remove residue. 4. Rinse with clean water. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 99: Available Accessories

    IMPORTANT We recommend that you use only Allen-Bradley® approved accessories. Pre-installation Checklist Review the following information before installing any accessories. • Voltage Precautions on page 41 • Electrostatic Discharge Precautions on page 42 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 100: Install An Add-In Card

    • After removing an add-in card, place it on a flat, static-free surface, component side up. • Do not slide the card over any surface. IMPORTANT Use an antistatic wriststrap connected to the work surface, and properly grounded tools and equipment. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 101 9. Refer to any installation instructions that came with the add-in card to verify that all installation steps are followed. 10. Reinstall the computer cover as detailed in Remove the Cover on page 11. Follow the steps for Post-configuration on page Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 102: Pci/Pcie Riser Board Options

    2. Remove the computer cover as detailed in Remove the Cover on page 3. Remove the three screws that secure the default PCIe x8 riser board bracket (A). 4. Remove the PCIe x8 riser board assembly from the chassis (B). Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 103 Secure it with A two-slot riser board The PCI/PCIe riser bracket provided with the kit Four screws A single-slot riser board The default PCI/PCIe riser bracket Two screws Single-slot Riser Board Two-slot Riser Board Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...

  • Page 104: Install Additional Memory

    The motherboard of the integrated display computers has two SO-DIMM slots that support up to 16 GB maximum system memory. Replace or Add Memory Modules on page 47 for further information on installing additional memory. Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 105 97 usage 78 cleaning display 97 DIMM slots memory install memory 48 installation guidelines 48 display installation precautions 47 cleaning precautions 97 mounting display, cleaning 97 panel mounting 29 Ethernet connection 36 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 106 CMOS 91 replace components diagnostic utility 89 post-configuration procedure 43 hardware monitor 87 pre-configuration procedure 42 load system defaults 90 replacement parts 41 procedure 56 RTC battery estimated life span 49 unpacking reminders 19 Rockwell Automation Publication 6181P-UM003B-EN-P - August 2017...
  • Page 108 Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400 Publication 6181P-UM003B-EN-P - August 2017 PN-XXXXXX-XX Supersedes Publication 6181P-UM003A-EN-P - May 2014 Copyright © 2017 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
