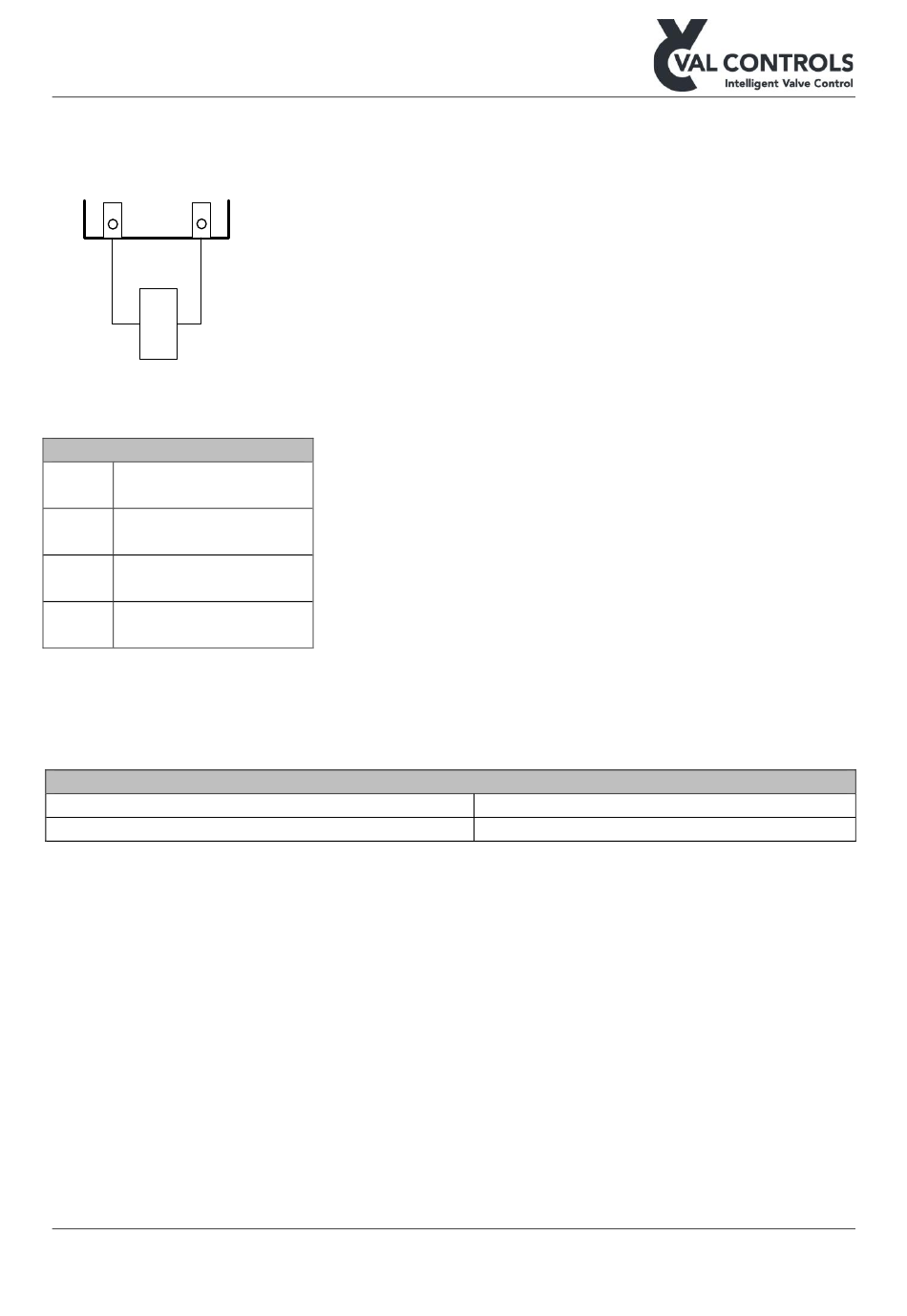

Digital output – DO1, DO2, DO3, DO4
3.4
24 VDC digital outputs.
DO
+ -
+ -

3.4.1 Terminals

DO1 13 (+)
14 (-)
DO2 16 (+)
17 (-)
DO3 19: (+)
20: (-)
DO4 22: (+)
23: (-)
All DOs (-) are common with PS2 (-)
All grounds are common with PS2 ground

3.4.2 Electrical specifications

DO – Digital outputs
Max load per digital output
Max load total
