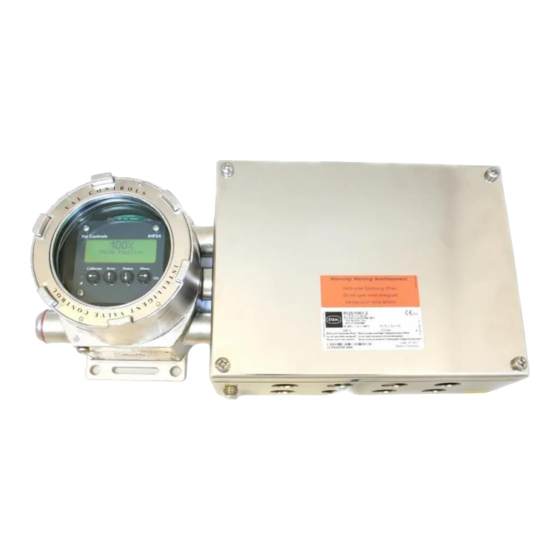

- Page 1 USER MANUAL Display replacement guide Ixx24-AF Ixx24-BF Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
- Page 2 This document describes how to replace the display print circuit boards (PCB) in an Ixx24-BF or an Ixx24-AF unit from Val Controls. 1.1 Required tools • Double-slot screwdriver Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
- Page 3 Remove the lid of the unit Unfasten the 4 cross screws in the front plate Remove the front plate Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
- Page 4 Gently remove the display Unfasten the screw in the display PCB Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
- Page 5 Mount the spare display board Fasten the screw Mount the display Important: Use the row towards the middle of the PCB Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
- Page 6 Place the front plate on the display and fasten the 4 screws Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-011 Revision: 1 vc@valcontrols.com • www.valcontrols.com...
