5139614-100 rev 4
6.
Remove the knob fastening bolt.

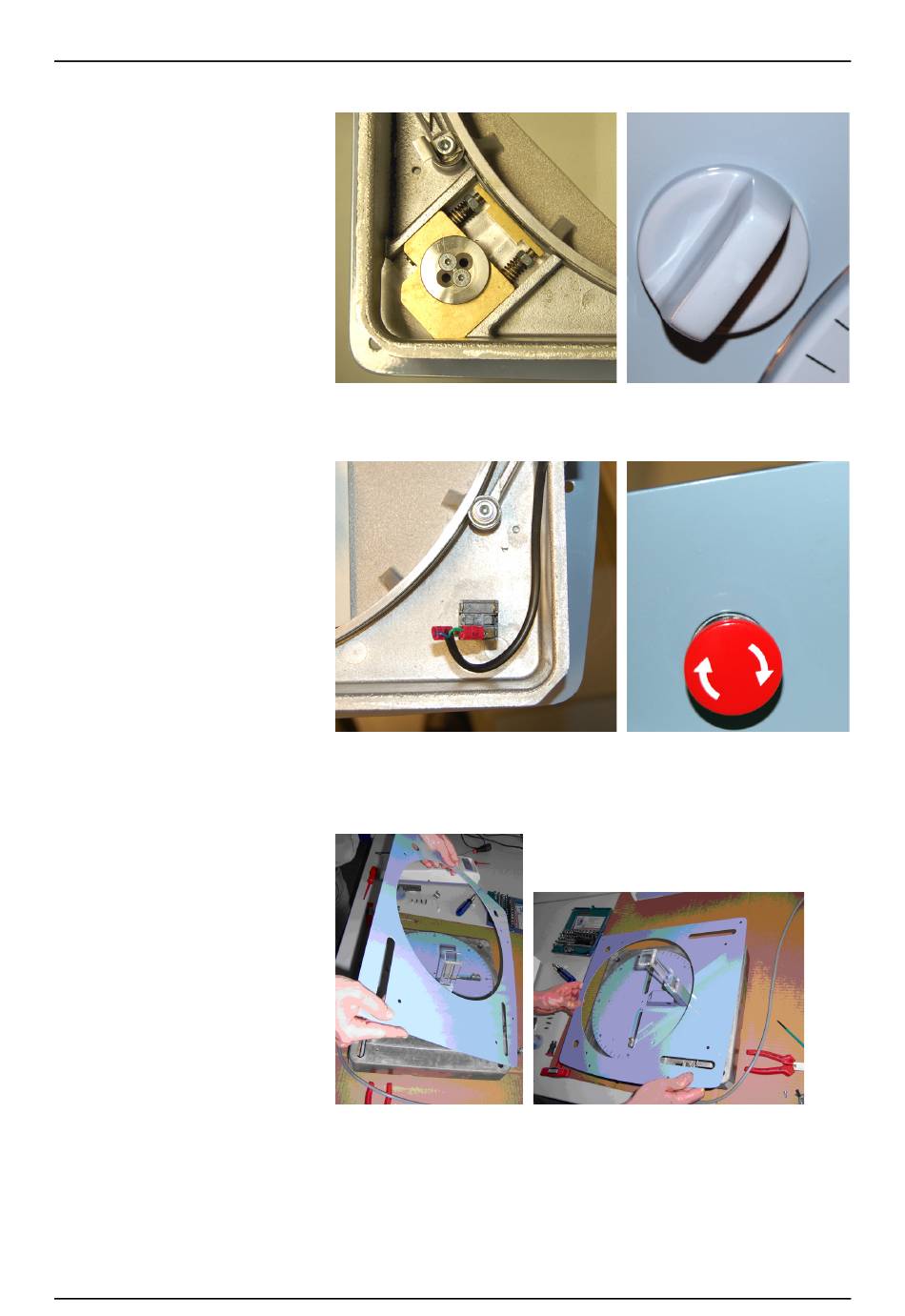

Fig 8.20. Fastening bolt
7.
Loosen the emergency stop switch.
Fig 8.22.
8.
Remove the blue bottom plate of the cephalostat head
and turn it 180°.
Fig 8.24.
Instrumentarium Dental
8 Appendix B, Unit orientation change
Fig 8.21. Knob
Fig 8.23.
Fig 8.25.
97
