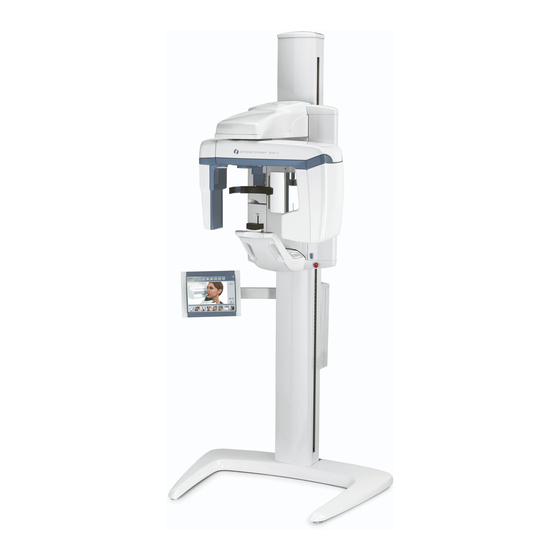

Orthopantomograph
Orthoceph
Service Program Manual
Reviewed: Rintamäki Markus 2008-05-16 15:20
Approved: Äärynen Teemu 2008-05-19 06:07
®
OC200 & OC200 D
®
OP200 & OP200 D
5140241-100 rev 3
D500293, 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orthopantomograph OP200 and is the answer not in the manual?

Questions and answers

Related Manuals for Instrumentarium Orthopantomograph OP200

Summary of Contents for Instrumentarium Orthopantomograph OP200

  • Page 1 ® Orthopantomograph OP200 & OP200 D ® Orthoceph OC200 & OC200 D Service Program Manual 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 2 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 3 Instrumentarium Dental. The original language of this manual is English. Instrumentarium Dental reserves the right to make changes in specification and features shown herein, or discontinue the product described at any time without notice or obligation.
  • Page 4 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 5: Table Of Contents

    2.18 Sr 91 CIN: Cephalostat installation program (digital units only)......31 2.19 Sr 92 CHE: Set level of self-checks ..............32 2.20 Sr 93 BAL: Adjust beam alignment board sensitivity .......... 33 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 6 Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 7: Introduction

    1 Introduction 1 Introduction 1.1 General ® Instrumentarium Dental Ortopantomograph OP200 is a panoramic X-ray unit to produce images of the dentition, TM-joints and skull (hereafter called “OP200”). OP200 has two kinds of programs, user programs (Pr) and service programs (Sr).

  • Page 8: Service Program Quick Reference

    Display collimator configuration and I/O signal states. LINEAR ADJUSTMENT VALUE Adjust the linear position of the sharp layer in VT images (only with VT enabled). Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 9 Adjust the alignment for cephalometric imaging. DISABLE/ENABLE CHECKS Temporarily bypass self-checks performed by the unit. BEAM ALIGNMENT BOARD ADJUSTMENT Adjust the sensitivity of the beam alignment board. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 10: How To Use The Service Programs

    This prevents unauthorized access to service programs and leaves the unit in state that is safe for the user and patient. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3...

  • Page 11: Service Program Features

    Error name Error name number number FILM UNIT DIGITAL UNIT LINE VOLTAGE LINE VOLTAGE IMAGE LABEL FAILURE EMERGENCY EMERGENCY SWITCH SWITCH TUBEHEAD TUBEHEAD 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 12: Approved: Äärynen Teemu 2008-05-19

    CASSETTE CEPH HOLDER MOVEMENT MOVEMENT FAILURE FAILURE Z MOVEMENT Z MOVEMENT FAILURE FAILURE CEPH BEAM ALIGNMENT FAILURE NO SYNC NO SYNC ERROR ERROR Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

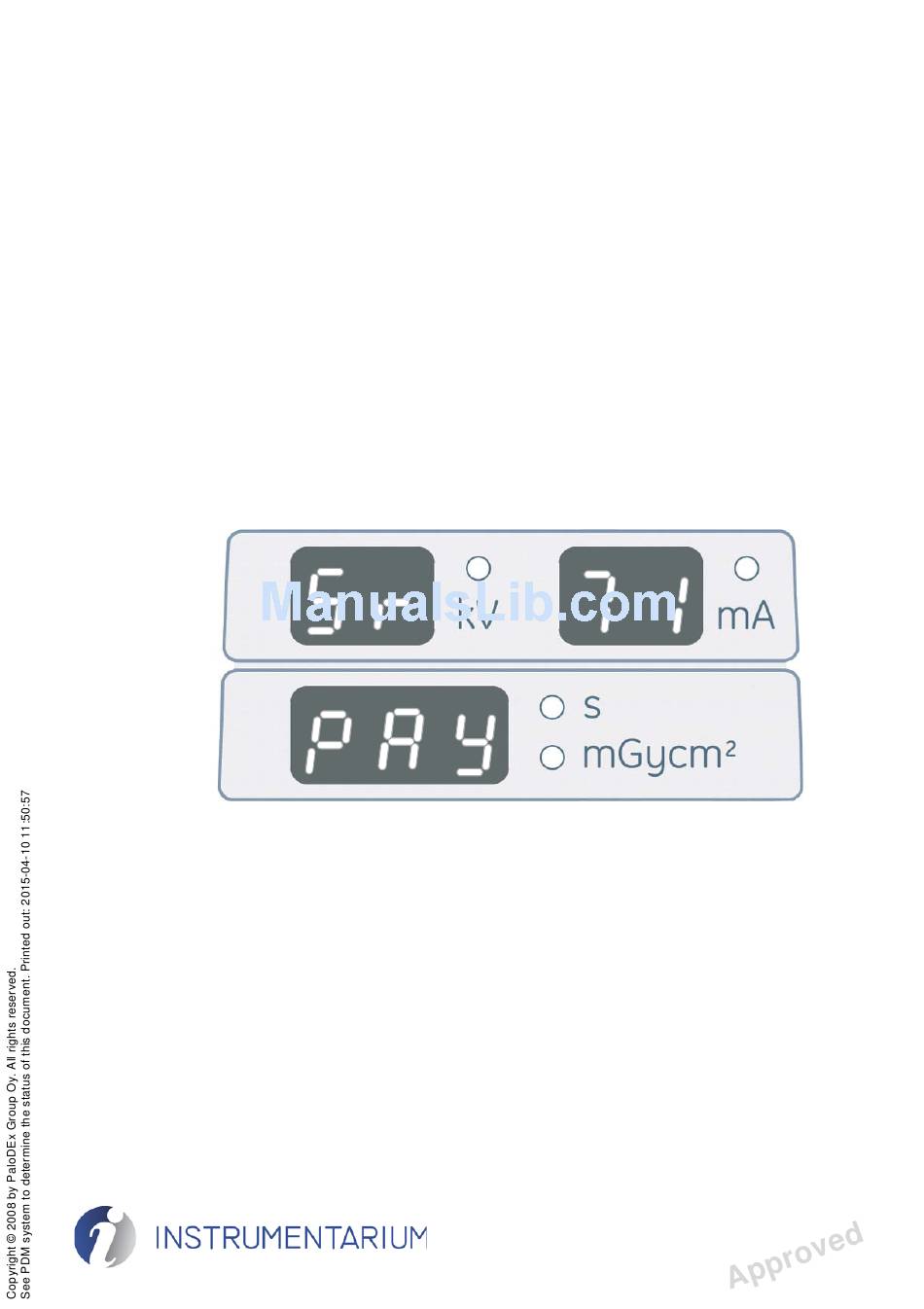

  • Page 13: Sr 71 Pay: Set Lease Period

    (0) activates Er 46 PAy, which prevents exposures. Other numbers adjust the stored exposure counter into a number above the total exposure count. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 14: Sr 72 Lca: Adjust Lateral Tmj Image Area (Film Units Only)

    Lateral view jaw closed and open X-ray image, or take a new image. Select imaging program P7 and the lowest technique factors. Make an exposure and process the film. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3...
  • Page 15 Check the film for symmetry. If the result is not satisfactory, return to Sr 72 LCA and repeat the steps 1 to 7. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 16: Sr 74 Ioc: Display Cpu Input/Output Signal Check

    NOTE! The control panel display is updated with a small delay. Remember this when interpreting frequently changing signals. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 17 ROTENA Rotational movement enable CEPHDIR Ceph movement direction (right) CEPHENA Ceph movement enable LINDIR Linear movement direction (toward pillar) LINENA Linear movement enable 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 18 CASLIMSW Cassette limit switch / head support vertical position (down) CASMIDSW Cassette middle switch / Autocollimator presence detection LINMIDSW Linear movement middle switch Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 19 Layer adjustment button, towards pillar CENWARD Layer adjustment button, center PATWARD Layer adjustment button, towards patient TEMPFAIL Tubehead overheated STOPSW Emergency stop switch 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 20 (Digital I/O board jumper X15: L) CEPHR Ceph at right side (Digital I/O board jumper X15: R) CEPHDOWN Vertical movement up button on cephalostat Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 21: Reviewed: Rintamäki Markus 2008-05-16

    ZLIMSW Vertical movement limit switch CEPHMIDSW Cephalostat middle switch CEPHLIMSW Cephalostat limit switch Fig 2.1. Led procedures concerning movement of the rotating unit. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 22: Sr 76 Pup: X-Ray Tube Warm-Up

    OK button twice. If the FAIL message occurs repeatedly, check OP200 Troubleshooting Manual, chapter Sy 22 Arc for further instructions. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 23 Switch the unit off and on again to reset it to normal operating mode. Ensure proper operation by making a panoramic exposure (P1) using maximum exposure values. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 24: Sr 77 Prh: Adjust The Preheat Setting

    If correct mA feedback was not reached during the exposure, the previous preheat reference is displayed. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 25: Sr 78 Tha: Set Dose Calibration Constant (Dcc)

    OK. To cancel any changes, select cncL by first pressing the up button and thereafter the left button. Press OK to exit the program. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 26: Sr 79 Sup: Display Line Voltage

    (the speed most typically used) of the movement in question. Setting it to e.g. 0.50 means the movement is done at 50% of the nominal speed. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3...
  • Page 27 Limit values for movement test acceptation CA (cassette) ± 1.0 mm CE (cephalostat) ± 1.0 mm ro (rotation) ± 2.0 li (linear) ± 1.2 mm 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 28: Sr 81 Bpl: Display Biteplate Properties (Volumetric Tomography Option Only)

    0,65 +/- 0,2V Left Molar 1,4 +/- 0,2V Left Canine 2,02 +/- 0,2V Incisor 2,73 +/- 0,2V Right Canine 3,44 +/- 0,2V Right Molar Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 29: Sr 82 Col: Set/Display Collimator Information

    0 to 10, uneven numbers being the in-slot positions. Usage: Select Sr 82 COL. Use the information displayed for e.g. troubleshooting purposes. Press OK to exit the program. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 30 "LEFT" or "RIGHT" NOTE! Configuration of the first slot is not possible if OrthoTrans is enabled. This slot is shown as “ortr”. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3...

  • Page 31: Sr 86 Sto: Store Settings

    With Sr 92 Che set to nBp, take a VT panoramic image of the pin-ball phantom. Select Sr 87 LAL. The current adjustment value is shown on the time/dose display. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 32: Sr 88 Cal: Disable Automatic Cephalostat Alignment Correction (Digital Units Only)

    OFF means that it's disabled (troubleshooting). Using the left and right buttons, disable or enable automatic adjustment as appropriate. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 33: Sr 88 Cal: Set Cephalostat Alignment Value (Film Units Only)

    (shown in the mA field). The value associated with the option is shown in the time/dose field. The options available are described below. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 34 The Ortho (axially corrected) Lateral TMJ imaging program is used as imaging program P6. Ortho Trans is disabled. Ortho Trans is enabled. (FILM ONLY) Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 35 Change the option's value to OFF by pressing the left button or on by pressing the right button. Press OK to exit the program. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 36: Sr 90 Pin: Panorama Installation Program

    AEC and Test mode the AEC frequency is displayed in the time/dose field. Make adjustments and repeat steps 1-7 if needed. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 37: Sr 91 Cin: Cephalostat Installation Program (Digital Units Only)

    Only the adjustment value can be edited in Test mode. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 38: Sr 92 Che: Set Level Of Self-Checks

    Some of the levels are only available in digital / film based units. Disabled check or operation Level PC link Collimator, Cassette Biteplate Radiation Earholder, output Ceph beam alignment Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...

  • Page 39: Sr 93 Bal: Adjust Beam Alignment Board Sensitivity

    Change channel by pressing the left / right buttons. Select correct collimator. Manual collimator: Move the cephalometric collimator into position. Use copper filtration as appropriate for the channel. 5140241-100 rev 3 Instrumentarium Dental Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 40 Adjust the channel so that it’s barely triggered during exposure (the corresponding LED is lit). Repeat steps 2 to 6 for all channels. Press OK to exit the program. Instrumentarium Dental 5140241-100 rev 3 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3...
  • Page 41 Reviewed: Rintamäki Markus 2008-05-16 15:20 D500293, 3 Approved: Äärynen Teemu 2008-05-19 06:07...
  • Page 42 Instrumentarium Dental reserves the right to make changes in specification and features shown herein, or discontinue the product described at any time without notice or obligation. Contact your Instrumentarium Dental representative for the most current information. Copyright © 05/2008 by PaloDEx Group Oy. All rights reserved.
