ETI 7000 Operating Instructions

GUARANTEE - The Moisture Meter carries a
two year instrument warranty against defects
in either components or workmanship.
During this period, products that prove to
be defective will, at the discretion of ETI, be
either repaired or replaced without charge.
The product warranty does not cover damage
caused by fair wear and tear, abnormal
storage conditions, incorrect use, accidental
misuse, abuse, neglect, misapplication or
modification. Full details of liability are
available with ETI's Terms & Conditions of
Sale at www.etiltd.com/terms. In line with our
policy of continuous development, we reserve
the right to amend our product specification
without prior notice.
model order code
7000 Moisture Meter
224-070
7250 Timber Moisture Meter
224-075
manufactured by
Electronic Temperature Instruments Ltd
Worthing · West Sussex · BN14 8HQ
tel: 01903 202151 · email: sales@etiltd.com
www.etiltd.com
545-071/22.04.14

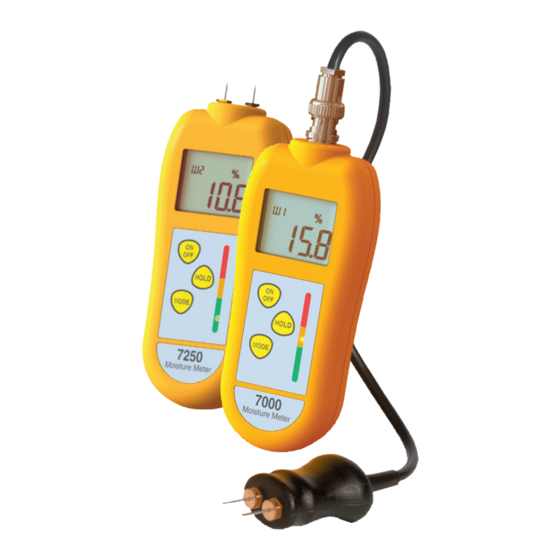

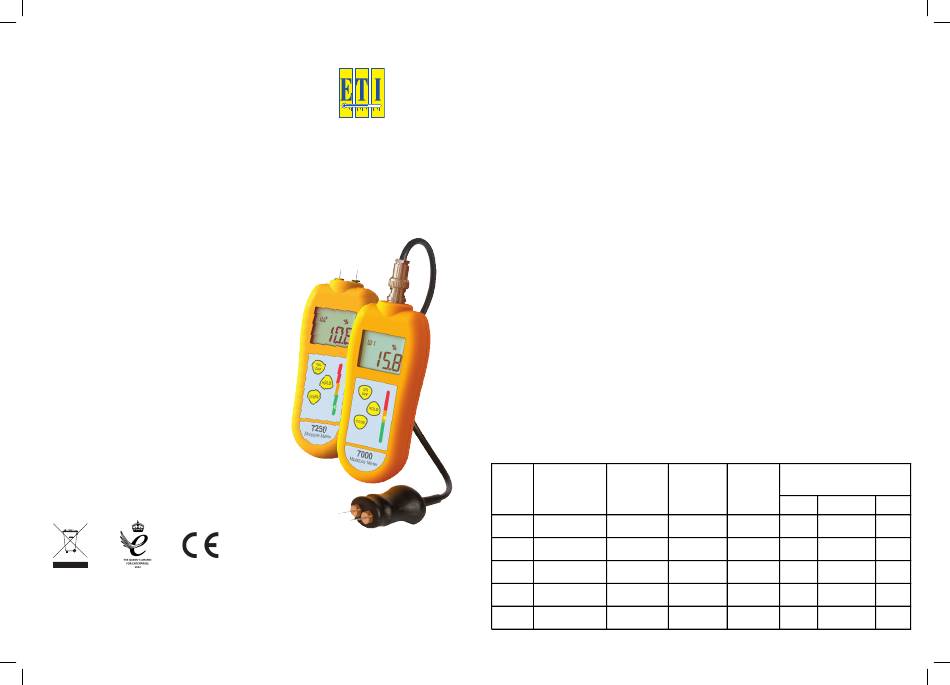

7000 & 7250
Moisture Meters
Operating Instructions
INSTRUMENT OPERATION
7000 Moisture Meter - Connect a probe
via the BNC socket located at the top of the
instrument and switch the instrument on.
7250 Moisture Meter - Remove the black
protective cap on the top of the instrument,
taking care of the moisture meter pins.
Press the pins on the moisture meter or
probe firmly to the surface to be measured.
A moisture reading will then be displayed on
the screen and the LED's within the keypad
will illuminate to indicate the moisture
measurement. The LED displays three colours
green - OK, amber - WARNING and red -
DAMP .
MODE - The instrument incorporates five
different measurement scales. Press the
MODE button to cycle through the different
scales of measurement which are listed in
the table below.
Linear/Reference is a general scale of
moisture measurement used for all materials
and is listed to cover materials which are not
covered by the scales 1 - 4. This scale can
also be used to compare the material under
test to a known dry sample.
Readings above the fibre saturation point of
the material are only approximations. The
saturation point for different species of wood
is typically in the range of 25 to 30 %.
Scale Mode Display Icon
1 Wood 1 W1
2 Wood 2 W2
3 Plaster P1
4 Concrete C1
5 Linear/Reference Lin
HOLD - Press the HOLD button to freeze the
display, 'HOLD' is displayed on the screen.
Press again to continue measuring.
AUTO-OFF - The instrument will switch off
automatically after 10 minutes. To disable the
auto-off function, press and hold the HOLD
button whilst switching on the unit - 'auto-off
disabled' will then scroll across the screen to
confirm this.
Please note: when the unit is turned off the
auto-off function will be re-enabled.
BATTERY REPLACEMENT - Replace the battery
when the battery icon is displayed. The meter
will continue to measure accurately but after
further usage the meter will display 'flat bat'
and 'shutdown'.
Unscrew the screw on the back of the
meter and replace with three AAA batteries,
ensuring the polarity is correct.
Led Display
Range Resolution
Green Amber
6.0 - 40.0 % 0.1 <14 % 14 - 20 %
8.0 - 40.0 % 0.1 <14 % 14 - 20 %
0.1 - 15.0 % 0.1 <1 % 1 - 3 %
0.5 - 12.0 % 0.1 <2.5 % 2.5 - 4 %
0 - 1000 1 <375 375 - 575
Red
>20 %
>20 %
>3 %
>4 %
>575
