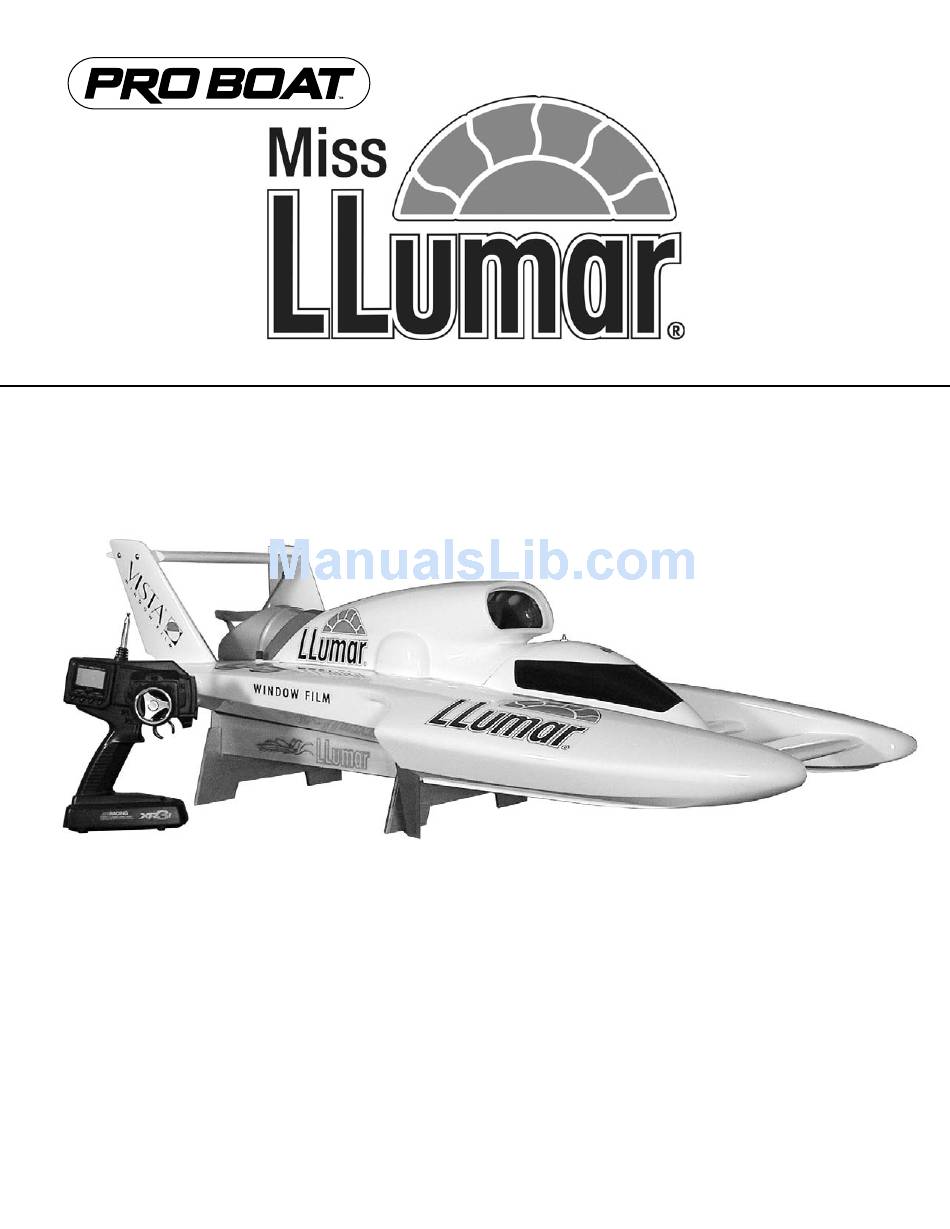

1/8-Scale Miss LLumar Unlimited Hydroplane
Owner's Manual
Specifications
Length .......................................................................................45.25 in (1131.3mm)
Beam ........................................................................................... 23.75 in (593.8mm)
Engine ............................................................. Zenoah
G26M and Tuned Exhaust
®
Speed .............................................................................................................+35 MPH
Radio System ........................................................................ JR
XR3i FM 75MHz
®
Propeller .................................................................................................. Prather 270
Advertisement
Table of Contents
Related Manuals for Pro Boat Pro Boat Miss LLumar
Summary of Contents for Pro Boat Pro Boat Miss LLumar
- Page 1 1/8-Scale Miss LLumar Unlimited Hydroplane Owner's Manual Specifications Length ..................45.25 in (1131.3mm) Beam ................... 23.75 in (593.8mm) Engine ............. Zenoah G26M and Tuned Exhaust ® Speed ......................+35 MPH Radio System ................ JR XR3i FM 75MHz ® Propeller ....................Prather 270...
-
Page 2: Table Of Contents
Carefully unpack your Miss LLumar and examine the boat and its contents. The box should contain The Pro Boat Miss LLumar is a professionally built, the Miss LLumar RTR with radio installed, a boat ready-to-run fiberglass model. -
Page 3: Limited Warranty & Limits Of Liability
Inc. will, at its option, (i) repair or (ii) replace, any This is a sophisticated hobby product and not a product determined by Horizon Hobby, Inc. to be toy. It must be operated with caution and common defective. In the event of a defect, these are sense and requires some basic mechanical ability. -
Page 4: Limited Warranty Period
Limited Warranty & Limits of Liability (cont) Limited Warranty Period lost or damaged parcels, as Horizon Hobby, Inc. is not responsible for merchandise until it arrives and Horizon Hobby, Inc. guarantees Pro Boat ™ is accepted at our facility. Include your complete... -
Page 5: Additional Required Items
Additional Required Items Although the Miss LLumar comes fully assembled and ready for action, you will need a few additional items in order to run your boat. You will need the following: Zenoah® 2-Cycle Oil (ZEN20001) Fuel Pump (HAN155) CA or epoxy glue 12 “AA”... -
Page 6: Section 1: Building The Boat Stand
Section 1: Building the Boat Stand Parts Required Plywood boat stand pieces (4) Tools and Adhesives Needed CA or epoxy 1. Attach the side boat pieces by interlocking them into the end pieces as shown. 2. Secure the interlocking boat stand with medium thick CA or epoxy. -
Page 7: Section 3: Removing The Canopy
Section 3: Removing the Canopy Unscrew the 2 knurled hatch-mounting screws from the rear of the hatch. Lift the hatch from the boat. Section 4: Installing the Radio System Batteries Tools and Accessories Required 12 "AA" batteries 2.5mm hex wrench Receiver Batteries ... -
Page 8: Transmitter Batteries
Section 4: Installing the Radio System Batteries (cont) 4. Plug the switch harness into both the receiver 4. Insert the battery holder in the transmitter and the battery box following the instructions following the directions provided with the provided with the radio. -
Page 9: Section 5: Installing The Rudder
Section 5: Installing the Rudder Parts Required Rudder 2.5mm hex screw Tools and Adhesives Required 2.5mm hex driver 1. Locate the stainless steel rudder and 2.5mm hex screw. 3. Find the flat spot on the rudder. Using the 2.5mm hex screw, tighten the hex screw on the flat spot as shown. -
Page 10: Section 7: Fueling The Tank
Section 7: Fueling the Tank ® Use only Zenoah 2-Cycle Synthetic Oil and gasoline mixed 32:1 to power the Miss LLumar. Keep the fuel in a moisture-free environment, as stale fuel will cause the Zenoah G26M engine to lose performance. Section 8: Fuel/Oil Mixture Parts Needed ... -
Page 11: Section 10: Starting The Engine
Section 10: Starting the Engine ® Note: The Zenoah G26M Pull-starting the Engine carburetor is factory adjusted to deliver optimum performance. See the Zenoah Engine manual for fine-tuning adjustments and other helpful information to make your RC boating experience trouble-free. Priming the Engine With an assistant holding the boat to the boat stand and bracing the engine with one hand, pull... -
Page 12: Section 11: Stopping The Engine
Section 11: Stopping the Engine Idle the boat near shore and press the kill switch located on top of the cockpit as shown. Section 12: Initial Launch of the Miss LLumar With the transmitter antenna up, maneuver the Miss If at anytime you notice the boat and/or radio LLumar in an oval, turning only to the right at slow system are not functioning correctly, end the to medium speeds. -
Page 13: Section 13: Cooling System
Section 13: Cooling System Water Pump Hint: To test each cooling line for obstructions or a leak in the cooling system, place a piece of tubing over the water inlet tubes in front of the rudder and blow into the tube. When testing for obstructions in the cooling system, be sure to isolate each system by pinching the appropriate water lines. -
Page 14: Section 14: Clutch
Section 14: Clutch The centrifugal clutch automatically engages when the engine rpm is increased. Be sure that the idle speed adjustment is set low enough so that the propeller does not rotate at idle. Periodically disassemble the clutch and clean debris from the clutch shoes and the inner clutch bell with DYN5505 Dynamite®... -
Page 15: Section 15: Troubleshooting Guide
Section 15: Troubleshooting Guide Problem Possible Solution ® Engine will not start Improper needle setting: See Zenoah Engine Manual Out of fuel: Fill fuel tank Improper fuel: Use fresh Gasoline & Zenoah 2-Cycle Oil (mixed 32 parts gas to 1 part oil) Bad spark plug: Replace spark plug Flooded engine: Remove spark plug, invert boat and operate the pull-starter to remove fuel... - Page 16 Section 17: Maintenance (cont) Simply follow the instructions below to properly lubricate your drive shaft. 1. Carefully note how the entire drive shaft is installed. This is pivotal in order to properly re-assemble the drive shaft after you have finished lubricating it.
-
Page 17: Section 18: Replacement Parts
Section 18: Replacement Parts Your local hobby store should carry a good supply of Miss LLumar replacement parts. You can also purchase these parts from Horizon Hobby at www.horizonhobby.com or call toll-free 1-800-338-4639. PRB2551 ....................Replacement Hull PRB2552 ....................Cockpit PRB2261 .................... -
Page 18: Appendix
Appendix Spark Plug PRB2558 Pull Start PRB2556 PRB2273 PRB2563 Primer Button Carburetor PRB2563 PRB2275 PRB2283 PRB2252 Carburetor PRB2651 PRAB270 PRB2254 PRB552 PRB2278... - Page 19 Notes...
- Page 20 © 2006 Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, Illinois 61822 (877) 504-0233 www.horizonhobby.com Printed in China 8551...
