DEMO MANUAL EVAL-LT8356-1-AZ

EMISSIONS SHIELD (OPTION)

For the lowest emissions, an EMI shield can be attached to

EVAL-LT8356-1-AZ. The PCB was fabricated with place-

holders for six shield clips that can hold a 44mm × 44mm

metal shield. Part number for an example shield can

be found in the Parts List section in the Optional EMI

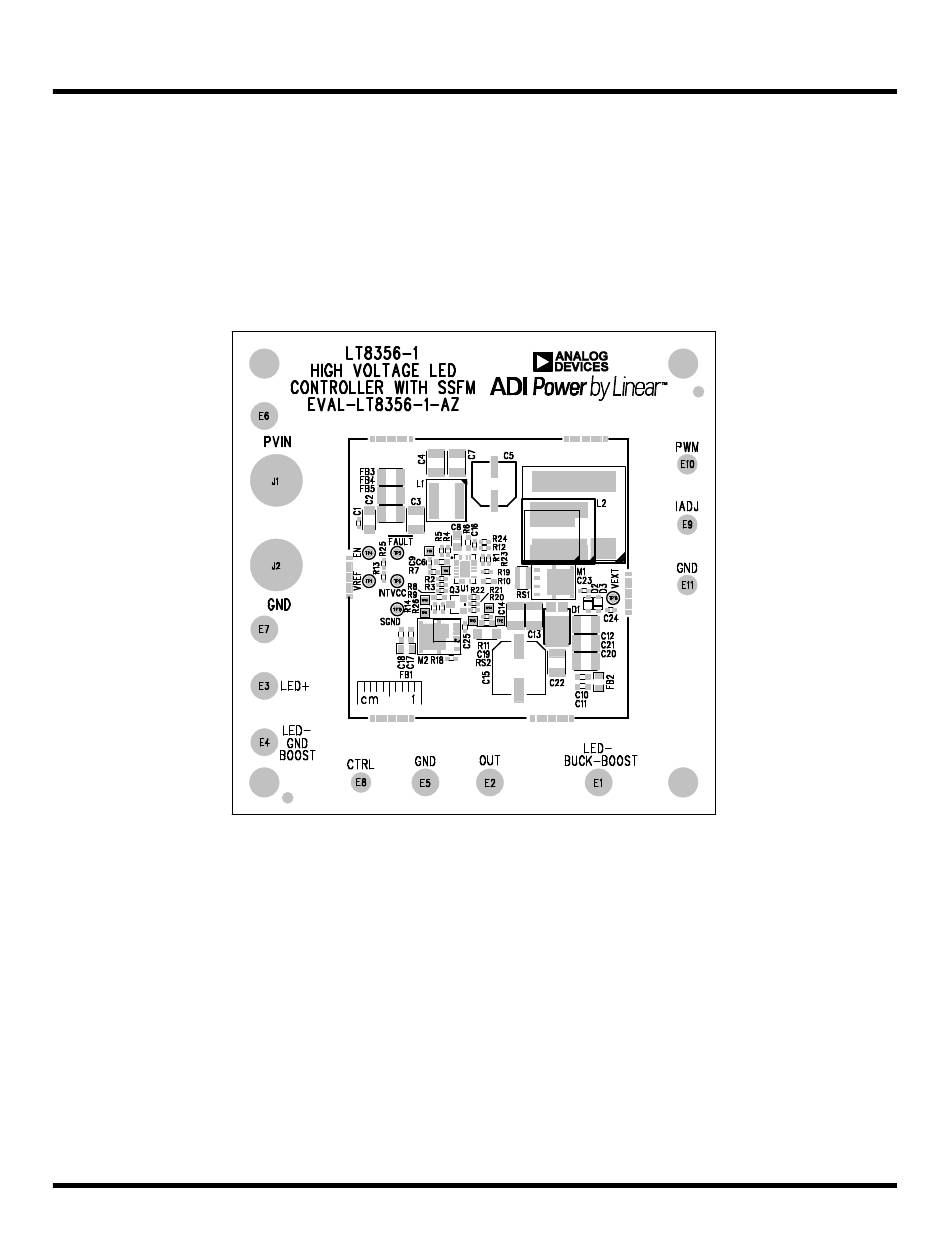

Figure 11. EVAL-LT8356-1-AZ Top Silkscreen Outlining Placement of Shield Clips and EMI Shield on PCB

Filter Components section. The Top silkscreen picture,

Figure 11, shows the placeholders for the six surface

mount shield clips. Emissions can be tested with and

without the removable clip-shield.

Rev. A
