GENERAL DESCRIPTION

(continued from Page 1)
Supply margining can be performed with a minimum of
external components. The margining loop can be used for
in-circuit testing of a board during production (for example, to
verify the board's functionality at −5% of nominal supplies),
or it can be used dynamically to accurately control the output
voltage of a dc-to-dc converter.
The device also provides up to 10 programmable inputs for
monitoring under, over, or out-of-window faults on up to 10
supplies. In addition, 10 programmable outputs can be used as
logic enables. Six of these programmable outputs can provide
up to a 12 V output for driving the gate of an N-channel FET,
which can be placed in the path of a supply.
VX1
VX2
VX3
VX4
VX5
VP1
VP2
VP3
VP4
VH
AGND
VDDCAP
D1P D1N D2P D2N
ADM1063
TEMP INTERNAL
SENSOR DIODE
GPI SIGNAL
CONDITIONING
GPI SIGNAL
CONDITIONING
SELECTABLE
ATTENUATOR
SELECTABLE
ATTENUATOR
REG 5.25V
CHARGE PUMP
VDD
ARBITRATOR
GND VCCP

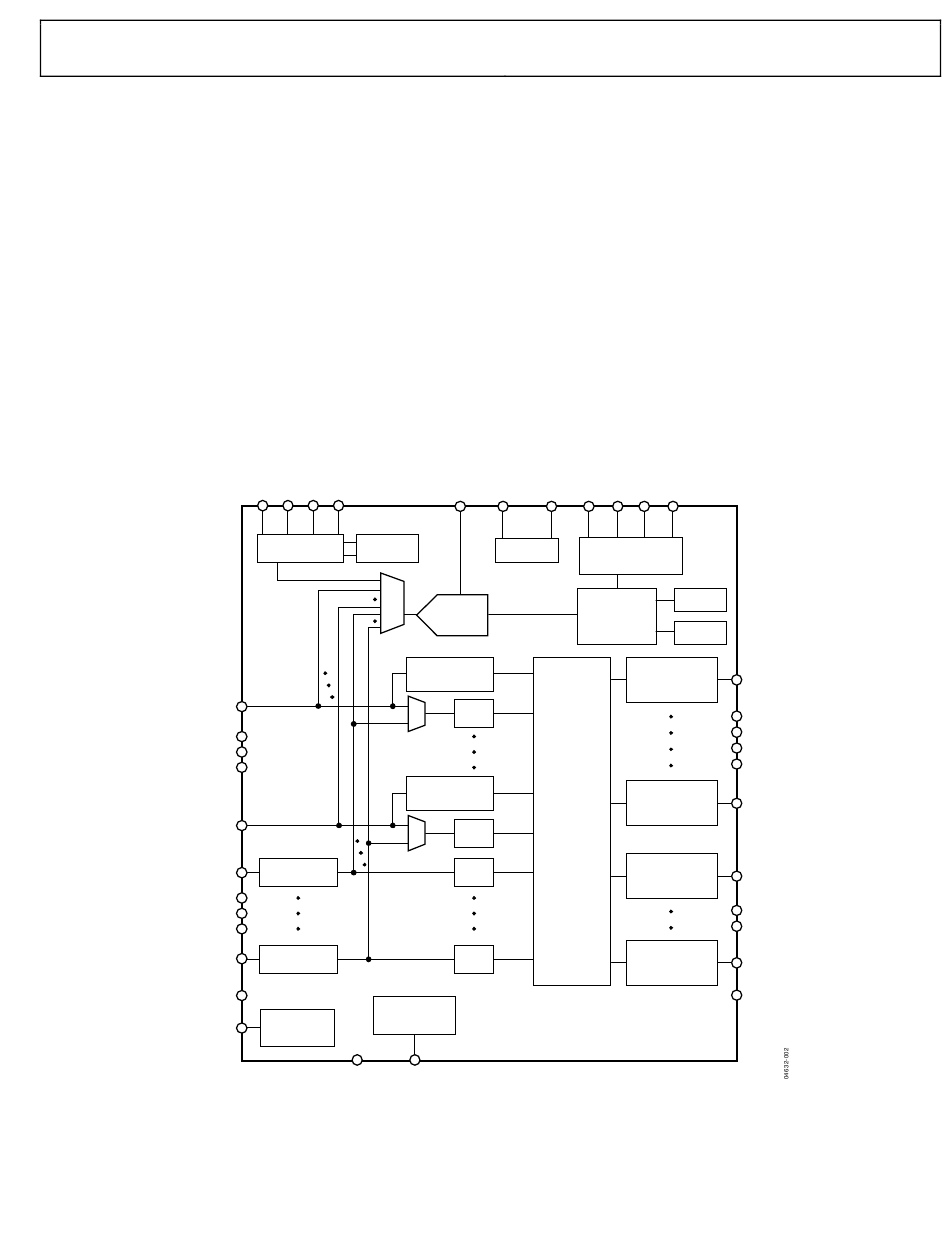

Figure 2. Detailed Block Diagram
Temperature measurement is possible with the ADM1063. The
device contains one internal temperature sensor and two pairs
of differential inputs for remote thermal diodes. These are
measured by the 12-bit ADC.
The logical core of the device is a sequencing engine. This state-
machine-based construction provides up to 63 different states.
This design enables very flexible sequencing of the outputs,
based on the condition of the inputs.
The device is controlled via configuration data that can be
programmed into an EEPROM. The entire configuration can
be programmed using an intuitive GUI-based software package
provided by ADI.
