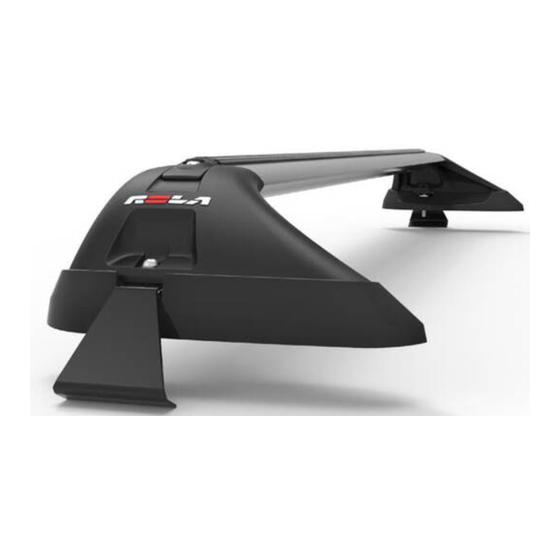

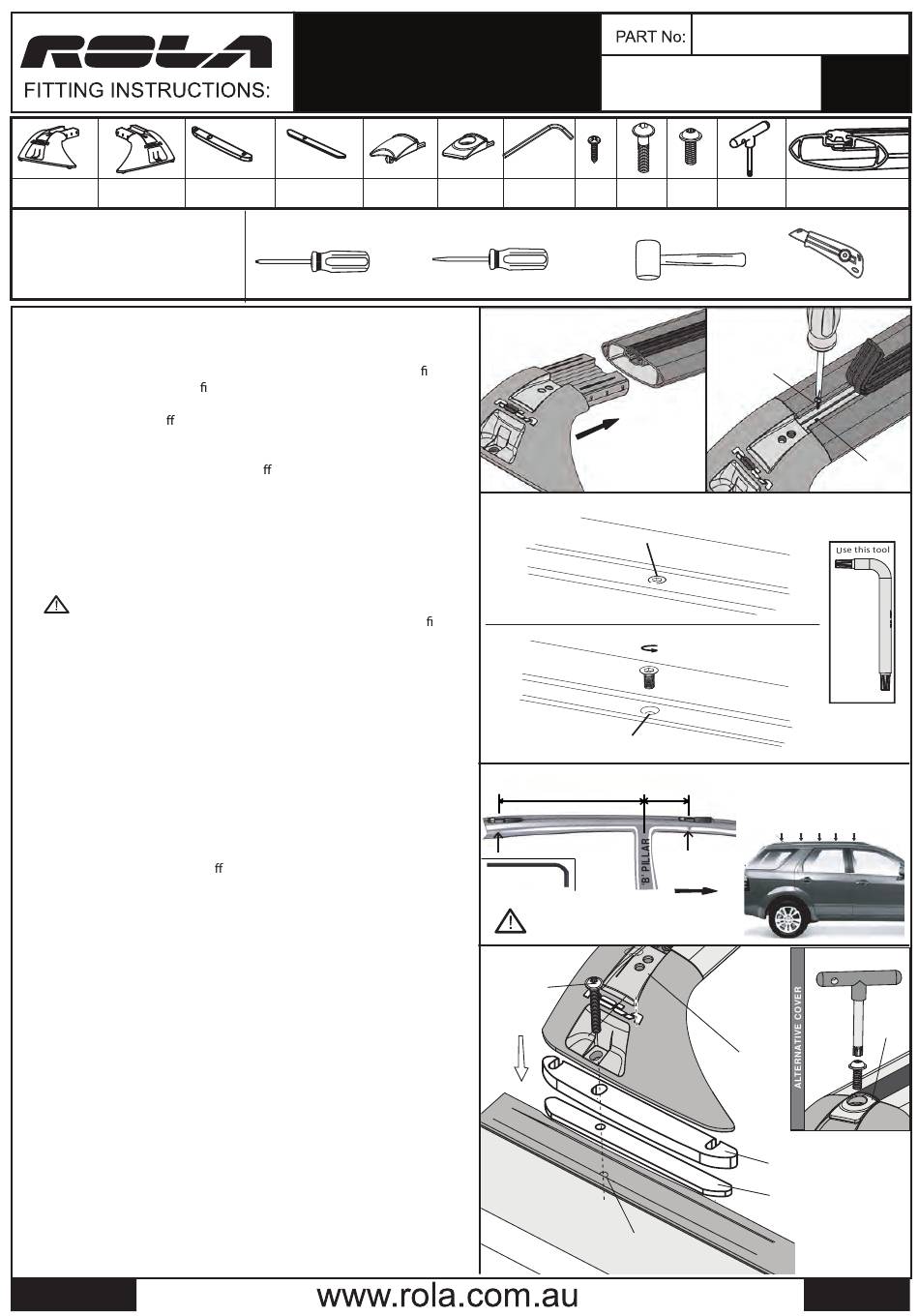

Rola RMX433 Fitting Instructions

x2 x2
END SUPPORT END SUPPORT
(RIGHT) (LEFT)
ASSEMBLY OF CROSS-BARS
1. Ensure the roof is clean, free from dust and grease.
2. Insert the neck of the End-Support into the void of the Cross-bar pro le.
They are designed to be a tight t: use a rubber mallet if necessary (Fig.1)
3. Pull back the rubber Bu er Strip about 20mm until the screw hole can be
accessed.(Fig. 2) Using a Phillips Head Screwdriver, fasten the screw through
the cross-bar and into the End Support.
Do this for all four sides and replace the bu er strip.
FITTING CROSS-BARS TO VEHICLE
4. Identify your anchor points and remove factory screws, (if applicable) using
tool supplied - refer to Fig 3 & Fig. 4 Remove screws at position 2 and 4 only.
Keep these factory screws in a safe place.
Position the track and base plates onto the roof in the positions as speci ed in
Fig 4 and Fig 5. Place the Cross-bar assemblies (Front & Rear) in their positions
on top of base plates.
5. Ensuring the base plates are aligned with the anchor points and holes in the
end supports are corresponding with their positions on the vehicle, ( 2 & 4 )
proceed to fasten the end supports in position, using the security bolts
provided. (Fig. 4 - 5)
6. Repeat the same procedure for opposite sides of vehicle..
7. Mount your "Accessories" set onto the cross-bars using the Global Mount
Channel. Once installed, insert the 'Global Channel' Covers into the End
Supports.
Note: You have a choice of 2 - (a) quick access snap-on cover or (b) long term
mounting - security cover to cap o and lock the mount channel. (Fig. 5)
Issue A
644
21-01-2014
RMX Series Roof Racks
Ford Territory 4D SUV
SX / SY / SZ 2004 Onwards
x4 x4
BASE PLATE TRACK PLATE
(5mm PL) (3mm PL)
Phillips Head Screwdriver
x4 x4
SNAP-ON SECURITY
ALLEN KEY
COVER COVER
Please Note: You will require the following tools
Flat Head Screwdriver
Fig. 1
Fig. 3
Anchor Point
Fig 4.
ANCHOR POINT
Size 3 Allen Key
Fig. 5
Security Bolt
YOUR ANCHOR POINT ACCESS
MAY LOOK DIFFERENT TO
THIS ILLUSTRATION
CARRYING CAPACITY
x1 x4 x4 x4
M6x27 M6x12
SCREW SECURITY SECURITY ASSEMBLY
BOLT BOLT
Rubber Mallet
Fig. 2
Factory Screw
ANCHOR POINT
Front
Quick Access
Snap-on Cover
THREADED
ANCHOR HOLE
RMX433
60 kg
x2
x1
CROSS-BAR ASSEMBLY
KEY
Safety Knife
Screw
Screw hole
POSITIONS
5 4 3 2 1
Fig. 6
Security
Cover
M6x27
Base Plate
Track Plate
page 1 of 2
