Product Code Number: RMEX16-2 & CRM20-2
Maximum Carrying Capacity:

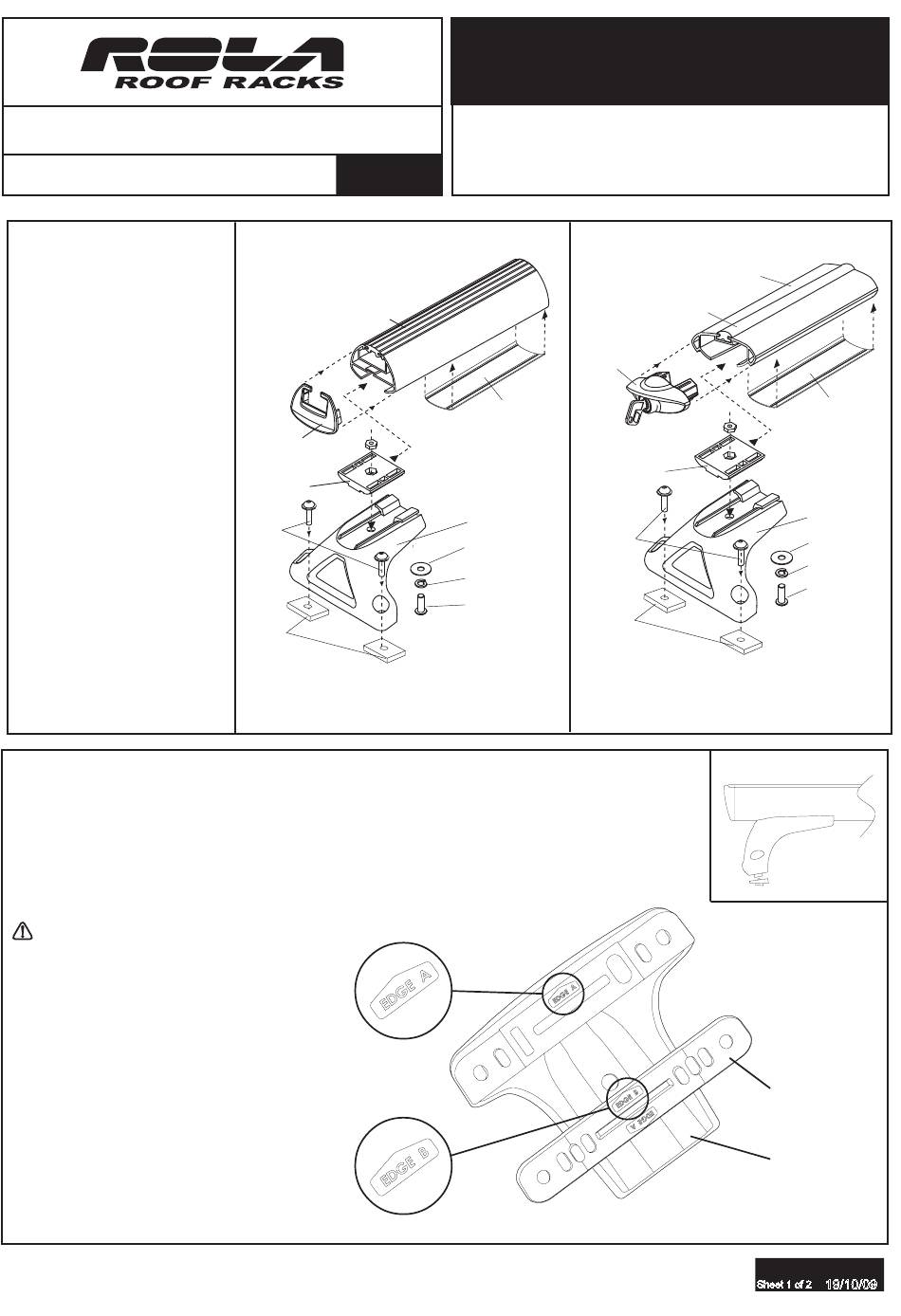

STEP 1
Fitting End
:
Support to Cross-bar
NOTE: Your purchased kit contains
either the "Commercial Series" parts or
the "Sports Series" parts. Please refer to
diagrams on the right.
A. Insert End Support into
Cross-bar.
B. Insert Nut into Bottom Slug
and then slide both
components into the
cross-bar.
C. Loosely fasten using Bolt,
Spring Washer and Flat
Washer.
Assemble as shown in Fig.1
D. Fit End Cap to each end
of cross-bar.
STEP 2:
Fitting Wedge Block to End Support
A. Fit Wedge Block to End Support.
(Orientation shown in Figures 2a & 2b.)
NOTE: The Wedge Block should clip onto
End Support.
It is important that the Wedge Block be
assembled in the correct orientation
as shown.
Ref. Owners
Manual

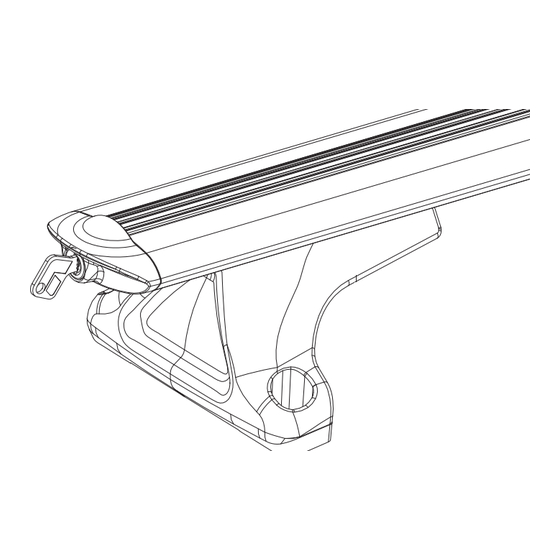

COMMERCIAL SERIES
Commercial Buffer Strip
Commercial Bar
End Cap
Bottom Slug
Security
Bolt
Cage nut
Fig. 2 a
www.rola.com.au
Land Rover
Discovery 3 4d 4wd wgn
4/05 ON
REMOVABLE EXTENDED &
HEAVY DUTY ROOF RACKS
Commercial
Cross Bar
RE Global Bar
End Cap
Under Cover Strip
Bottom Slug
End Support
Security
Bolt
Flat Washer
Spring Washer
M8 Bolt
Cage nut
Fig.1a.
SPORTS SERIES
RE Global
Cross Bar
Buffer Strip
Under Cover Strip
End Support
Flat Washer
Spring Washer
M8 Bolt
Fig. 2b
Wedge Block
End Suppor t
545
Issue B
19/10/09
Sheet 1 of 2
Fig.1b.
