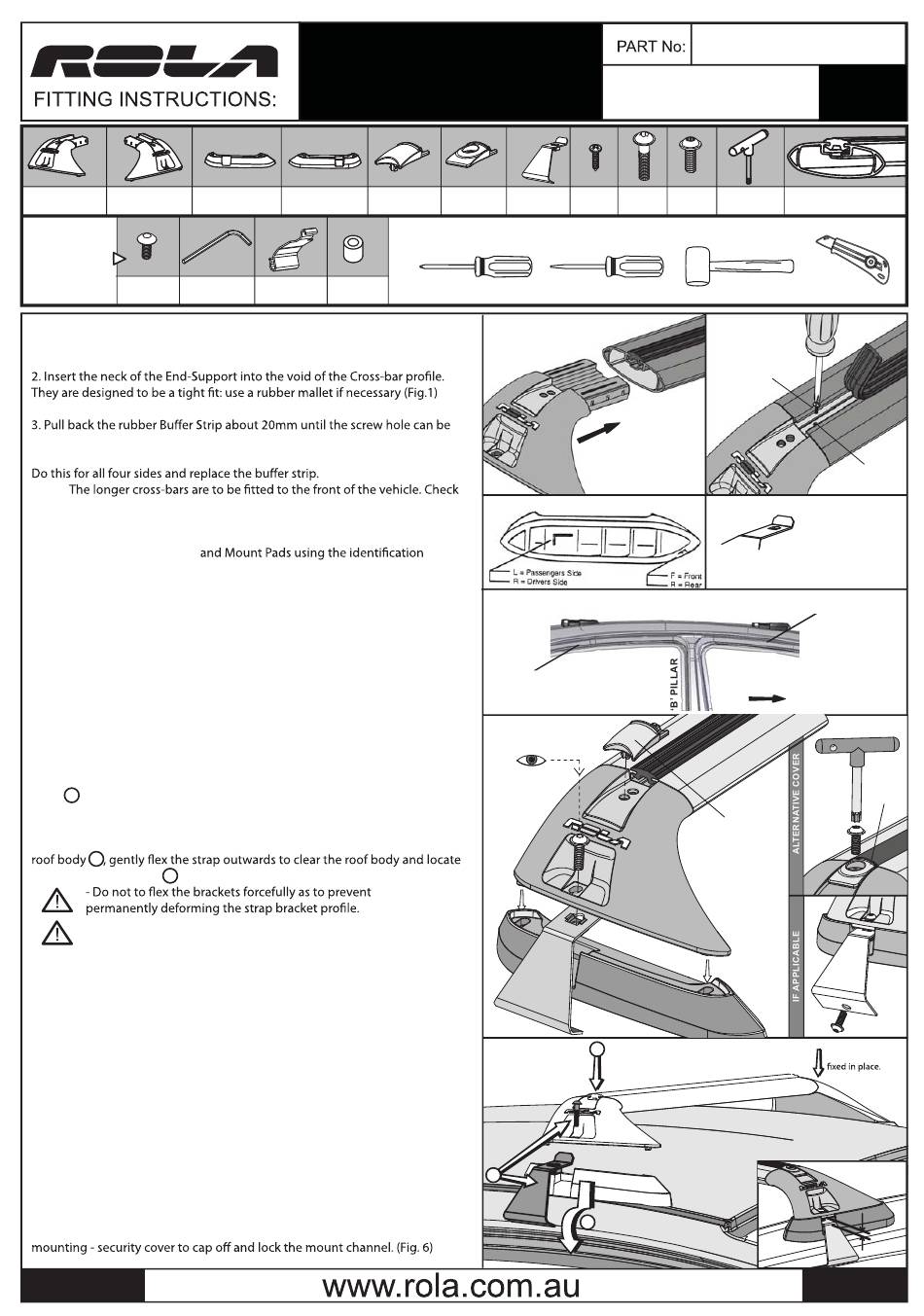

Rola HOLDEN RMX Series Instructions

x2 x2
END SUPPORT END SUPPORT
(RIGHT) (LEFT)
SOME FITMENTS
MAY ALSO
FEATURE THE
x4
FOLLOWING
COMPONENTS:
ANCHOR POINT
ALLEN KEY
BOLT
ASSEMBLY OF CROSS-BARS
1. Ensure the roof is clean, free from dust and grease.
accessed.(Fig. 2) Using a Phillips Head Screwdriver, fasten the screw through
the cross-bar and into the End Support.
NOTE:
labelling on the underside of the cross-bar.
FITTING CROSS-BARS TO VEHICLE
4. Identify your Strap Brackets
markings on them (if applicable) - refer to Fig 3 & Fig. 4
Position your mount pads on the roof over the anchor point holes (Fig 4a.)
Place the Cross-bar assemblies (Front & Rear) in their respective positions onto
the pads.
5. Next, open all 4 vehicle doors and leave them ajar whilst mounting and
fastening the strap brackets.
Ensuring the strap brackets correspond with their position on the vehicle,
proceed to fasten the Front Right Strap brackets through the End Support
using the security bolt provided. (Fig. 5) The Strap Bracket should intimately
cup around the vehicle roof body in the door under-hang area.
6. Go around to the left side of the car and lift up the Cross-bar Assy away from
the Mount Pad and roof body of the car. (Refer to Fig. 8)
Next, attach the Strap Bracket into the End Support using the security bolt
1
- whilst still holding the Cross-bar Assy away from the roof.
7. As you bring the Cross-bar Assy and connected strap down onto the vehicle
2
in its intended position - cupping the door underhang.
3
- Please be careful as not to stratch/damage the paint when
installing the strap brackets.
8. Insert the anchor bolt through the strap and tighten in the anchor
point hole (Fig. 7).
9. Tighten the Strap Brackets via the Security Bolts whilst pushing the straps
hard up against the vehicle body. Alternate sides whilst tightening for even
retention across both sides.
10. Proceed to follow steps 5 to 8 when mounting the Rear Cross-bar Assy.
11. You are now ready to mount your "Accessories" set onto the cross-bars
using the Global Mount Channel. Once installed, insert the 'Global Channel'
Covers into the End Supports.
Note: You have a choice of 2 - (a) quick access snap-on cover or (b) long term
Issue B

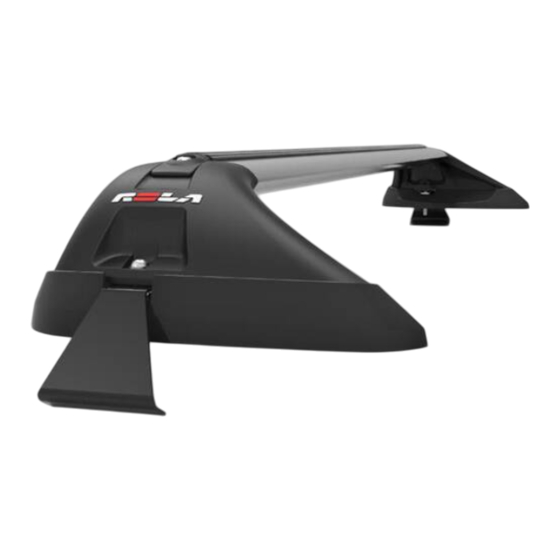

RMX Series Roof Racks
Commodore Sedan ZB 10/17 ON
REPRESENTATIVE REPRESENTATIVE
ONLY ONLY
x2 x2
MOUNT PAD MOUNT PAD
(RIGHT) (LEFT)
REPRESENTATIVE
ONLY
x1
x4 x4
BOTTOM STRAP
BOLT COVER
BRACKET
HOLDEN
REPRESENTATIVE
ONLY
x4 x4 x4
SNAP-ON SECURITY STRAP
COVER COVER BRACKET
Please Note: You will require the following tools
Phillips Head Screwdriver
F g i 1 .
Fig. 3a - IF APPLICABLE
Fig 4a.
Anchor
point
Fig. 5
GENERIC
STRAP FOR
REFERENCE
ONLY
Fig. 8
ATTACH
STRAP
1
CARRYING CAPACITY
x4 x4 x4
SCREW SECURITY SECURITY ASSEMBLY
BOLT BOLT
Flat Head Screwdriver Rubber Mallet
F g i 2 .
Fig. 3b
All straps are the same
Fig 3b.
Quick Access
Snap-on Cover
PUSH ASSEMBLY
2
DOWNWARDS
FLEX STRAP
3
AROUND DOOR RETURN
RMX441
50 kg
x2
x1
CROSS-BAR ASSEMBLY
KEY
Safety Knife
Screw
Screw hole
Anchor
point
Front
Fig. 6
Security
Cover
GENERIC
STRAP FOR
REFERENCE
ONLY
Fig. 7
This side is already
Fig. 9
page 1 of 2
