Please read all instructions carefully before assembly, installation and/or use of this product.

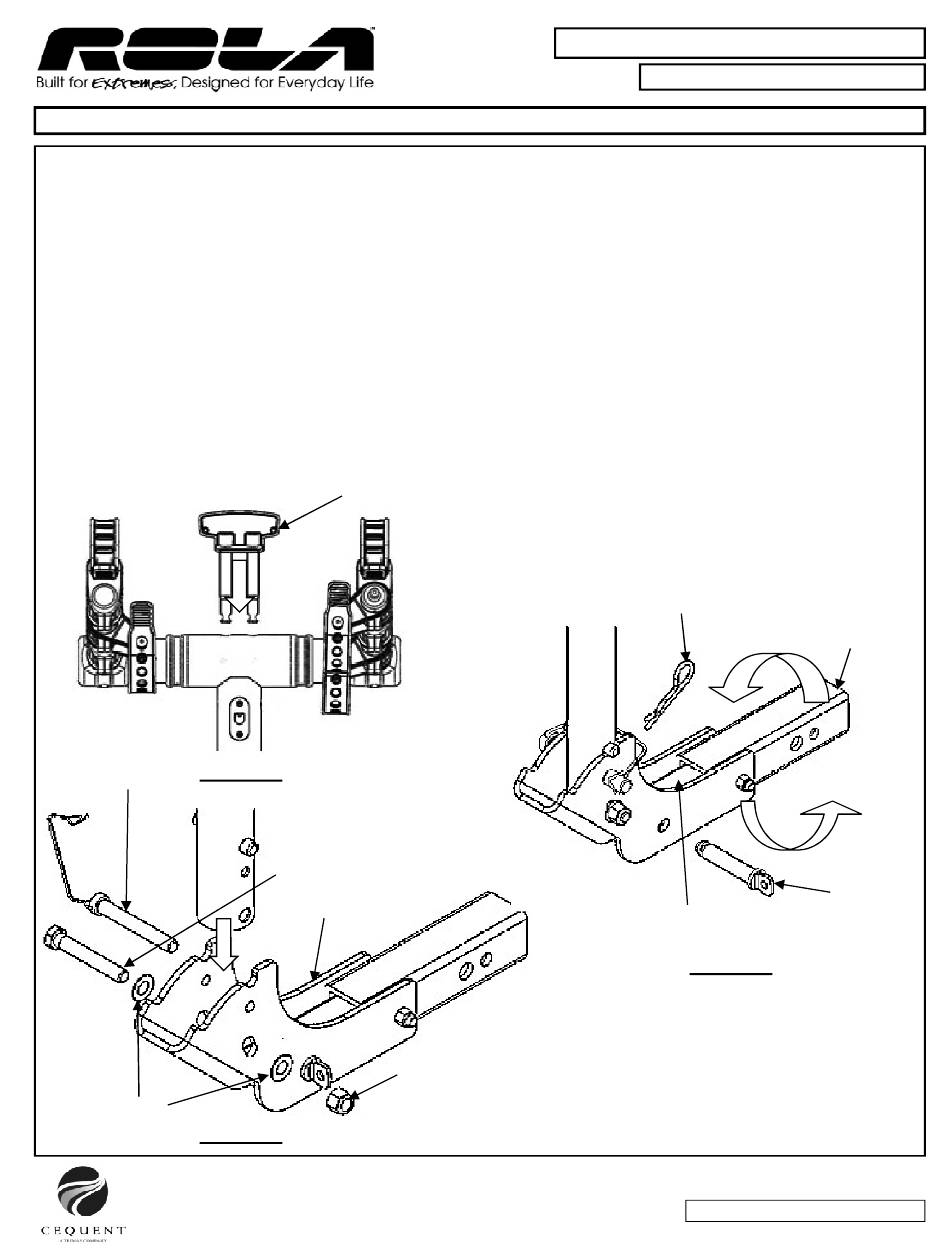

ASSEMBLY INSTRUCTIONS
To attach Main Support tube to collar bracket:
1. Use key to unlock the lock on Collar Bracket.
2. Remove handle mechanism, and rotate bike Support Arms into the UP position. Re-insert the handle mechanism.
Push handle all the way down. (see Diagram 1).
3. Attach Main Support tube to Collar Bracket in orientation shown (see Diagram 2). Line up the hole near end of main
support tube with the slotted hole in collar bracket and install one (1) ½" x 3-1/4" lg. hex bolt, two (2) nylon flat
washers, and locknut as shown. Tighten locknut until it is snug against the flat washers.
4. Lock Collar Bracket to Main Support tube so bike carrier is in the upright position.
Flip Shank Operation:
Your Rola (2 or 3) place bike carrier is pre-assembled with our patented flip shank design to be used with a 2" or 1
¼" receiver hitch.
Remove security pin and clip from carrier shank. Rotate shank to appropriate size for you hitch receiver. Replace security
pin and clip as shown in diagram 3 .
Diagram 1
Bail Pin
Nylon Washer
Diagram 2
Cequent Performance Products - Plymouth, MI
Technical Service: (888) 521-0510
Product Name:
Handle Mechanism
1/2" x 3-1/4" Hex Bolt
Collar Bracket
½" Locknut

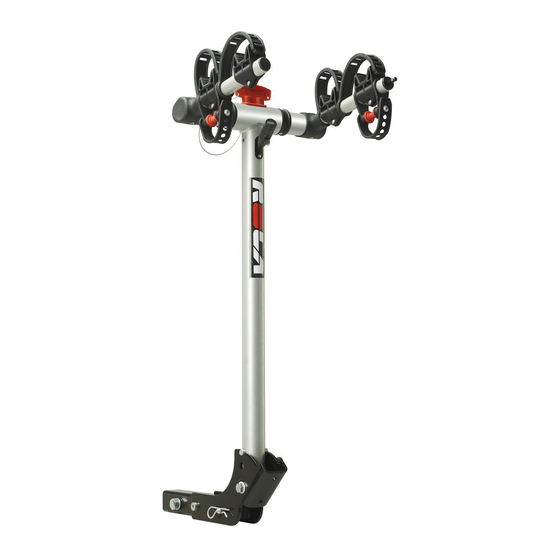

2 / 3 Place Bike Carrier - Folding
Product Code: 59400 / 59403
Clip
1-1/4" Shank
Diagram 3
www.rolaproducts.com
59400N Rev 59400N Rev H
2" Shank
Pull Security
Pin
4/29/13
