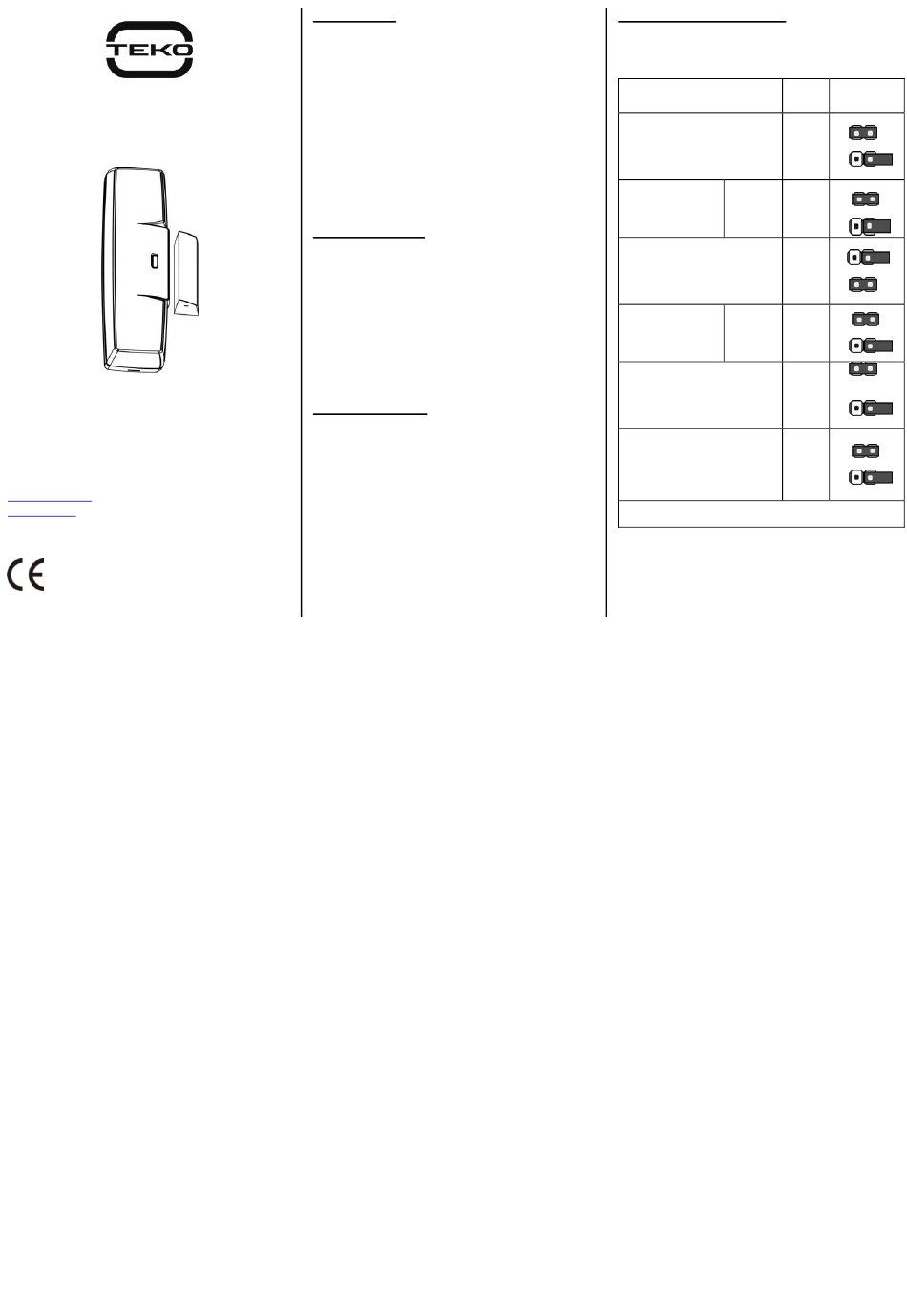

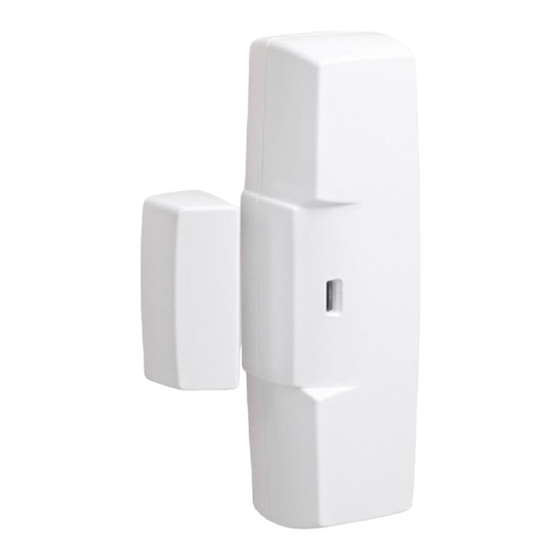

Astra-3321
Wireless door opening
magnetic contact
detector
User Guide
Manufacturer:
ZAO NTC TEKO
420108, Russia, Kazan,
Gafuri str., 71
Tel.:+7(843) 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
Rev. 3321-v4_5_instr_en
1 FUNCTION
The detector is intended for detecting opening or
movement of structures made of magnetically non-
conducting materials (aluminum, wooden, plastic,
etc.), forming alarm notification and transmitting alarm
signal to the Security Hub via radio.
The detector provides measurement and transmission
via radio the residual capacity of the battery in Mode 2
(see below).The transmission interval is 12 sec (jump-
er installed on Rtst plug) or 60 sec (jumper not in-
stalled on Rtst plug).
The detector provides connecting the Astra-361 water
leakage detector or any other hardwired detectors with
normally-opened contacts. Wire length not more than
3 m.
2 SPECIFICATION
Actuation distance, mm ............................ from 20 to 30
Recovery distance, mm ............................ from 13 to 23
Wireless coverage range, m .................................... 100
Operating frequency range, MHz ............................. 433
Power supply voltage, V ......................... from 2.3 to 3.0
Overall dimensions, mm .......................... 109 × 34 × 27
Operating Conditions
Temperature range, °С ....................... from - 20 to + 50
Relative air humidity, % ......................... up to 98 at + 40 °С
without moisture condensation
3 DELIVERY SET
Delivery set includes: steering magnet – 1 pc., jumpers
– 6 pcs. (installed), battery (CR123A, 3V) - 1 pc. (in-
stalled), screw – 4 pcs., mounting tape – 3 pcs. (in-
stalled), user guide – 1 pc.
4 MODES OF OPERATION
Setting operating mode of the detector and indica-
tion of notifications are possible within 10 minutes
after battery insertion!
Mode
Mode 2* (compatible with
Security Hub)
Rmod
Mode 1
12 sec.*
Test signal trans-
mission period**
60 sec.
Frequency 1* (433,42 MHz)
(compatible with Security Hub)
Frequency 3 (434,42 MHz)
Yes
External detectors
input control
No*
Control of external water leak
detector Astra-361.
Control of internal and
external magnetic contacts*
Internal magnetic contact
control *
Internal magnetic contact
not controlled
* Factory setting.
**For Mode 2 only
Plug Jumper
Rtst
Lit
Ext
Emod
Int
