teko Astra-361 Operating Manual

The present operation manual is intended for studying operat-
ing principle, correct usage, storage and maintenance of wire-
less water leak detector Astra-361ver. RF (hereinafter referred
to as "detector") (Fig. 1).
The manufacturer reserves the right to make alteration regarding
refinement of the product without prior notification. All changes
will be imported into new edition of the operation manual.
1 Function
1.1
The detector is designed for detection
of water leak events (except for distilled wa-
ter), forming an "Alarm" notification and
sending it to receiver Astra-RVA (hereinaf-
ter "RVA") of wireless intrusion and fire de-
tection and alarming system Observer I.
1.2
The detector supports three operating
frequencies.
1.3
The detector is powered by a battery of
CR2450 type (voltage – 3.0 V) or batteries
of comparable characteristics and design.
2 Specifications
Technical Parameters of Radio channel
Operating frequency, MHz ................................................ 433.42
Wireless coverage range, m*, min ......................................... 300
Emission power, mWt, max ..................................................... 10
General Technical Parameters
Current consumption, mA, max:
- transmitter OFF ............................................................... 0.015
- transmitter ON ...................................................................... 25
Power supply voltage, V ..................................... from 2.25 to 3.0
Overall dimensions, mm, max ................................. 64  46  22
Weight, kg, max ................................................................... 0.05
Average battery service life, years, min .................................... 2
Operating Conditions
Temperature range, °С ......................................... from +5 to +50
Relative air humidity, % .................................. up to 93 at + 40 °С
__________________________________
* Along the line-of-sight. Wireless coverage range is largely dependent
on the design features of construction, the installation location, the in-
terference situation.
3 Delivery Set
Wireless water leak detector Astra-361ver. RF ................. 1 pcs.
Battery ............................................................................... 1 pcs.
Operating manual .......................................................... ..1 copy.
Rev. 361rk-v1_0_en
Astra-361 Version RF
Wireless Water Leak Detector
Operating Manual

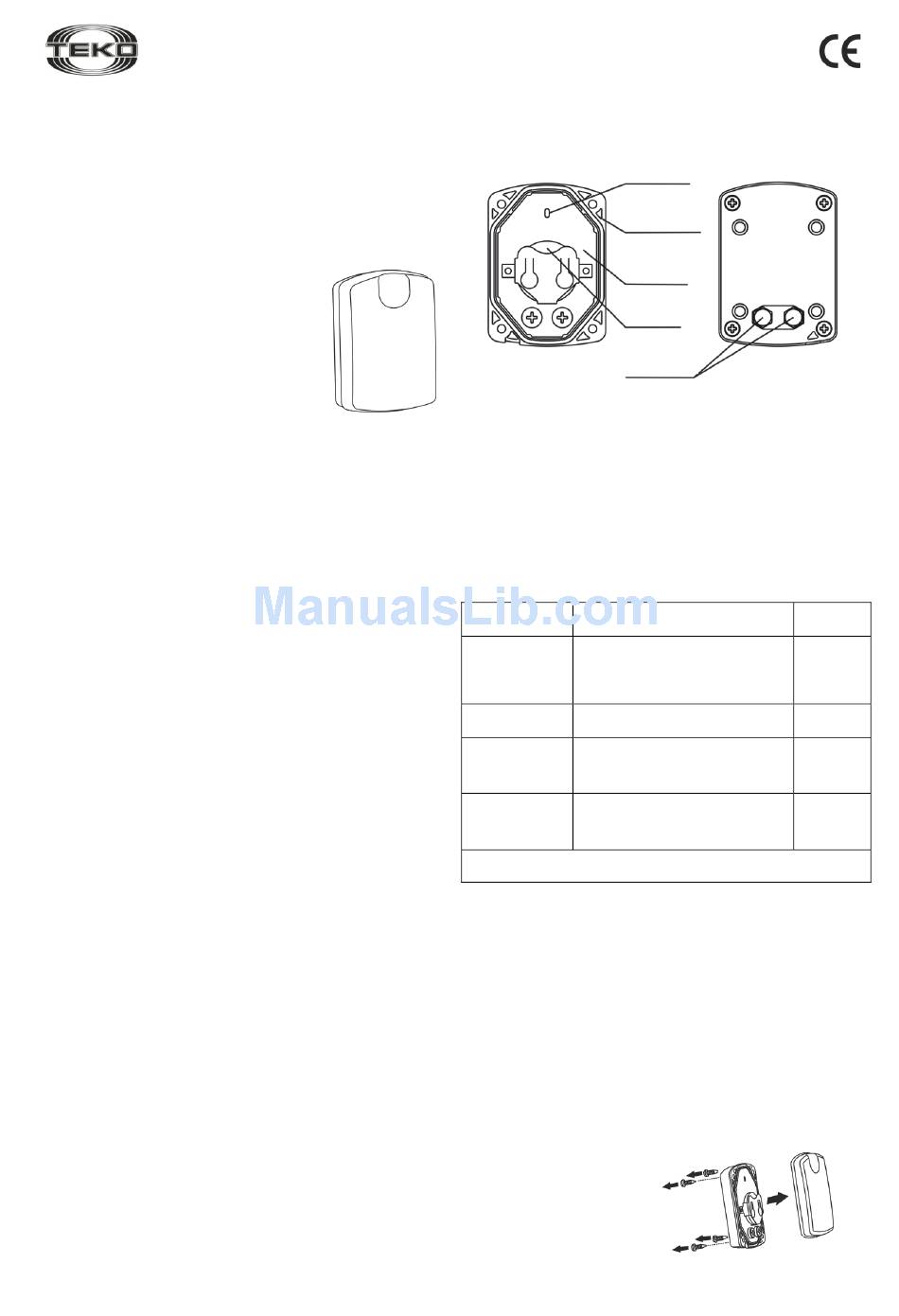

4 Structure
Structurally, the detector is designed as a unit consisting of a
Fig. 1
base and a removable cover (Fig. 2). The cover is attached to
the base with screws.
The unit houses a printed circuit board with radio elements.
An indicator mounted on the circuit board provides for detector
operability supervision.
Contact pads are located on the detector body.
5
Table 1 – Notifications processed by indicator and RVA
Notification
Starting detec-
tor to standby
mode
Norm
no moisture condensation Alarm
Low supply
voltage
"+" – the notification is given,
given
Note – When "Low supply voltage" notification appears, re-
place the battery within a week.
6
6.1
operation keep detector unpacked under supposed operation
conditions for at least 4 hours.
WARNING!
cies of detector and receiver
6.2
Detector is registered at the moment of powering up.
Step-1
Unscrew the screws and
remove the detector cover
Cover removed
Indicator
Base
Printed
circuit board
Battery
Contact
pads
Fig. 2
Information Capacity
Indicator
type
Lights once for 0.5 s
after power up
Not lit
Lights once for 0.2 s when ex-
ternal contact are closed (short-
ed) by water
Blinks 3 times every 25 s when
the battery charge drops below
2.5 V
- 0.1
Pre-starting Procedure
After transportation in conditions differing from those of
Check compliance of operating frequen-
Registering the detector in the receiver memory
RVA
-
+
+
+
"– " – the notification is not
.
