teko Astra-361 User Instruction

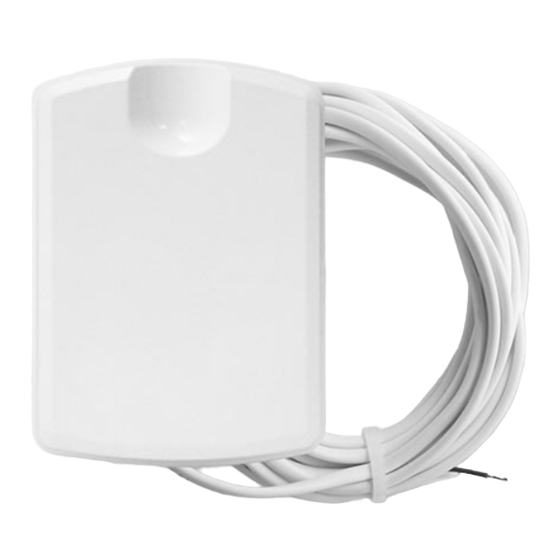

Astra-361
Water Leak Detector
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 361-v1_0_instr_EN
1 FUNCTION
The detector is designed for detection of water
leak events and sending "Alarm" notification via
two-wire alarm loop (signaling zone) to control
panel or wireless detectors Astra-3321 and
Astra-Z-3345 operating in transmitter mode
(hereinafter "TRA").
Detector is not designed for distilled water lea-
kage detection.
2 SPECIFICATIONS
. ............from 2,5 to 30
Power supply voltage, V
Current consumption, mA, max:
- in stand-by mode with
supply voltage of 2.5 V .............................. 0,001
- in stand-by mode with
supply voltage of 15 V ............................... 0,003
- in stand-by mode with
supply voltage of 30 V ................................. 0,01
- at "Alarm" notification issue ........................... 5
..................... 45×13×13
Overall dimensions, mm
Operating Conditions
Temperature range, °С ............... from 0 to + 50
3 DELIVERY SET
Delivery set contains holders and fasteners
(dowel – 2 pcs., screw – 2 pcs.).
4 INSTALLATION LOCATION
Detector is located on the floor in supposed
place of water accumulation in case of

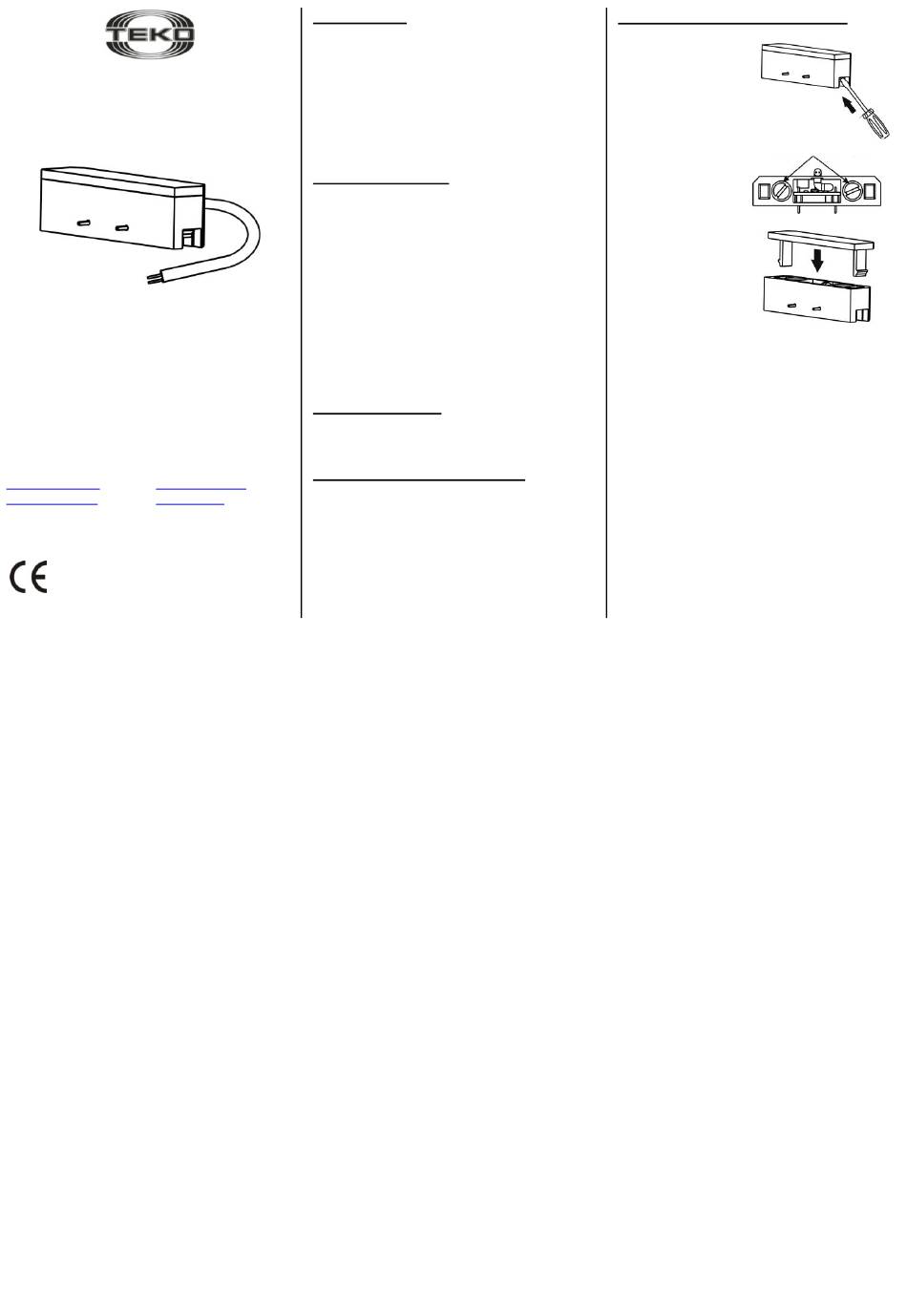

5 INSTALLATION PROCEDURE
1) Remove cover
2) Make markings
on the selected
place of installa-
tion using detector
body
3) Replace cover
4) Perform wiring (see par.6)
5) Make operability test (see par. 7)
leakage.
Mounting holes
