teko Astra-9 User Instruction

Astra-9
Optic-Electronic PIR Motion
Detector
(Volumetric Lens)
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 9-v1_0_instr_EN
1 FUNCTION
Detector is intended to detect unauthorized
access into closed protected area, and to
generate an alarm notification by opening of
signaling relay contacts.

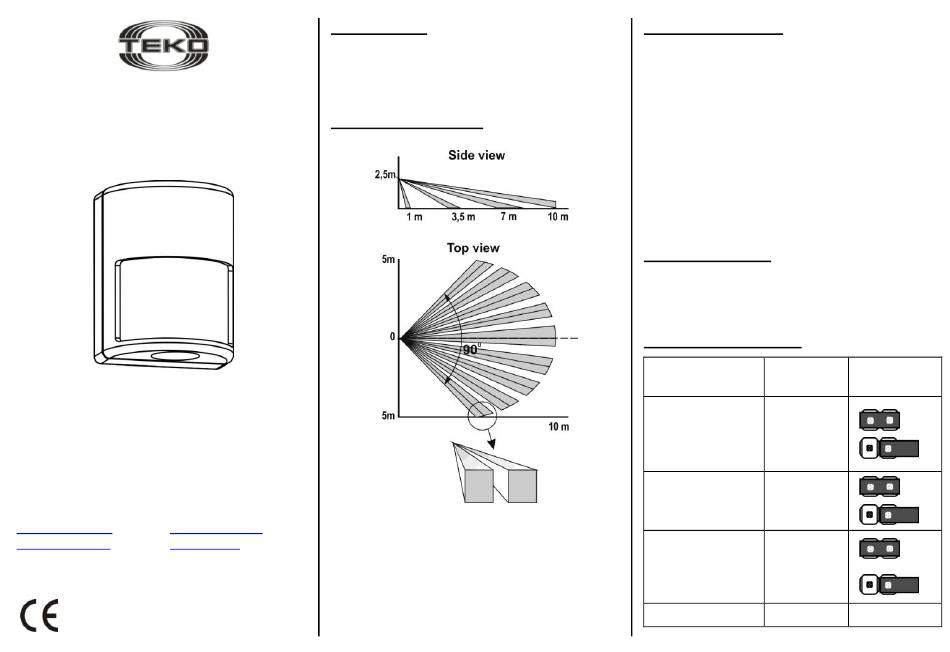

2 DETECTION ZONE
The detection zone size can be changed by
changing position of the detector`s
3 SPECIFICATIONS
Intrusion detection range, m, min:
- in the lower PCB position ............................... 10
- in the upper PCB position ................................. 7
Range of detected
moving speed, m/s
Power supply voltage, V ............. from 8 up to 15
Current consumption, mA, max ..................... 15
Overall dimensions, mm .................76 × 58 × 46
Operating Conditions
Temperature range, °С........ from - 30 up to +50
Relative air humidity, % .......... up to 95 at +35 °С
4 DELIVERY SET
Delivery set contains holders and fasteners
(dowel – 2 pcs., screw – 2 pcs., bracket – 1
pcs.), sealing material – 1 pcs.
5 OPERATING MODE
Operating
mode
High
detectability
Normal
detectability
Indication ON
Indication OFF
"Alarm memory"
PCB.
ON
"Alarm memory"
OFF
TEST-pass
................. from 0,3 up to 3,0
Without moisture condensation
Plug Jumper
name position
Sens
Ind
Mem
Ind See par. 9
