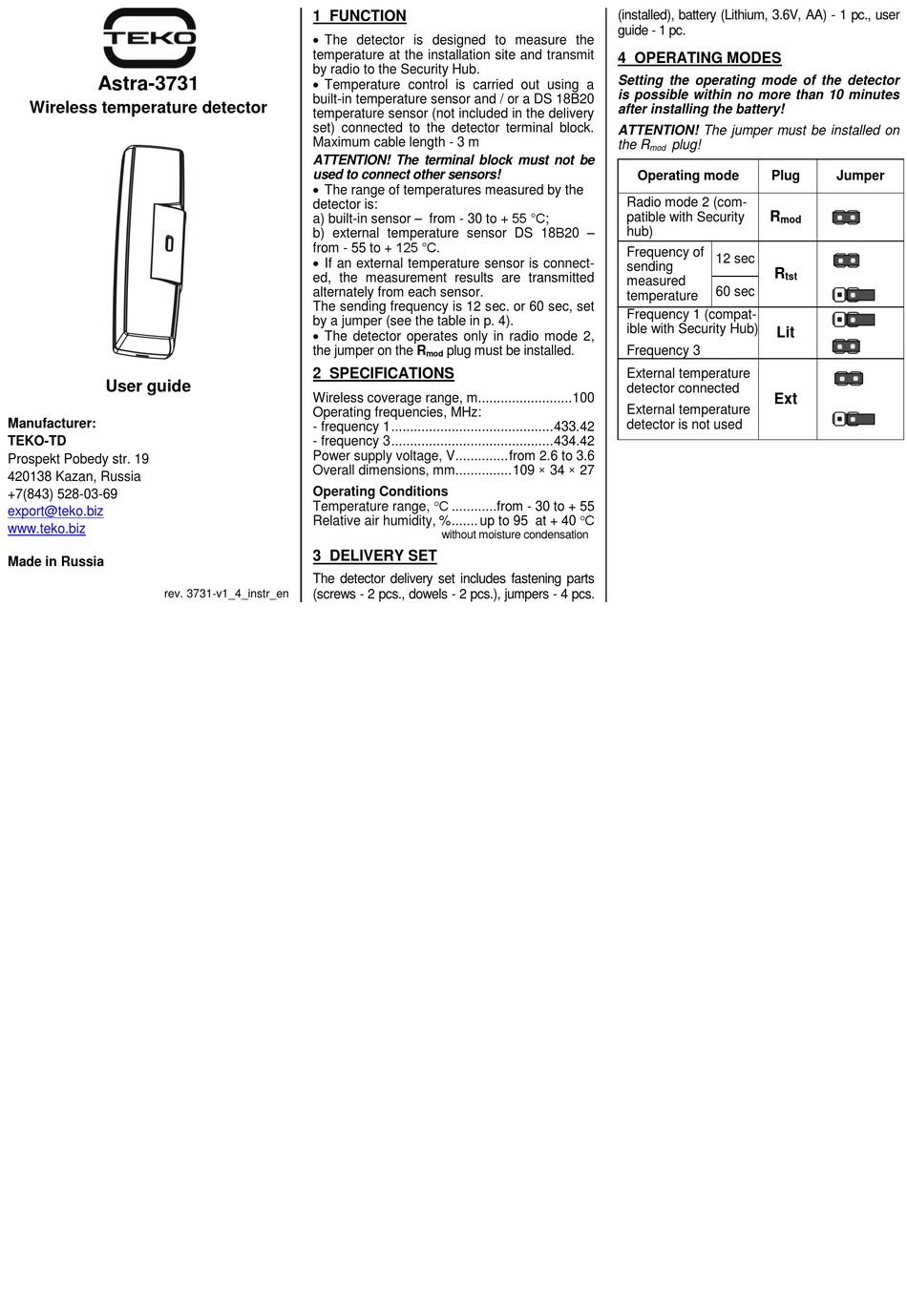

teko Astra-3731 User Manual

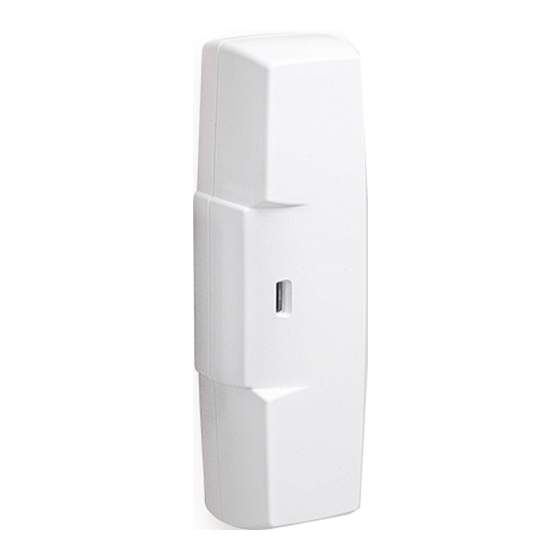

Astra-3731
Wireless temperature detector
User guide
Manufacturer:
TEKO-TD
Prospekt Pobedy str. 19
420138 Kazan, Russia
+7(843) 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
rev. 3731-v1_4_instr_en
1 FUNCTION
 The detector is designed to measure the
temperature at the installation site and transmit
by radio to the Security Hub.
 Temperature control is carried out using a
built-in temperature sensor and / or a DS 18B20
temperature sensor (not included in the delivery
set) connected to the detector terminal block.
Maximum cable length - 3 m
ATTENTION! The terminal block must not be
used to connect other sensors!
 The range of temperatures measured by the
detector is:
a) built-in sensor – from - 30 to + 55 °С;
b) external temperature sensor DS 18В20 –
from - 55 to + 125 °С.
 If an external temperature sensor is connect-
ed, the measurement results are transmitted
alternately from each sensor.
The sending frequency is 12 sec. or 60 sec, set
by a jumper (see the table in p. 4).
 The detector operates only in radio mode 2,
the jumper on the R plug must be installed.
mod
2 SPECIFICATIONS
Wireless coverage range, m ......................... 100
Operating frequencies, MHz:
- frequency 1 ........................................... 433.42
- frequency 3 ........................................... 434.42
Power supply voltage, V .............. from 2.6 to 3.6
............... 109 × 34 × 27
Overall dimensions, mm
Operating Conditions
Temperature range, °С
............from - 30 to + 55
....... up to 95 at + 40 °С
Relative air humidity, %
without moisture condensation
3 DELIVERY SET
The detector delivery set includes fastening parts
(screws - 2 pcs., dowels - 2 pcs.), jumpers - 4 pcs.
(installed), battery (Lithium, 3.6V, AA) - 1 pc., user
guide - 1 pc.
4 OPERATING MODES
Setting the operating mode of the detector
is possible within no more than 10 minutes
after installing the battery!
ATTENTION! The jumper must be installed on
the R plug!
mod
Operating mode Plug
Radio mode 2 (com-
R
patible with Security
mod
hub)
Frequency of
12 sec
sending
R
tst
measured
60 sec
temperature
Frequency 1 (compat-
ible with Security Hub)
Lit
Frequency 3
External temperature
detector connected
Ext
External temperature
detector is not used
Jumper
