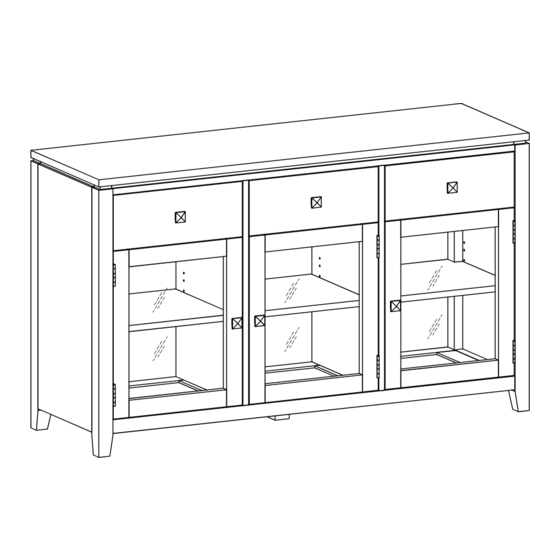

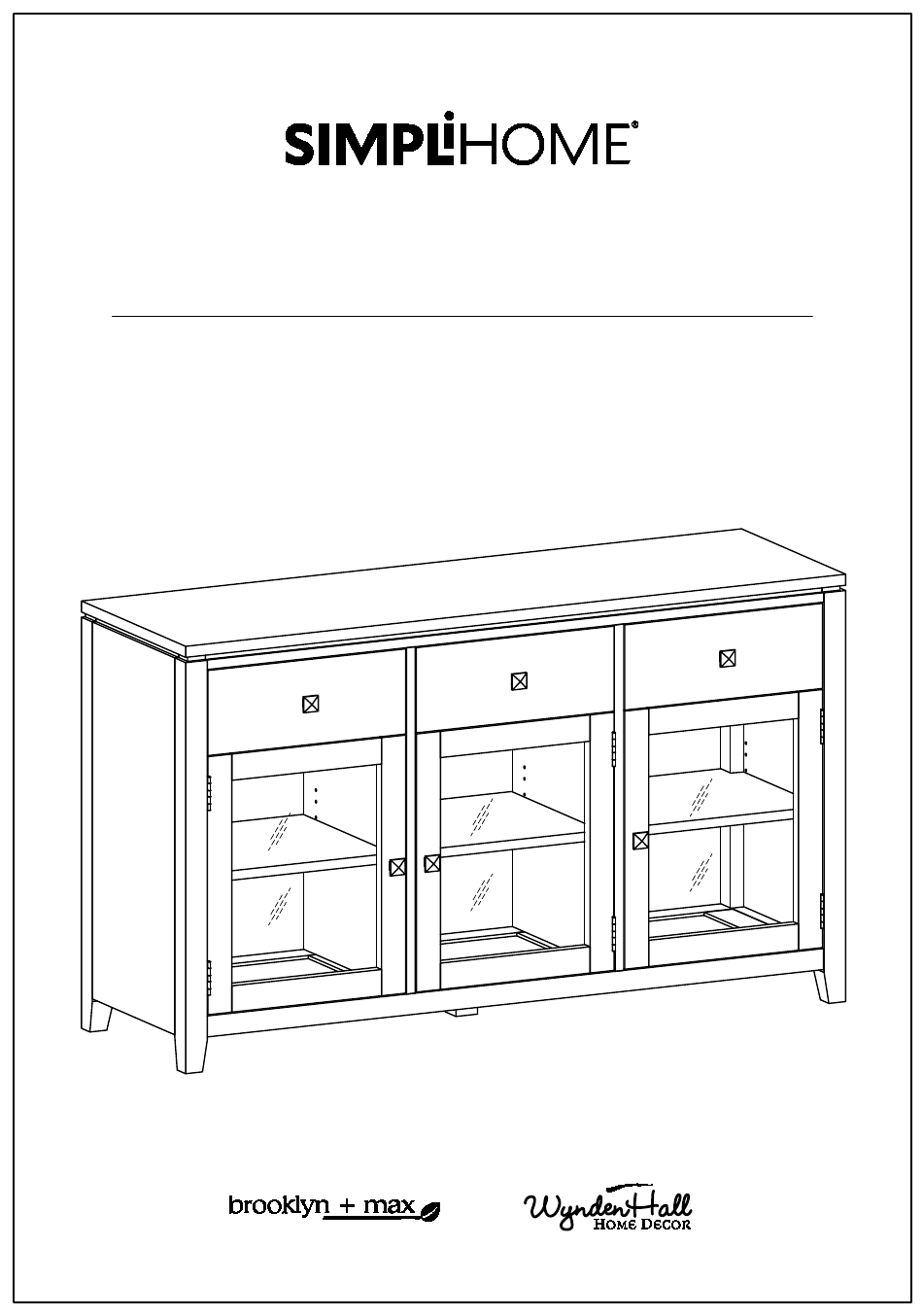

- Page 1 Cosmopolitan / City / Essex Sideboard Buffet Model # AXCCOS11-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Frame
Pre-Assembly Information Model # AXCCOS11-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 LEFT SHELF RIGHT SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCCOS11-WH Part Description Warning Label DOOR LEFT BACK PANEL RIGHT BACK PANEL QTY 3 QTY 1 QTY 1 MIDDLE BACK PANEL BOTTOM SUPPORT LEG DRAWER FRONT QTY 1 QTY 1 QTY 3 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 3 QTY 3...
- Page 9 Pre-Assembly Information Model # AXCCOS11-WH Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm CAM LOCK ALLEN KEY QTY 30 QTY 18 SETS QTY 1 HANDLE PHILLIPS SCREW ROUND HEAD SHELF SUPPORT M4 x 25mm M4 X 15mm QTY 18 QTY 6 QTY 26...
- Page 10 Components - Key Diagram Model # AXCCOS11-WH...
- Page 11 Assembly Model # AXCCOS11-WH Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on Drawer Front J . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 12 Assembly Model # AXCCOS11-WH Step 3 Step 4 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front J . 2. Repeat Step 1-4 for the other drawers.
- Page 13 Assembly Model # AXCCOS11-WH Step 5 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Wood Dowels 11 into guide holes on each each Side BL , BR . 4.
- Page 14 Assembly Model # AXCCOS11-WH Step 6 1. Insert four Wood Dowels 11 into guide holes on Bottom Frame C . 2. Insert two Wood Dowels 11 into guide holes on each Divider DL , DR . 3. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 15 Assembly Model # AXCCOS11-WH Step 7 1. Align Wood Dowels with guide holes and attach Bottom Frame C to Divider DL , DR . 2. Use three Allen Key Screws 1 to attach Bottom Frame C through guide holes from Bottom Frame C to pre-drilled holes of each Divider DL , DR . 3.
- Page 16 Assembly Model # AXCCOS11-WH Step 8 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame C .
- Page 17 Assembly Model # AXCCOS11-WH Step 9 1. Align Wood Dowels with guide holes on Top A and attach Top A . 2. Use three Allen Screws 1 to attach each parts BL , BR , DL , DR through guide holes to Top A . 3.
- Page 18 Assembly Model # AXCCOS11-WH Step 10 1. Attach Bottom Support Leg I align with pre-drilled holes at back of Bottom Frame C . Use Phillips Screwdriver to tighten four Phillips Screws 10 .
- Page 19 Assembly Model # AXCCOS11-WH Note: Step 11 Warning Label 1. Use Phillips Screws Round Head 5 to attach Back Panels HL , HR , H through guide holes to the back of Sideboard. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 20 Assembly Model # AXCCOS11-WH Step 12...
- Page 21 Assembly Model # AXCCOS11-WH Step 13 First Step Last Step ( after adjust the door )
- Page 22 Assembly Model # AXCCOS11-WH Step 14 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Shelf F , EL , ER in desired location . 2. Two Shelf Supports 6 may be used on back top of each Shelf F , EL , ER as a tipping restraint.
- Page 23 Assembly Model # AXCCOS11-WH Step 15 1. Insert assembled drawers into glides on assembled Sideboard.
- Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
