Summary of Contents for Hilti TE 60-AVR
- Page 1 TE 60-AVR TE 60-ATC/AVR English...
- Page 6 TE 60-AVR TE 60-ATC/AVR Original operating instructions ........
- Page 7 Original operating instructions Information about the operating instructions About these operating instructions • Read these operating instructions before the product is used or operated for the first time. This is a prerequisite for safe, trouble-free handling and use of the product. •...
- Page 8 Revolutions per minute Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 9 ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety ▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
- Page 10 Service ▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Hammer safety warnings Safety instructions for all operations ▶ Wear ear protectors. Exposure to noise can cause hearing loss. ▶...

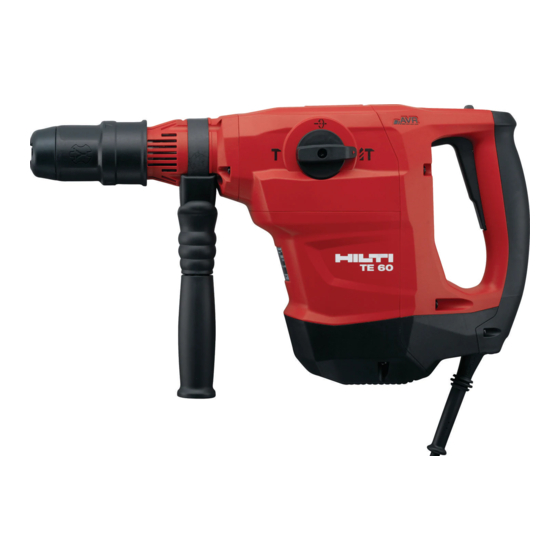

- Page 11 Description Overview of the product Chuck Depth gauge Function selector switch Control switch Supply cord & Side handle Lockbutton for continuous operation Service indicator Reduced-power indicator § Power reduction button (50% power) Version with detachable supply cord Lockbutton Connector on electric tool Supply cord with keyed, releasable plug con- nector Intended use...
-
Page 12: Technical Data
Undercut anchors The product is suitable for setting undercut anchors. Use only suitable setting tools. Detailed information on this topic can be obtained at your local Hilti Center. The product is equipped with the ATC (Active Torque Control) quick-acting electronic cut-out. -
Page 13: Operation
TE 60AVR TE 60-ATC/AVR Rated power input 1,350 W 1,350 W Rated current input 7.2 A 7.2 A Weight in accordance with EPTA proce- 6.8 kg 7.8 kg dure 01/2003 Single impact energy in accordance with 7.8 J 7.8 J EPTA procedure 05 12 mm …... - Page 14 1. Apply a little grease to the connection end of the accessory tool. ▶ Use only genuine Hilti grease. Using the wrong grease can result in damage to the product. 2. Push the accessory tool into the tool holder as far as it will go (until it engages).
-
Page 15: Care And Maintenance
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group. -
Page 16: Transport And Storage
Check electric tools or appliances for damage after long periods of transport or storage. Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken No hammering action. -
Page 17: Manufacturer's Warranty
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. - Page 18 English 2134960 *2134960*...
- Page 20 *2134960* 2134960 Hilti = registered trademark of Hilti Corp., Schaan Pos. 2 | 20230412...
