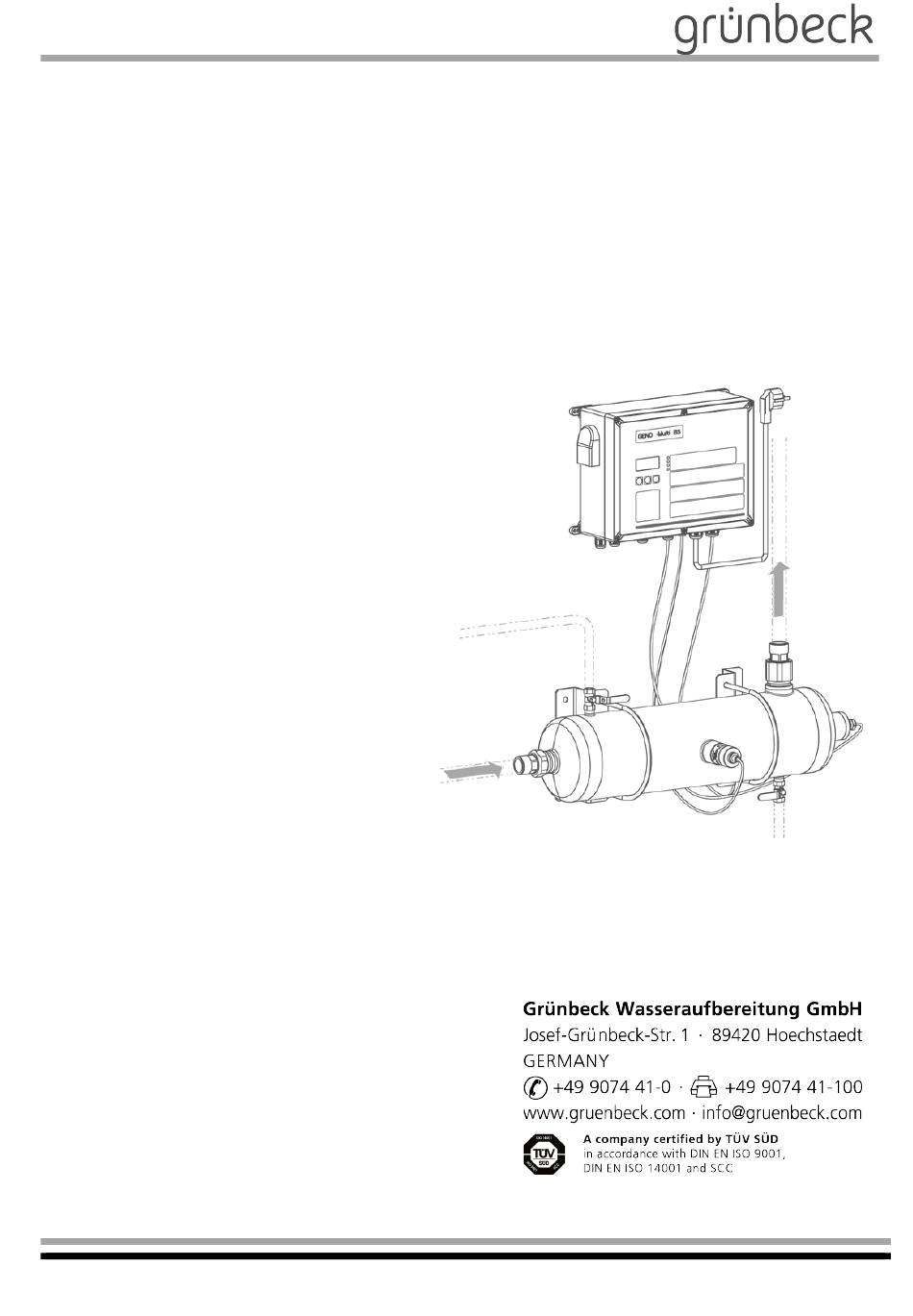

- Page 1 Operation manual Flushing set for GENO-UV systems (Residential Applications) Edition May 2019 Order no 520 950-inter_074...
-
Page 2: Table Of Contents
4 | Scope of supply ......................... 12 5 | Cleaning agent ........................12 D Installation and operation ................13 1 | Installation ......................... 13 2 | Flushing the GENO-UV system (see fig. D-1) ..............14 Order no. 520 950-inter_074 Edited by:-mal-mrie G:\BA-520950-INTER_074_SPÜLSET-UV.DOCX... - Page 3 Flushing set for GENO-UV systems (Residential Applications) Publisher’s information All rights reserved. Copyright by Grünbeck Wasseraufbereitung GmbH Printed in Germany Effective with the date shown on the cover sheet. – We reserve the right to modification, especially with regard to technical progress –...
- Page 4 Flushing set for GENO-UV systems (Residential Applications) EU Declaration of Conformity We hereby declare that the system designated below meets the safety and health requirements of the applicable European guidelines in terms of its design, construction and manufacture. Manufacturer: Grünbeck Wasseraufbereitung GmbH Josef-Grünbeck-Straße 1...
-
Page 5: A General Information
Flushing set for GENO-UV systems (Residential Applications) General information 1 | Preface Thank you for opting for a Grünbeck product. Backed by decades of experience in the area of water treatment, we provide solutions for all processes. Drinking water is classified as food and requires particular care. -
Page 6: How To Use The Operation Manual
Flushing set for GENO-UV systems (Residential Applications) 2 | How to use the operation manual This operation manual is designed for the operators of our sys- tems. It is divided into several chapters which are listed in alpha- betic order in the table of contents on page 2. In order to find the information you are looking for please refer to page 2 for the cor- responding chapter. -
Page 7: Operating Personnel
Flushing set for GENO-UV systems (Residential Applications) 3.2 Operating Only persons who have read and understood this operation manual personnel are permitted to work with the system. The safety guidelines must be strictly adhered to. 3.3 Designated The system may only be used for the purpose outlined in the product application description (chapter C). -
Page 8: Shipping And Storage
Flushing set for GENO-UV systems (Residential Applications) 4 | Shipping and storage Attention! The system may be damaged by frost or high tempera- tures. In order to avoid damage of this kind: Protect from frost during shipping and storage! Do not install or store system next to objects which radiate a lot of heat. -
Page 9: B Basic Informations
This water contains substances such as calcium or manganese which are indispensable for the hu- man organism. However, in the GENO-UV system, they may cause deposits which have an adverse effect on the performance of the sys- tem. -
Page 10: C Product Discription
(visible alarm signal), i. e. the system should be cleaned. If your GENO-UV system features a UV sensor (types 40 S / 60 S), the radiation intensity signal visually indicates the necessity to clean the system as soon as the value is 10 % above the lower limit value. -
Page 11: Technical Specifications
3 | Technical specifications The flushing set is used to rinse (clean) the GENO-UV systems (res- idential application). All system data is summarized in table C 1. The information given relates to the standard version of the flushing set. -
Page 12: Scope Of Supply
Flushing set for GENO-UV systems (Residential Applications) 4 | Scope of supply • 1 Plastic tank • 1 Centrifugal pump • 2 Pressure hose clips • 1 Hose, 4m long Note: The hose has to be divided once according to the local condi- tions. -
Page 13: D Installation And Operation
Flushing set for GENO-UV systems (Residential Applications) Installation and operation 1 | Installation 1. Unpack all system components. 2. Check for completeness and perfect condition. 3. Divide hose once according to local conditions. 4. Insert one pressure hose clip into one hose segment each. -
Page 14: Flushing The Geno-Uv System (See Fig. D-1)
Flushing set for GENO-UV systems (Residential Applications) 2 | Flushing the GENO-UV system (see fig. D-1) 1. Switch off the GENO-UV system (item 5) via the main switch. (see operating manual of system). 2. Close shut-off valves (items 2 and 8). - Page 15 DVGW 200 S 10. Insert mains plug of the pump’s mains cable (10 m) into the shock- proof socket. 11. Pump (circulate) the cleaning agent through the GENO-UV system for 30 - 60 minutes. Note: The duration of the cleaning depends on the degree of pollution.
