HIM-18037
Document No.
CABLINE
1
S20033
0
S19022
Rev.
ECN
Confidential C

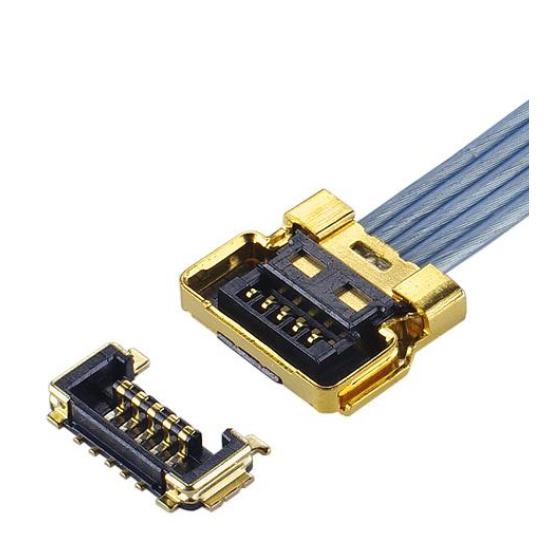

-UY Connector (Wire Type Plug)
®
Part No.20857-0**T-0*,20854-0**E-0*
Instruction Manual
January 20, 2020
January 9, 2019
Date
Y. Fukumoto
Y. Imaji
Prepared by
I-PEX Inc.
1 / 7
T.Yamauchi
K. Yufu
Checked by
QKE-DFFDE09-03 REV.8
Y.Shimada
K. Yotsutani
Approved by
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for I-PEX CABLINE-UY 20857-0 T-0 Series
Summary of Contents for I-PEX CABLINE-UY 20857-0 T-0 Series
- Page 1 ® Part No.20857-0**T-0*,20854-0**E-0* Instruction Manual S20033 January 20, 2020 Y. Fukumoto T.Yamauchi Y.Shimada S19022 January 9, 2019 Y. Imaji K. Yufu K. Yotsutani Rev. Date Prepared by Checked by Approved by Confidential C I-PEX Inc. QKE-DFFDE09-03 REV.8 1 / 7...
- Page 2 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 弊社、CABLINE-UY Connector(Wire type)の取り扱いに際して、本コネクタを安全に御使用頂くことを目的とし コネクタの挿入・抜去の手順及び注意点を記述致します。 This manual explains the insertion & withdrawal methods and provides cautions to handle our CABLINE-UY connector (Wire type plug) properly and safely. 【コネクタ型番】 (Connector parts No.) CABLINE-UY PLUG: 20857-0**T-0* CABLINE-UY RECEPTACLE: 20854-0**E-0*...
- Page 3 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 【コネクタ挿入手順】 (Connector insertion manual) 1.手で直接嵌合する場合 (Procedures for mating by hands) ① ケーブル側コネクタの保持方法 (How to hold a cable connector) Fig. 3 のようにケーブル側コネクタのケーブルを持ちます。 Hold a cable end of the cable connector as shown in Fig. 3. ケーブル側コネクタ...
- Page 4 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 2.挿抜 JIG で嵌合する場合 （Procedures for mating by using Pushing and Pulling JIG） ① ケーブル側コネクタの保持方法 (How to hold a cable connector) Fig. 6-a のように挿抜 JIG をストッパーに当たるまでプラグと平行にスライドさせプラグコネクタ全体を抱えます。 As shown in Fig. 6-a, slide the pushing and pulling jig horizontally until the jig stops at the stopper of the plug.
- Page 5 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 注意事項 CAUTION ケーブル側コネクタと基板側コネクタの軸合わせの際は、コネクタ同士が軽く触れる程度に接触させ挿入荷重をかけないでください。 Fig. 7-b のように位置ズレした状態で挿入荷重を掛けるとコネクタ破損の原因となります。 The plug and the receptacle should lightly touch each other. Be careful for the insertion load. The insertion load may damage the connectors if the connectors were misaligned as shown in Fig.
- Page 6 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 Fig. 9-a のように挿入完了後は、挿抜 JIG を基板に対し平行に移動させ、JIG とプラグコネクタを完全に引き離した状態で 基板と垂直に引き上げてください。Fig. 9-ｂのように完全に引き離さず（赤矢印と緑矢印が交わる箇所）JIG を引き上げた場合、 嵌合外れ・半嵌合の原因となります。 To remove the jig from the connector, slide back the jig parallel to the test board as shown in Fig. 9-a. Make sure that the jig is completely away from the connector before pulling the jig vertically up.
- Page 7 Document No. CABLINE-UY Connector (Wire Type Plug) Instruction Manual HIM-18037 注意事項 CAUTION 冶具は必ず基板と垂直に引き上げてください。(Fig. 11) ” Pushing and Pulling JIG” must be raised vertically from the PCB surface. (Fig. 11) Allowed Prohibited Prohibited Pushing and Pulling JIG Fig. 11 【コネクタ取り扱いの注意】 (CAUTION IN CABLE CONNECTOR HANDLING) Fig.
