Features
• When combined with a VBOX 3i, the system
offers seamless integration between indoor
environments (using VIPS) and outdoor
environments (using GNSS).
• Centimetre level accuracy in areas off limits to
GNSS based systems.
• Small, rugged and low powered.
• Only one rover is required, featuring an integrated
VBOX IMU with Kalman filter to reduce noise and
errors in the data.
• Connects directly to a VBOX 3i data logger using
only one cable for simple configuration.

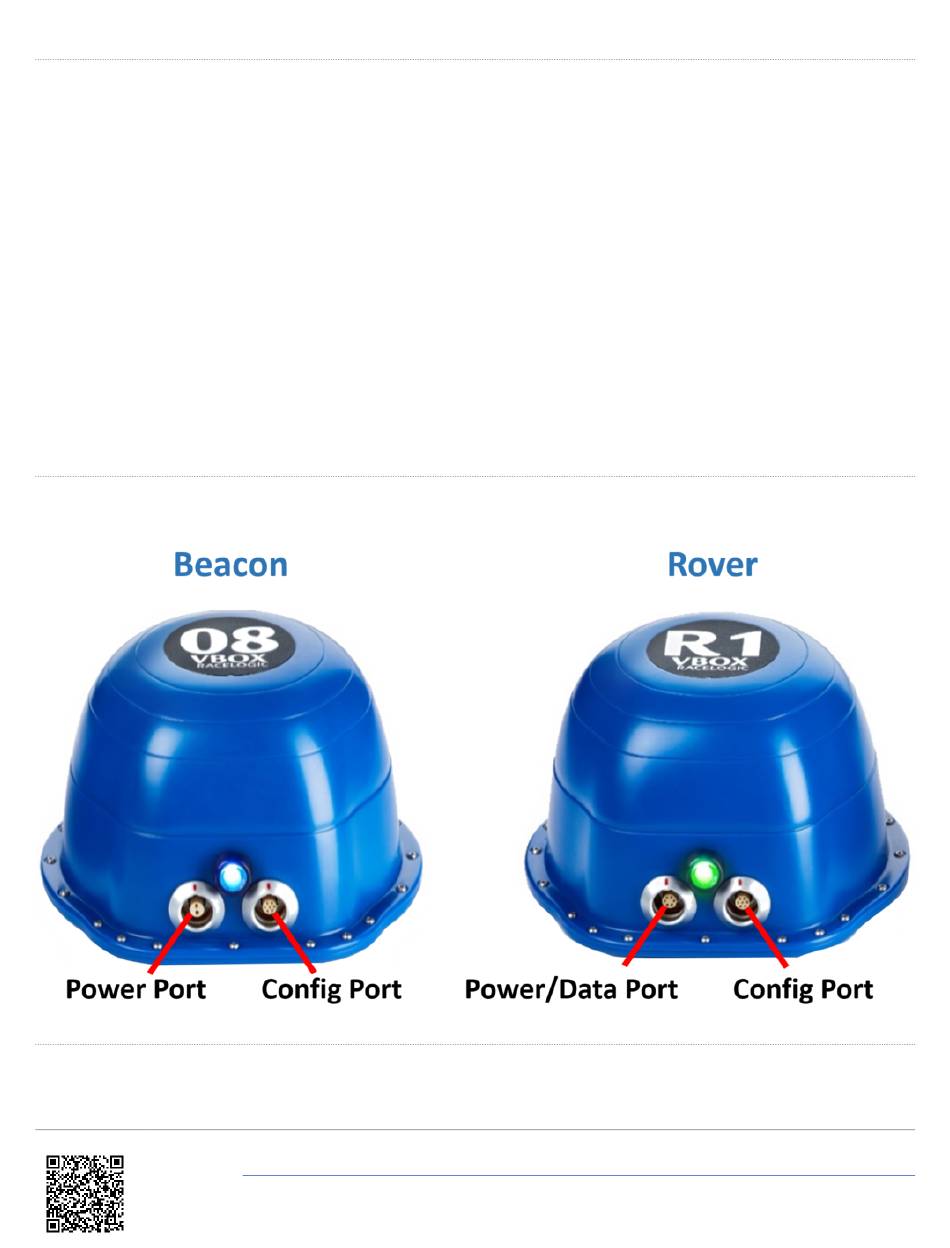

Connectors
LED Behaviour
The LED on the front of the Beacon and Rover units provides a visual status indication.
https://en.racelogic.support//VBOX_Indoor_Positioning_System_(VIPS)/VIPS_User_Guide/01_-_VIPS_Introduction
• A minimum of 6 and maximum of 250 beacons can
be installed in each location allowing continuous
coverage of indoor spaces up to 3.5 km long.
• Simple one time configuration either by Bluetooth or
serial cable (RS232).
• 100 Hz update and low latency for high dynamic
applications.
• The rover automatically connects to the nearest
beacons for optimum accuracy.
• Each beacon is numbered for simple installation.
3
