Using an External IMU

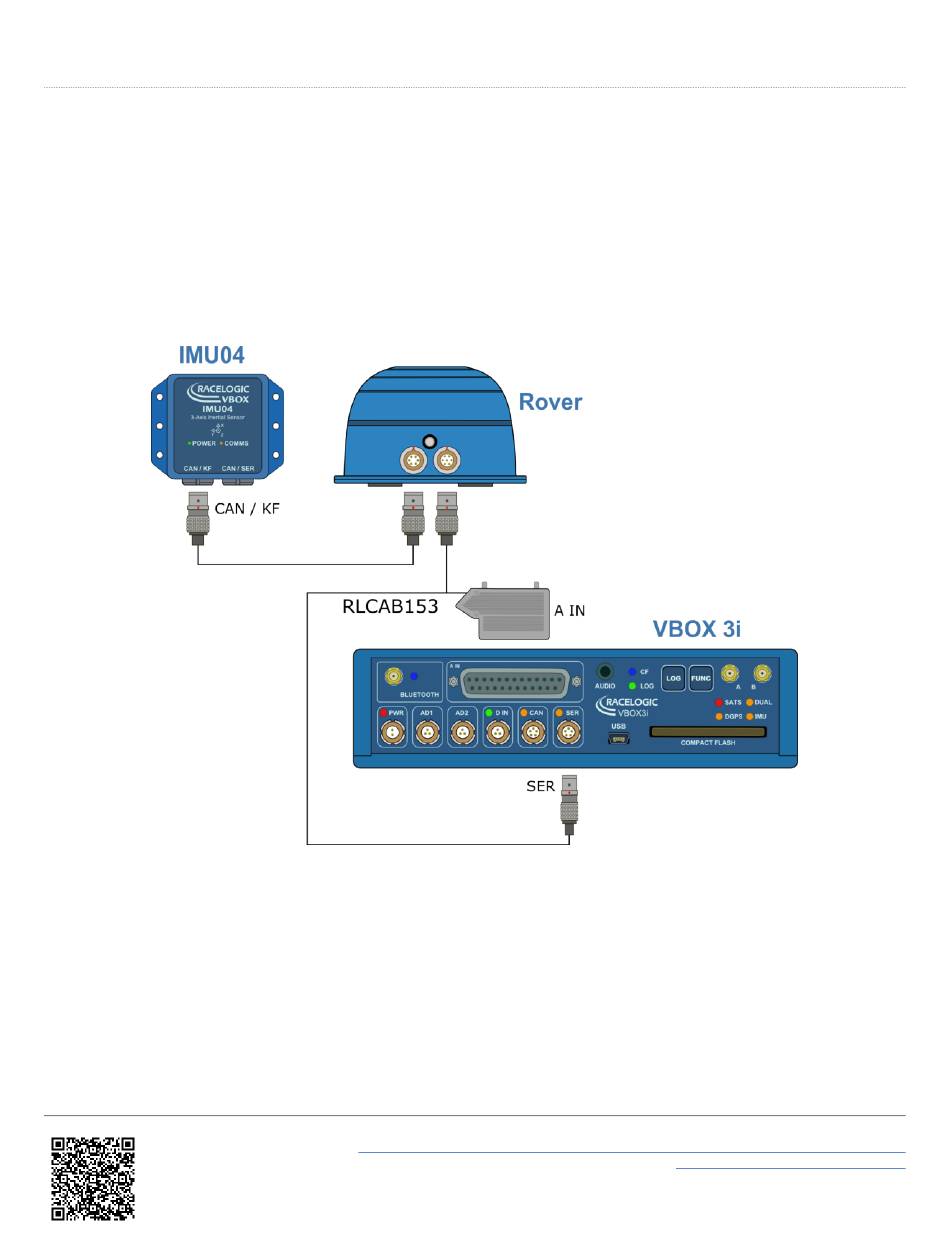

Connection between the Rover and VBOX 3i is via the supplied RLCAB153 cable.
• Insert the 7 way Lemo connector in to the right hand connector on the Rover.
• Connect the 25 way connector to the A IN port on the VBOX 3i.
• Connect the 5 way Lemo connector to the SER port on the VBOX 3i.
• Insert the 6 way Lemo connector in to the left hand connector on the Rover.
• Insert the other end of the cable in to the CAN / KF port on the IMU04.
