- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLTF1534, PLTF1734, PLTF1934 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
SCREEN ADJUSTMENTS ............18 STANDBY FEATURE ..............21 TROUBLE SHOOTING ..............22 RECYCLING INFORMATION .............23 APPENDIX ..................24 SPECIFICATIONS : ProLite TF1534MC-B7X .......24 SPECIFICATIONS : ProLite TF1734MC-B7X .......25 SPECIFICATIONS : ProLite TF1934MC-B7X .......26 DIMENSIONS : ProLite TF1534MC ..........27 DIMENSIONS : ProLite TF1734MC ..........27 DIMENSIONS : ProLite TF1934MC ..........27... -
Page 5: For Your Safety
OPERATE UNDER THE SPECIFIED POWER SUPPLY Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock. CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fire or electric shock. DO NOT DISASSEMBLE THE AC ADAPTER Disassembling the AC Adapter may expose you to the danger of fire or electric shock. PROTECT THE CABLES Do not pull or bend the AC adapter, the power cable and signal cable. - Page 6 In case the monitor will be installed inside a kiosk or any other equipment, please make sure enough ventilation is available to avoid overheating of the monitor. Contact the iiyama service center in case you need advice. DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor

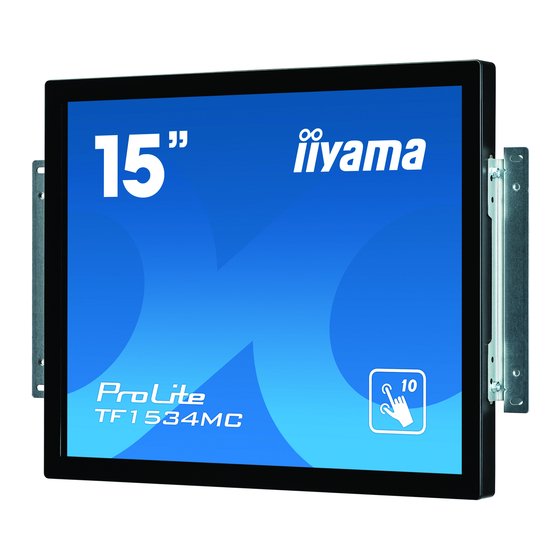

BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1024 × 768 : ProLite TF1534MC Supports Resolutions up to 1280 × 1024 : ProLite TF1734MC / ProLite TF1934MC High Contrast 700:1 (Typical) / Brightness 330cd/m (Typical: with Touch panel) : ProLite TF1534MC ... -
Page 9: Checking The Contents Of The Package
3. An approved power cable greater or equal to H05VVF, 3G, 0.75mm must be used. < Mounting Kits > Mounting Kits are available as an option. If you need to incorporate a monitor into any enclosure or device, please contact the iiyama service center. SPECIAL NOTES ON THE TOUCH PANEL CAUTION Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch. -
Page 10: Installation
INSTALLATION Before installation, make sure the wall, ceiling or desktop arm is strong enough to WARNING hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L” length is 8mm(TF1534MC) or 6mm(TF1734MC/TF1934MC) to fasten the monitor. -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control Touch V01* <Front> <Back> Menu Button (MENU)* Scroll Up / Brightness Button ( )* Scroll Down / Contrast Button ( )* Select Button (SELECT)* Power Switch ( )* Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. USB Connector (USB) Remote Control Touch V01 Connector (RJ11) VGA Connector (VGA) -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 13 [Fitting and Removal of Cable Cover] Step 1 Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. < Removal > Cable Cover Remove the cable cover as shown in Step1.
-
Page 14: Computer Setting
Change to the desired signal timing listed on page 28: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. - Page 15 Touch Input Settings in Dual Screen Mode Connect the primary monitor to the computer first. Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup. The following message will appear on the screen. Please follow the instructions. After setting , connect a second monitor and perform the setup as in The monitors are recognized as dual-display, and touch operation cannot be performed on NOTE two monitors at the same time.
-
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. - Page 17 Direct LOCK MODE: Simultaneously press the MENU button and the button when an image is displayed through VGA, HDMI or DisplayPort. * The OSD menu is not displayed when the OSD is locked. Press the MENU button and the button simultaneously again.
-
Page 18: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Option Picture Advanced Contrast Brightness H-Position V-Position Phase Clock Auto Adjust Adjustment Item Problem / Option Button to Press Too dull Direct Contrast Too intense Too dark Direct Brightness* Too bright Too left H-Position* Too right Too low V-Position* Too high... - Page 19 Advanced Picture Advanced Option Color Temp User Green Blue Sharpness Adjustment Item Problem / Option Button to Press 5500 Greenish white 6500 Reddish white 7500 Yellowish white Color Temp 9300 Bluish white Too weak Green User Too strong Blue You can change the picture quality from 0 to 100 (soft to sharp).
- Page 20 Option Picture Advanced OSD Timeout OSD Position User OSD H-Position OSD V-Position Normal Touch Switch Adjustment Item Problem / Option Button to Press You can set the OSD display duration time OSD Timeout between 5 and 60 seconds. You can set the OSD position. User (Upper left / Lower left / Upper right / Lower right / OSD Position Center)
- Page 21 Option Picture Advanced Option Reset Language English Source Select DisplayMode Factory Adjustment Item Problem / Option Button to Press Return to Menu. Reset Factory-preset data is restored. Español Spanish English English Japanese Français French Language 繁中 Deutsch German Traditional Chinese Simplified Chinese 中...
-
Page 22: Screen Adjustments
The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. ProLite TF1534MC is designed to provide the best performance at resolution of 1024 × 768, but can not provide the best at resolutions of less than 1024 × 768 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1024 × 768 in normal use. - Page 23 Perform the auto adjustment. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fit to the display area. 1) Adjust the H-Position so that the left side of the picture frame will move to the left edge of the display area. 2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock.
- Page 24 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. In case the strong flicker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. Adjust the H-Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Clock and Phase adjustments.
-
Page 25: Standby Feature
STANDBY FEATURE When your computer is not in use, the standby feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check The AC Adapter is firmly seated in the connector. -
Page 27: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. RECYCLING INFORMATION 23... -
Page 28: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite TF1534MC-B7X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface finish Anti fingerprint coating Size Category 15" Panel technology Diagonal: 15" (38cm) Size Pixel pitch 0.297mm H × 0.297mm V (Typical: without Touch panel), 370cd/m Brightness (Typical: with Touch panel) Panel 330cd/m 700 : 1 (Typical) -
Page 29: Specifications : Prolite Tf1734Mc-B7X
SPECIFICATIONS : ProLite TF1734MC-B7X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface finish Anti fingerprint coating Size Category 17" Panel technology Diagonal: 17" (43cm) Size Pixel pitch 0.264mm H × 0.264mm V (Typical: without Touch panel), 350cd/m Brightness (Typical: with Touch panel) Panel 315cd/m 1000 : 1 (Typical) Contrast ratio Horizontal : 170 degrees, Vertical: 160 degrees (Typical) Viewable angle 5ms (Black, White, Black Typical) -
Page 30: Specifications : Prolite Tf1934Mc-B7X
SPECIFICATIONS : ProLite TF1934MC-B7X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface finish Anti fingerprint coating Size Category 19" Panel technology Diagonal: 19" (48cm) Size Pixel pitch 0.294mm H × 0.294mm V (Typical: without Touch panel), 350cd/m Brightness (Typical: with Touch panel) Panel 315cd/m 1000 : 1 (Typical) Contrast ratio Horizontal: 178 degrees, Vertical: 178 degrees (Typical) Viewable angle 14ms (Gray to Gray) -
Page 31: Dimensions : Prolite Tf1534Mc
DIMENSIONS : ProLite TF1534MC 337.5mm/13.3” 44.5mm/1.7” 305.0mm/12.0” DIMENSIONS : ProLite TF1734MC 369.0mm/14.5” 47.5mm/1.9” 339.0mm/13.3” DIMENSIONS : ProLite TF1934MC 416.0mm/16.4” 46.5mm/1.8” 377.5mm/14.9” APPENDIX 27... -
Page 32: Compliant Timing
800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz 1280 × 1024 79.976kHz 75.025Hz 135.000MHz NOTE * Not compliant to ProLite TF1534MC. 28 APPENDIX M134A24...
